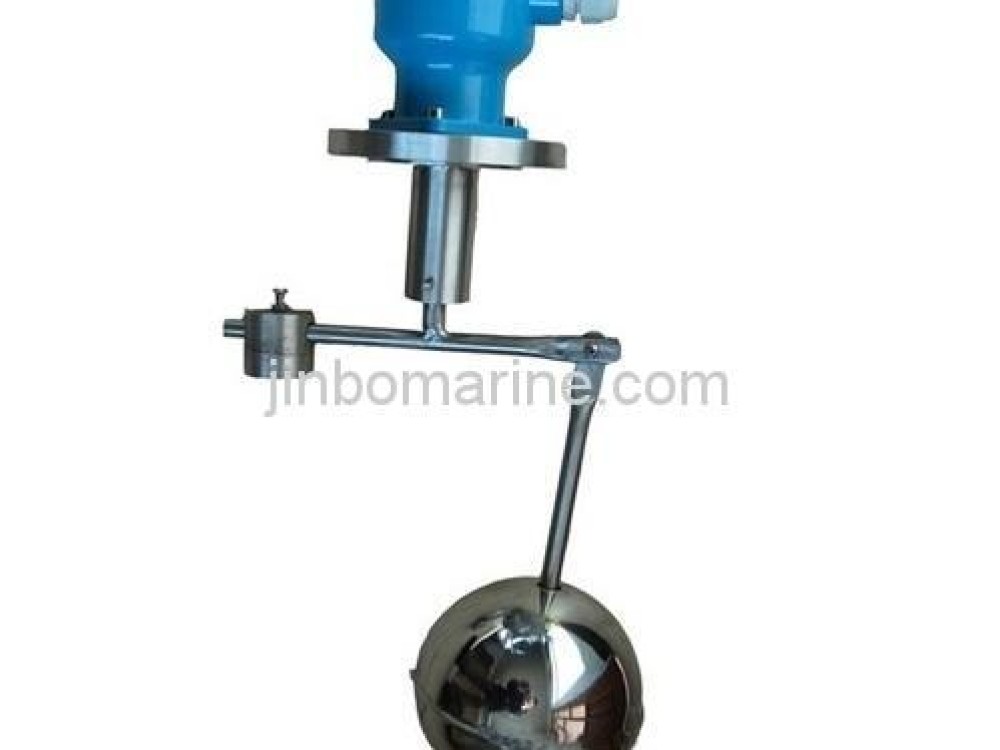

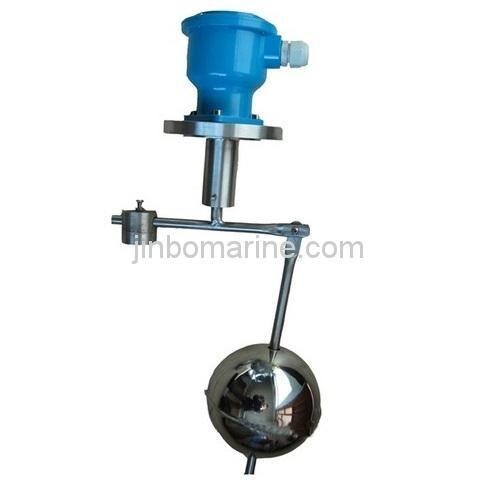

Marine Level Switch UQK-03

Marine Level Switch UQK-03 is installed on the top of the tank.

Control range: 8-1000mm

Nominal pressure: 1.0Mpa for UQK-03-C, 4.0Mpa for UQK-03-CB

Regulation type: adjustable

Flange material: Stainless Steel(UQK-03-C) or Bronze (UQK-03-CB)

Float material: stainless steel

Medium temperature: not over 150 degree centigrade

Power supply: AC 220V, 1.5A or 110V, 2.5A DC 240V,0.5A or 24V, 2.5A

Protection: IP66
