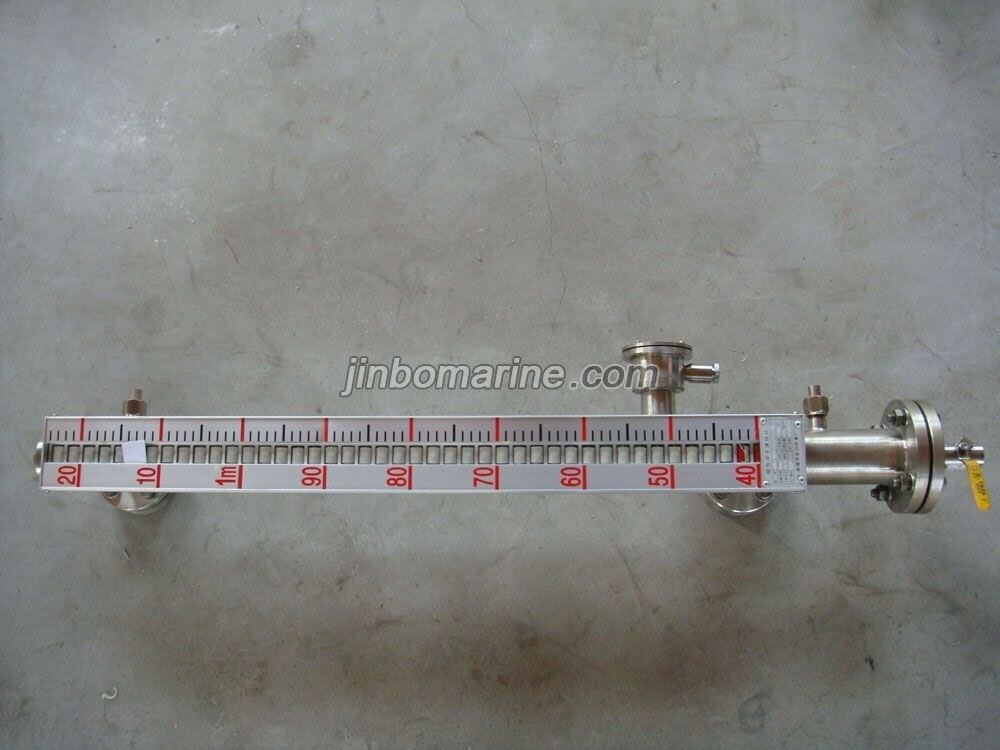

Marine Magnetic Level Gauge

Magnetic Level Gauge is used to measure and control the level of liquid in the tank of the ships, petroleum equipment, chemical equipment and other industrial equipment.It is with float ball, and there are three types, normal type, jacket type and top mounting type.

Accuracy:+-20mm

Measurement Range:500~8000mm

Medium: Fresh Water, Fuel Oil, Lubrication Oil, Diesel Oil etc.

Specific Gravity of Medium: >=0.6g/cm3

Working Pressure:1.0Mpa, 1.6Mpa, 2.5Mpa

Medium Temperature:<=200 degree centigrade

Medium Viscosity: <=0.02Pa.s

Flange Standard: DN20 as per GB, JIS, ANSI, DIN

Material: Stainless Steel

Drain Type: Drain Ball Valve or Drain Plug

Alarm Switch: 220V, 380V,0.5A
