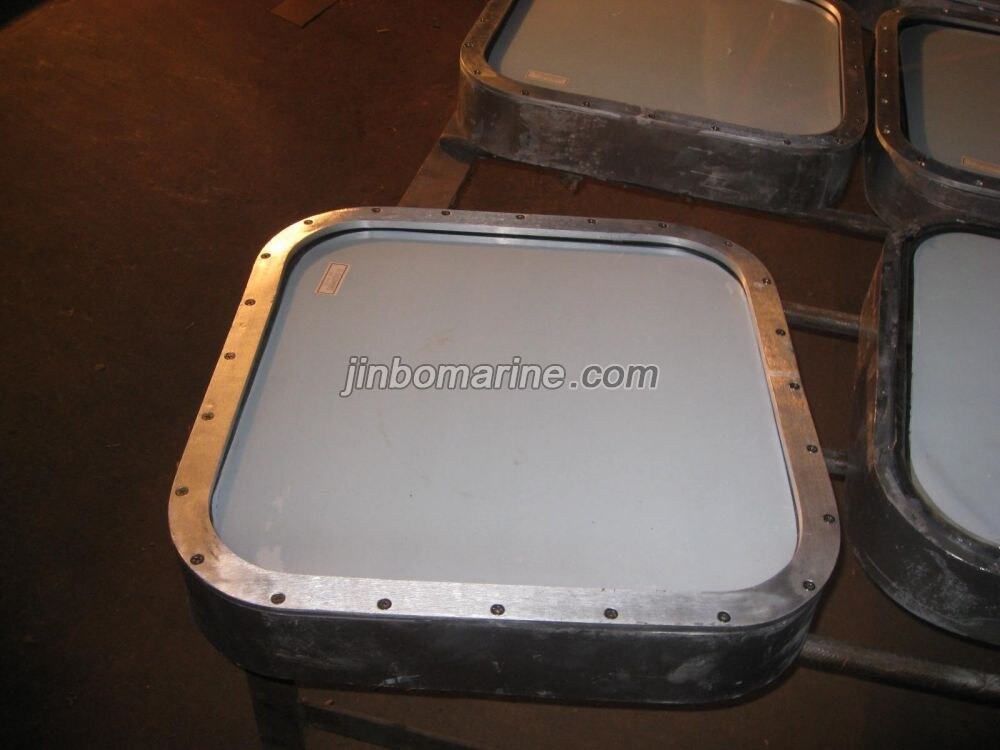

Marine Steel Fixed Window
- Category:Marine Window
- Material:Steel
- Standards:CB/T3226-1995
- Certificate:CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
China Marine Steel Fixed Window:
Standard: CB/T3226-1995
It is installed in the wheel houses, bridges, enclosed spaces which is used for observation and operation of various types of ships and marine structures.

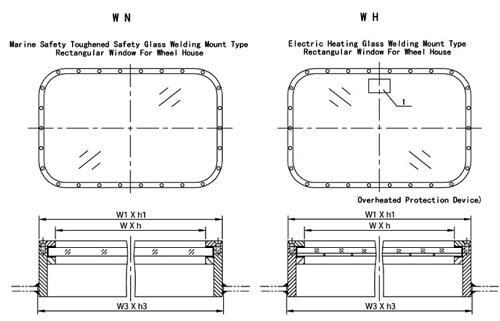

1.Types of non-opening windows:
WH--Welded fixed rectangular window with an electric heated glass pane
WN-Welded fixed rectangular window with a toughened glass pane
2.Main Size List(mm):
| Nominal Size | Frame | Size of opening | Glass Thickness | Weight (kgs) | ||||
| WXH | W1XH1 | W2XH2 | W3XH3 | r | WH | WN | WH | WN |
| 800X630 | 848X678 | 930X760 | 852x682 | 126 | 12 | 15 | 41.3 | 41.8 |
| 800X710 | 848X758 | 930X840 | 852x762 | 12 | 15 | 44.2 | 44.8 | |
| 900X630 | 948X678 | 1030X760 | 952x682 | 12 | 17 | 45.1 | 46.9 | |
| 900X710 | 948X758 | 1030X840 | 952x762 | 12 | 17 | 48.5 | 50.5 | |
| 900X800 | 948X848 | 1030X930 | 952x852 | 12 | 17 | 52.4 | 54.6 | |
| 1200X630 | 1248X378 | 1330X760 | 1252x682 | 15 | 20 | 60.9 | 63.3 | |
| 1200X710 | 1248X758 | 1330X840 | 1252x762 | 15 | 20 | 66.6 | 69.2 | |
| 1200X800 | 1248X848 | 1330X930 | 1252x852 | 15 | 20 | 72.2 | 75.2 | |
| 1500X710 | 1548X758 | 1630X840 | 1552x762 | 15 | 20 | 79.8 | 83.1 | |
| 1500X800 | 1548X848 | 1630X930 | 1552x852 | 15 | 20 | 86.4 | 90.1 | |
| 1800X710 | 1848X758 | 1930X840 | 1852x762 | 15 | 20 | 93.1 | 97.1 | |
| 1800X800 | 1848X848 | 1930X930 | 1852x852 | 15 | 20 | 100.4 | 104.8 | |
| 1800X900 | 1848X948 | 1930X1030 | 1852x952 | 15 | 20 | 108.6 | 113.6 | |
*The size is in the list is just for reference, it is can be customerized according to the actual situation of the vessel.
3.Mounting of the heated glass pane for fixed rectangular window for wheel house should conform to the requirements of ISO3434, power loading and parameters necessary for the glass pane as below.
|
Electrical Supply |
Overheating protection device |
Minimum power loading w/dw2 |
||||
|
Current |
Voltage (V) |
Frequency (HZ) |
7 |
12 |
17 |
|
|
Code |
||||||
|
DC |
24 |
- |
G |
7G01 |
12G01 |
17G01 |
|
S |
7S01 |
12S01 |
17S01 |
|||
|
110 |
- |
G |
7G02 |
12G02 |
17G02 |
|
|
S |
7S02 |
12S02 |
17S02 |
|||
|
220 |
- |
G |
7G03 |
12G03 |
17G03 |
|
|
S |
7S03 |
12S03 |
17S03 |
|||
|
G---group regulator, S---single regulator |
||||||
