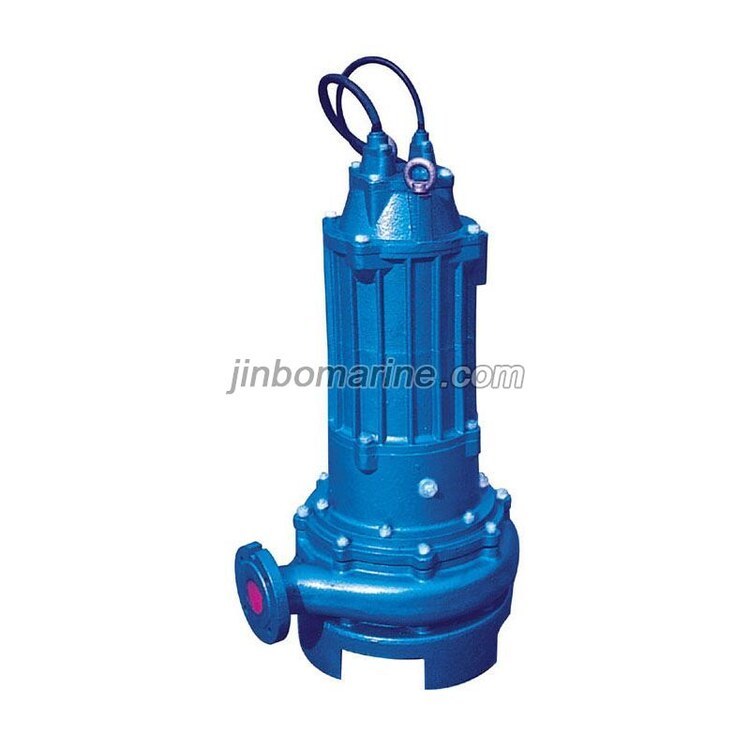

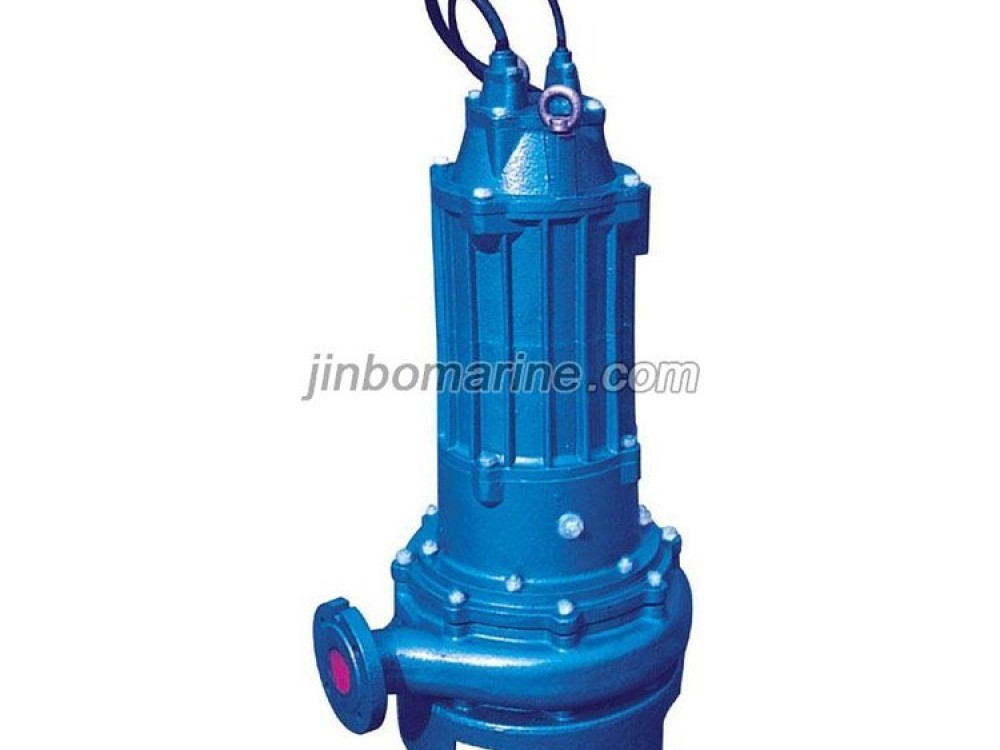

Marine submersible pump CQX Series

Request a Quote Not what you need, please send your RFQs via Email.

Details

China Marine submersible pump CQX Series:

CQX Marine submersible pump has small volume, light weight, easy to move and easy to install.The utility model is mainly used for emergency rescue of ships and elimination of ship bilge water.

CQX Series marine submersible pump

Main Technical Data

Model Capacity
m³/h
Head
m
Rev speed
r/min
Motor power
KW
CQX30-20-3 30 20 2900 3
CQX40-15-3 40 15 2900 3
CQX100-20-15 100 20 1450 15
CQX200-20-22 200 20 1450 22
CQX315-10-15 315 10 1450 15
CQX630-15-280 630 15 1450 45

Packing and Delivery:

1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.

How to Order?

1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
