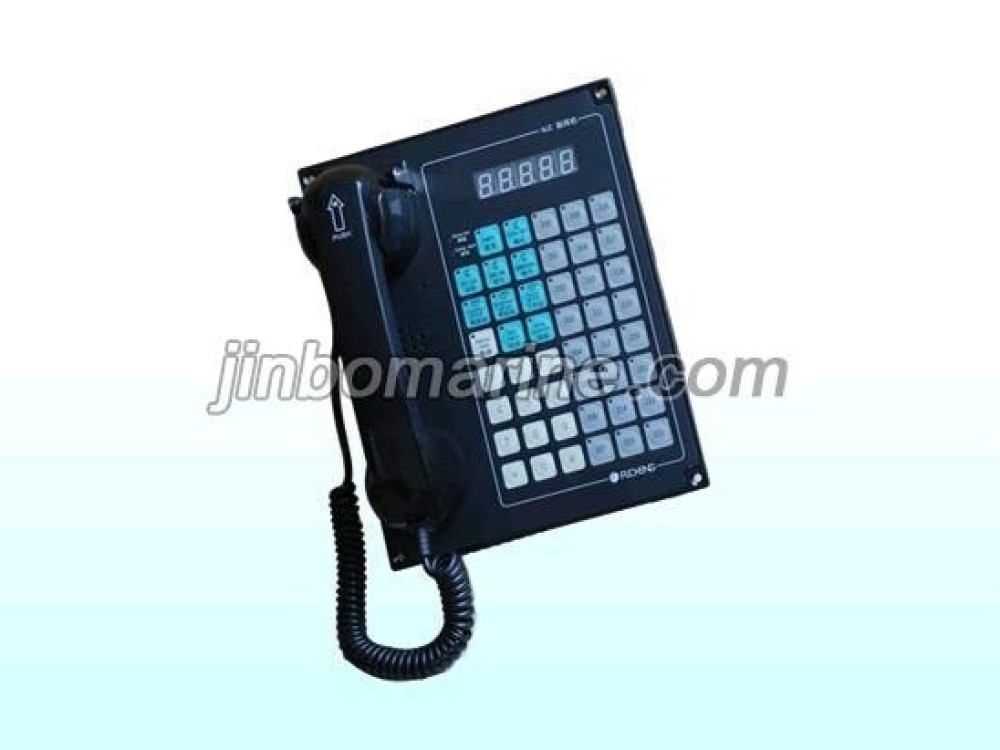

Marine Telephone Integrated Communication Main Station

Mounted on WHC, and used for as auto. telephone and Public address / Talk-back main control station, etc.

Handset transceiver: duplex voice communication.

Built-in MIC: used for handsfree conversation. Flexibility MIC is suitable.

External loudspeaker: volume override when used for alarm, paging and talk back. And reception of alarm signals with top priority. When used for listening music, the volume can be adjusted. The external loudspeaker model is YD-3Q.

Display the caller number, special features and programming state.

Terminal key: Extension short key and loudspeaker groups key. Press single key for operating.

Special function keys.

Digit keys 0~9

Port&starboard MIC box can be connected.

Output power: ≥3W Sound level: ≥84dB

Frequency response: 300~3400Hz

Alarm sound level: ≥84Db

Flush mounting type or wall mounting type. And the colour for flush type panel is dull black, the wall type panel is off-white.
