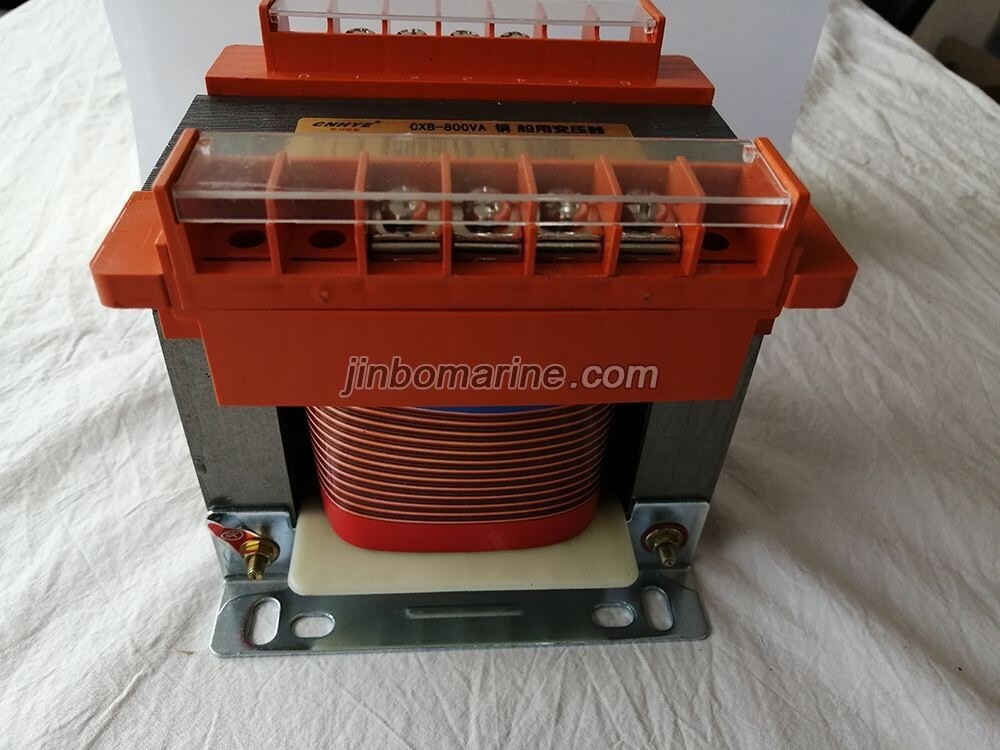

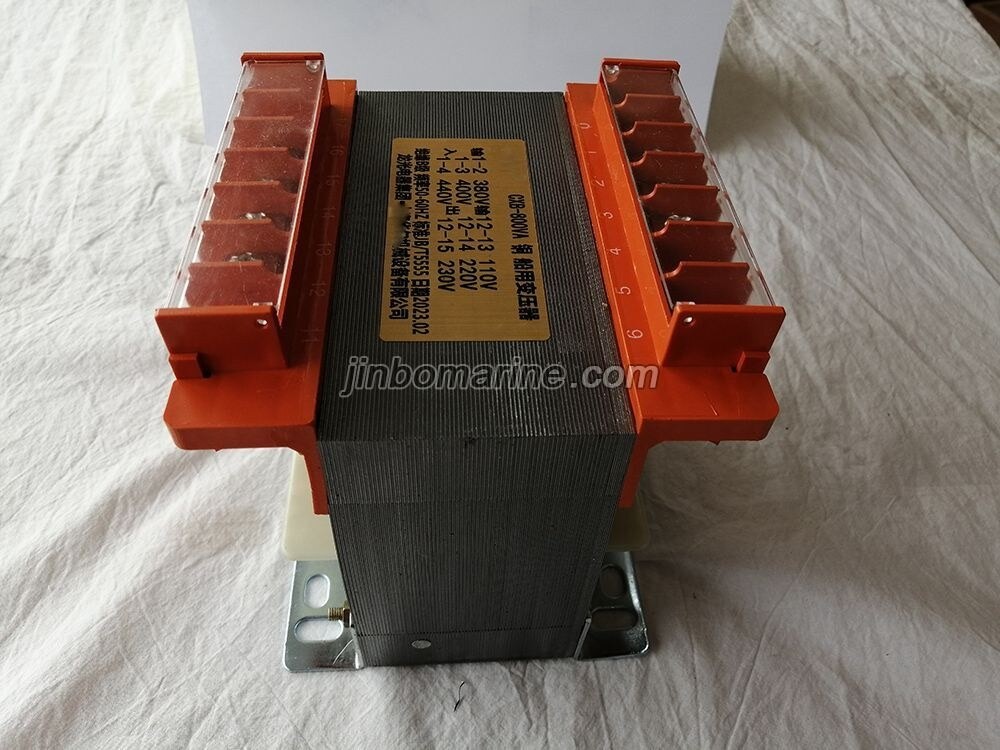

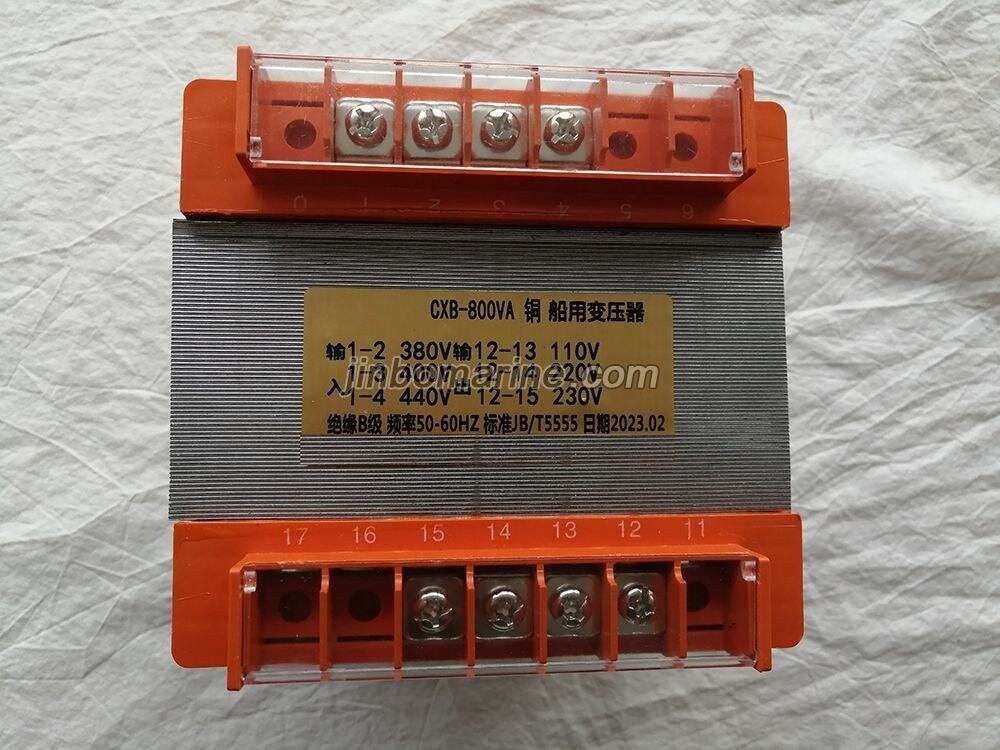

Marine Transformer CXB-800VA
- Category:Marine Transformers
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Description:
CXB series marine transformers (hereinafter referred to as transformers) are applicable to circuits with AC voltage of 50~60Hz to 500V, and are usually used as power supply for local lighting and indicator lights of marine control appliances.
Techincal data:
| Model | Size | Mounting hole spacing |
Install hole KXJ |
|||
| B max | D max | E max | A | C | ||
| CXB-50VA | 78 | 70 | 90 | 55±0.4 | 50±1 | 5×12 |
| CXB-10OVA | 96 | 82 | 105 | 85±0.4 | 60±1 | 6×12 |
| CXB-150VA | 103 | 93 | 108 | 75±0.4 | 70±1 | 6×12 |
| CXB-20OVA | 103 | 98 | 108 | 75±0.4 | 78±1 | 9×11.5 |
| CXB-250VA | 103 | 103 | 108 | 75±0.4 | 85±1 | 9×11.5 |
| CXB-300VA | 120 | 110 | 125 | 90±0.4 | 85±1 | 9×11.5 |
| CXB—400VA | 132 | 120 | 137 | 100±0.4 | 90±1 | 9×11.5 |
| CXB-500VA | 132 | 126 | 137 | 100±0.4 | 97±1 | 9×11.5 |
| CXB-700VA | 150 | 135 | 155 | 120±0.4 | 105+2 | 9×11.5 |
| CXB-1000VA | 150 | 145 | 155 | 120±0.4 | 115±2 | 9×11.5 |
| CXB-1500VA | 170 | 185 | 185 | 140±0.4 | 135±2 | 9×11.5 |
| CXB-2000TA | 175 | 215 | 195 | 145±0.4 | 155±2 | 9×11.5 |
