Marine Water-chiller System

  • Category:Water Treatment Equipment
  • Material:Stainless steel
  • Standards:i
  • Certificate:CCS, BV, ABS, GL,LR, NK
  • Packing Details:Standard Export Packaging
  • Delivery Time:20 days
  • Supply Ability:10 sets/month
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.

Details

China Marine Water-chiller System:

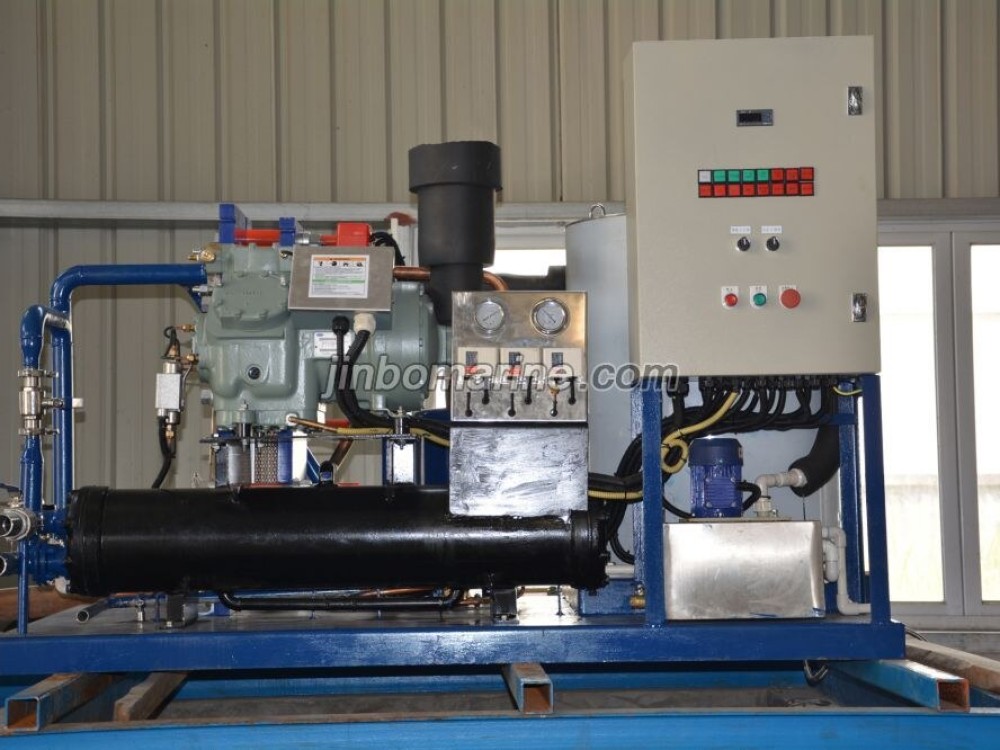

Marine water- chiller units mainly consist of compressor, condenser and dry evaporator, etc. With the feature of new design, stable running and safety. It is ready to run only connect cooling pipe and power source after installation.

Aiming at big fishing boat, such as light seine vessel, triangulation net ship, mask cover ship, squid jigger, saury ship , tuna seine ship and so on. Adopting cold water system to retain freshness, which has quick cooling speed and keep the freshness of seafood.

Selection table for marine seawater-chiller unit
Model MWC-2 MWC-3 MWC-3 MWC-8 MWC-10 MWC-15 MWC-23
Cooling capacity 23.2 35 61.7 81.3 104.6 151 232
Refrigent R22(R404)
Power Supply 380V 3PH 50HZ
Compressor Full Hermetic Semi-hermetic Screw
Condenser Horizontal shell and tube
Dry evaporator Horizontal shell and tube
Cooling water
flow volume
4 6 10 14 18 26 80
Protection Equipment High pressure, low pressure, oil pressur, water cutoff,
anti-frezzing,phase missing, overload, safety valve
