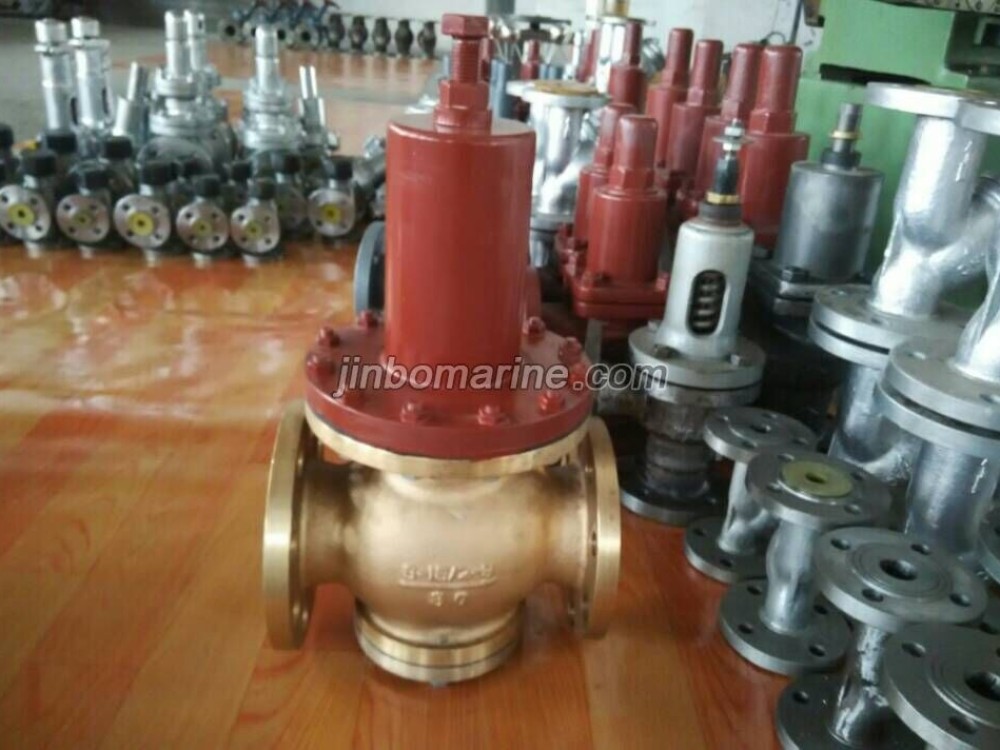

Marine Water Pressure Reducing Valve CB/T624-1995 Picture

Marine Water Pressure Reducing Valve CB/T624-1995

Category:CB Marine Pressure Reducing Valve
Material:Bronze
Standards:CB/T624-1995
Certificate:CCS, BV, ABS, GL,LR,DNV, KR, IRS, RINA
Packing Details:Plywood Case
Fob Price:Get Latest Price Now
Place of Origin:China

Request a Quote Not what you need, please send your RFQs via Email.

Details

China Marine Water Pressure Reducing Valve CB/T624-1995:

Marine Water Pressure Reducing Valve CB/T624-1995 is used on the marine fresh water or sea water pipe system to keep the outlet pressure stable. Flange can be manufactured as per GB569, GB2501, JIS,ANSI.

Standard: CB/T824-1995, CBM1079-81

Technicial Data:

Nominal Diameter

Max Flow Rate Omax

Inlet Pressure P1

Outlet Pressure P2

mm m3/h Mpa Mpa

15 8 0.8~1.6 0.2~0.8

20 9 0.8~1.6
0.2~0.8

25 10 0.8~1.6
0.2~0.8

32 11 0.8~1.6
0.2~0.8

40 18 0.8~1.6
0.2~0.8

50 28 0.8~1.6
0.2~0.8

65 48 0.8~1.6
0.2~0.8

80 72 0.8~1.6
0.2~0.8

Main Parts & Material:

Body-ZCuSn5Pb5Zn5

Bonnet-ZG230-450

Disc-HSn62-1

Stem-QA19-2

Spring-60Si2MnA

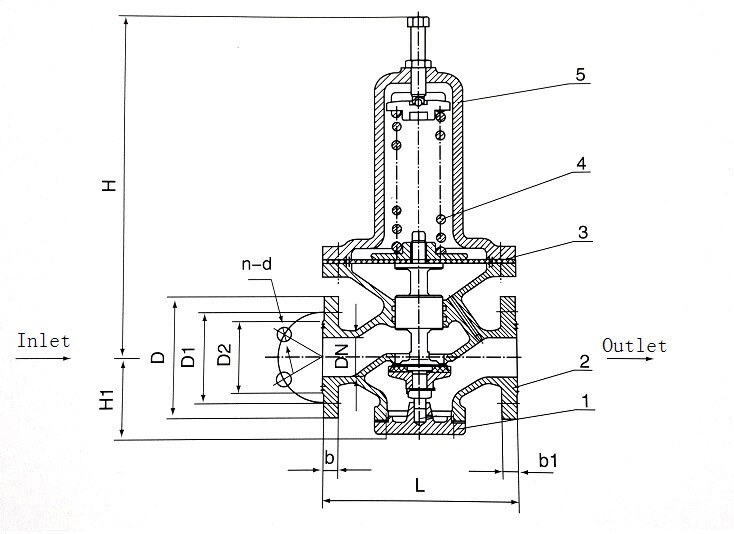

Type A Size List (Flange as per GB569):

nominal diameter	Structure Dimension			Thickness δ	Inlet flange					bolt		Outlet flange					bolt		weight (Kg)


	L	H	H1		D	D1	D2	d	b	n个	Th.	D3	D4	D5	d1	b1	n	Th.
32	190	320	72	5	115	83	64	15	13	6	M14	115	83	64	15	13	6	M14	10.7
40	200	325	79	5	125	93	74	15	14	6	M14	125	93	74	15	14	6	M14	12.9
50	210	370	87	5	135	103	84	15	14	6	M14	135	103	84	15	14	6	M14	17.3
65	240	420	93	6	170	132	110	17	17	8	M16	155	123	104	15	14	6	M14	24.2
80	260	465	110	6	185	147	126	17	19	8	M16	170	138	118	15	14	8	M14	30.3

Type AS Size List (Flange as per GB2501):

nominal diameter	Structure Dimension			Thickness δ	Inlet flange					bolt		weight (Kg)


	L	H	H1		D	D1	D2	d	b	n	Th.
32	190	320	72	5	140	100	78	18	15	4	M16	11.2
40	200	325	79	5	150	110	88	18	16	4	M16	13.4
50	210	370	87	5	165	125	102	18	17	4	M16	17.8
65	240	420	93	6	185	145	122	18	17	4	M16	24.7
80	260	465	110	6	200	160	133	18	19	8	M16	30.8
