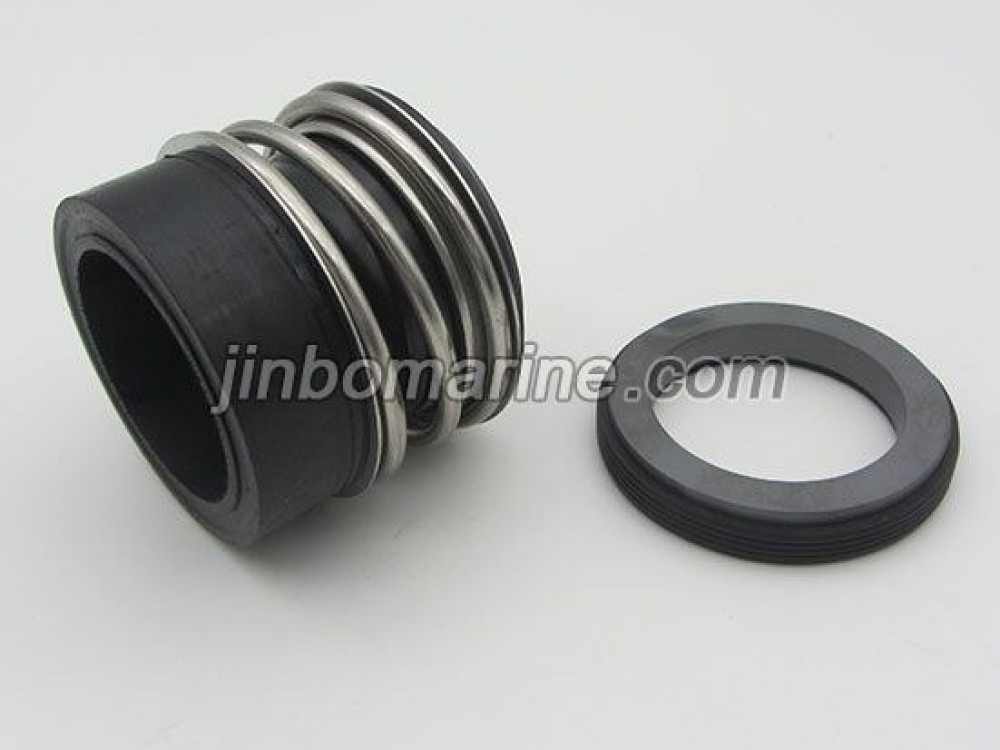

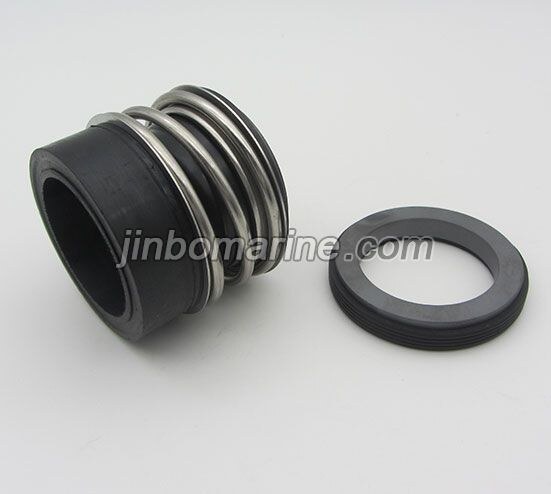

Mechanical seal for marine CDLR series pump

Single end, non - balanced seal, rubber bellows
Work scope:
Specification: 10 ~ 110 mm
Pressure: 1.2 Mpa or less
Temperature: - 20 ℃ ~ 120 ℃
Linear velocity: ≤10m/s
Axial cross momentum: ±0.5mm
Seal face: graphite, silicon carbide, tungsten carbide, alumina
Auxiliary seal: nitrile rubber, fluorine rubber, ethylene rubber, silicone rubber, PTFE
Metal components: stainless steel
