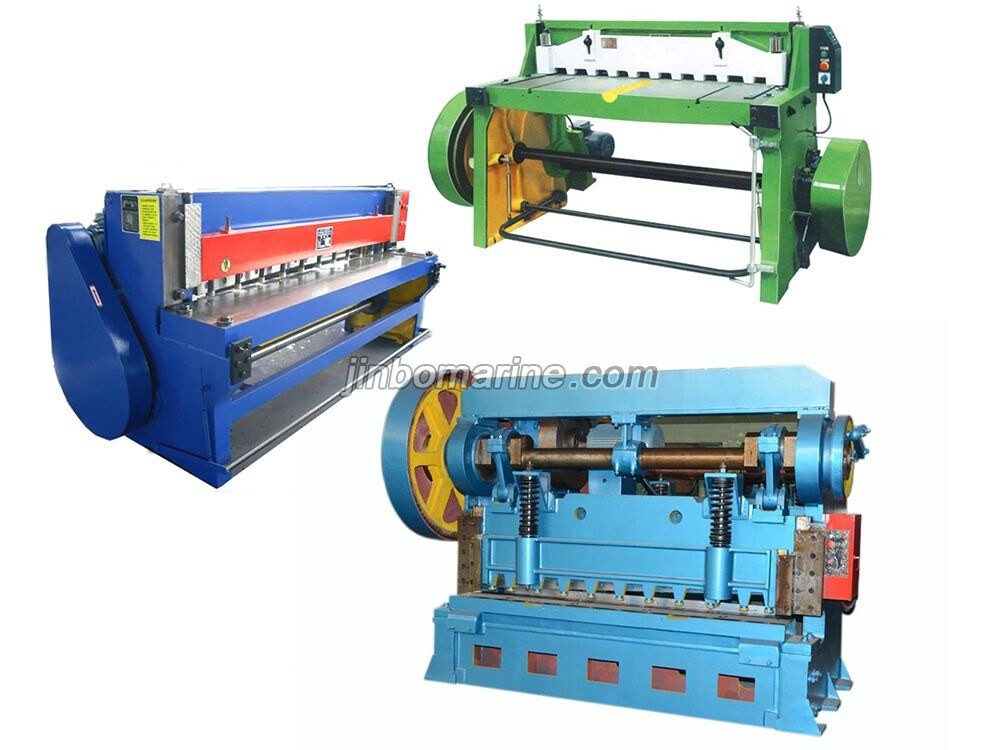

Mechanical Shearing Machine
Mechanical gate mode, deep throat design,and overload protection device. It has got the patent of steel construction.The sheared metal sheet can be used directly without any other processing. This mechanical shearing machine can be operated through turnkey clutch and foot switch, which can be controlled in both single and continuous cutting way. Besides,this mechanical shear is of easy access to operation and maintenance.
Equipped with cast iron and top transmission structure, also has a high tensile alloyed shearing blade, with emergency stop buttons as well as a protection fence to ensure the security.
Specifications of mechanical shearing machines
| Model | Max. Cutting | Max. Cutting | No. of | Shearing | Distance of | Power of main | Overall | Weight |
| Thickness | Width | Strokes | Angle | back gauge | motor | dimensions | (kg) | |
| (mm) | (mm) | (rpm) | (°) | (mm) | (kw) | (mm) | ||
| 3×1300 | 3 | 1300 | 20 | 2°25' | 350 | 3 | 2115×1500×1300 | 1600 |
| 3×1500 | 3 | 1500 | 20 | 2°25' | 350 | 3 | 2415×1500×1300 | 1800 |
| 4×2000 | 4 | 2000 | 20 | 1°30' | 500 | 5.5 | 3200×1300×1610 | 3300 |
| 4×2500 | 4 | 2500 | 20 | 1°30' | 500 | 5.5 | 3580×1300×1610 | 3800 |
| 4×3200 | 4 | 3200 | 20 | 1°30' | 600 | 7.5 | 4380×1900×1600 | 5200 |
| 4×4000 | 4 | 4000 | 20 | 1°30' | 600 | 7.5 | 4650×1820×1700 | 6000 |
| 6×2000 | 6 | 2000 | 24 | 2° | 500 | 7.5 | 3180×1765×1550 | 4500 |
| 8×2000 | 8 | 2000 | 24 | 2° | 500 | 11 | 3180×1765×1550 | 5000 |
| 6×2500 | 6 | 2500 | 24 | 2° | 500 | 7.5 | 3680×2200×2020 | 5400 |
| 6×3200 | 6 | 3200 | 20 | 1°45' | 650 | 7.5 | 4300×2250×2150 | 7500 |
| 8×2500 | 8 | 2500 | 20 | 2°30' | 650 | 11 | 3680×2250×2450 | 6500 |
| 13×2500 | 13 | 2500 | 30 | 3° | 700 | 15 | 3680×2330×2500 | 13300 |
| 16×2500 | 16 | 2500 | 30 | 3° | 700 | 22 | 3680×2800×2450 | 14500 |
| 20×2500 | 20 | 2500 | 25 | 3° | 750 | 22 | 3950×2800×2900 | 20000 |
