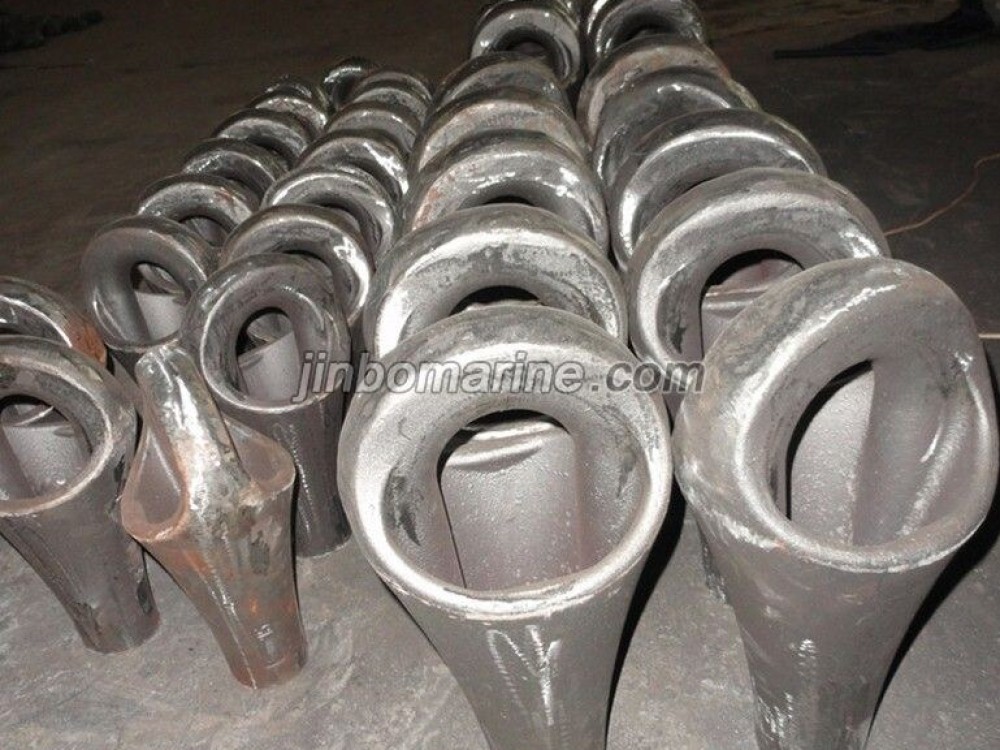

Merlion Socket

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Merlion Socket Specifictation

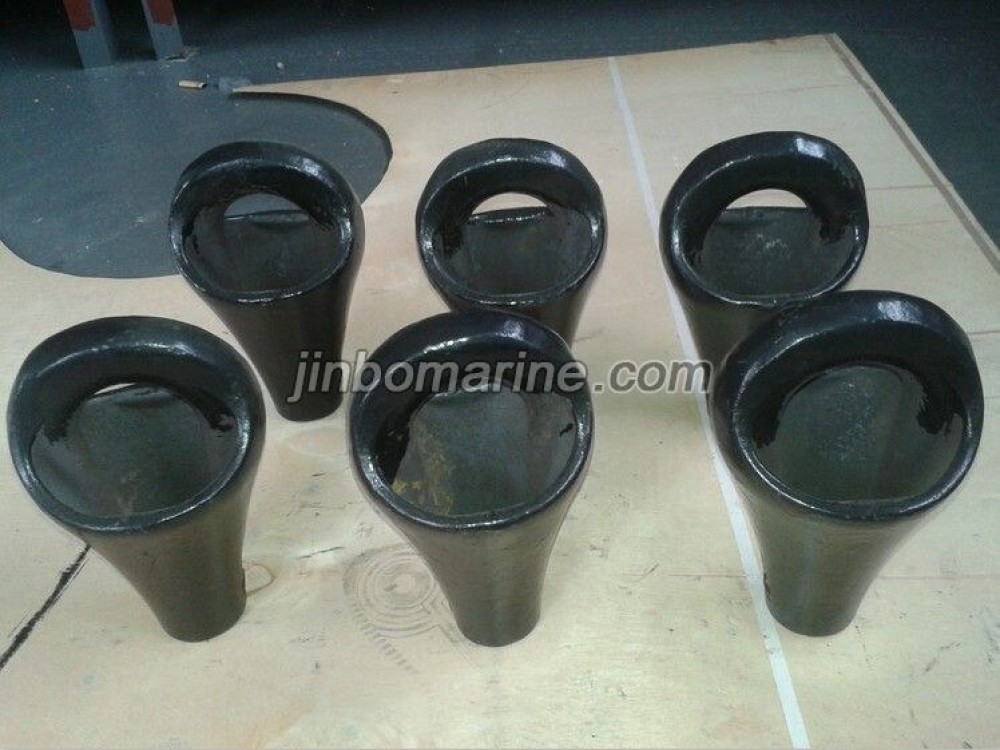

Merlion Socket is black painitng or ungalvnaized finish, please specify the size and finish when inquiry

No. Wire Rope Dia Size:mm
mm A B E F H I
1 10-11 69 48 12 12 24 12
2 12-13 79 56 15 14 25 14
3 14-15 91 64 17 16 29 16
4 16-17 103 70 19 18 31 18
5 18-19 114 84 21 19 38 20
6 20-21 129 84 23 21 42 22
7 22-24 140 100 26 23 44 26
8 25-27 158 100 28 25 48 29
9 28-30 171 120 31 27 56 31
10 31-33 190 120 32 29 58 35
11 34-36 203 142 36 31 64 37
12 37-39 225 142 39 35 68 40
13 40-42 242 166 43 37 70 43
14 43-45 265 166 47 41 72 47
15 46-48 288 166 49 43 80 51
17 56 340 220 60 54 90 59
