Moorfast Anchor

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Moorfast Anchor:

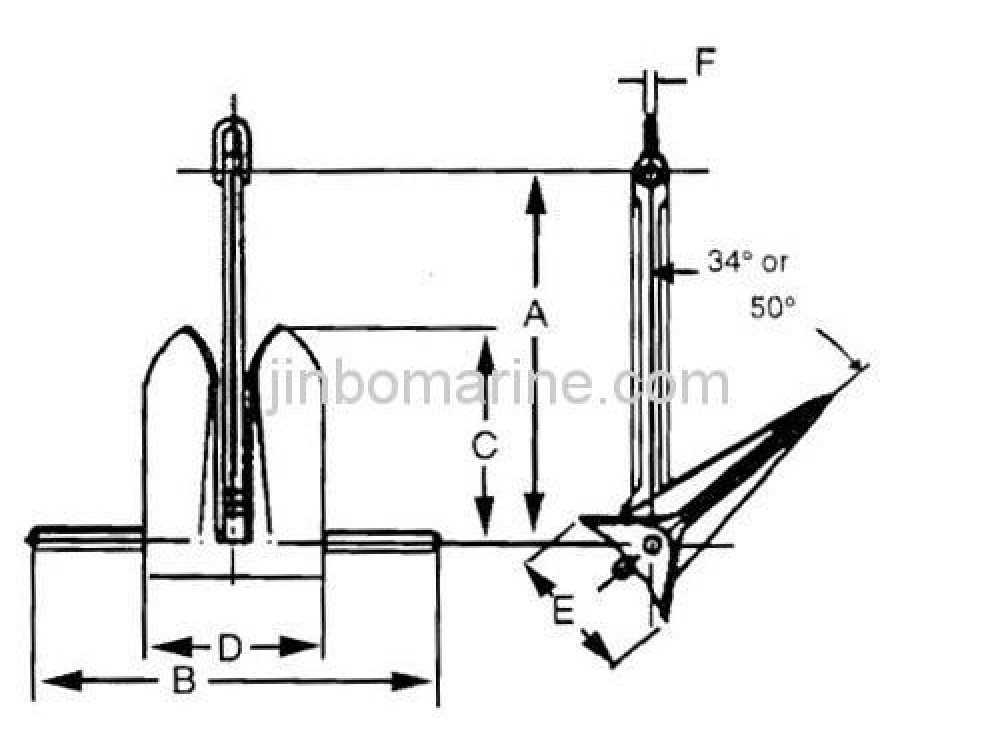

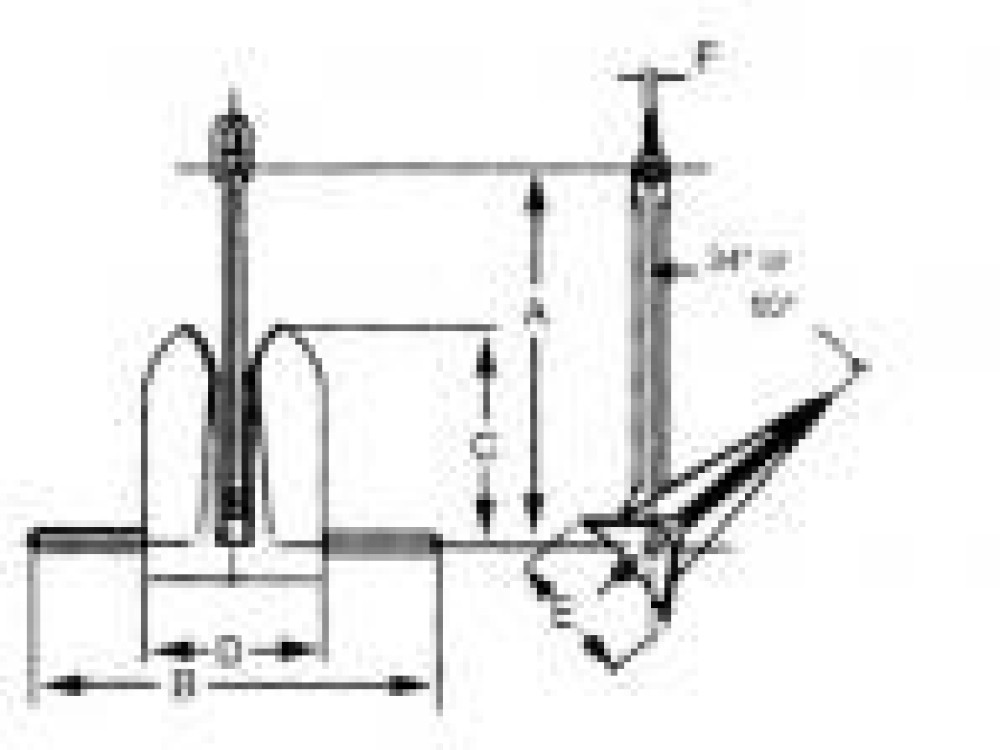

Anchor Weight A B C D E F Proof Test
1000 61 75 37 25 19 2 30000
3000 88 109 54 37 27 3 72500
6000 101 143 61 42 31 3 1/2 121300
8000 122 153 75 51 38 3 1/2 145000
1000 131 157 80 55 41 4 165600
12000 139 167 85 58 43 4 184700
14000 147 177 90 61 45 4 205000
16000 153 187 94 64 48 4 1/2 222700
20000 164 196 102 69 51 4 1/2 249400
30000 189 217 118 79 59 5 319400
40000 215 248 127 86 63 5 1/2 86000
50000 222 257 132 89 66 6 448300
60000 232 271 140 95 70 6 506200
70000 244 274 147 100 73 6 561400
80000 255 298 154 105 77 6 1/2 613300
90000 266 310 160 109 80 6 1/2 661200
100000 275 320 166 113 83 7 706400
