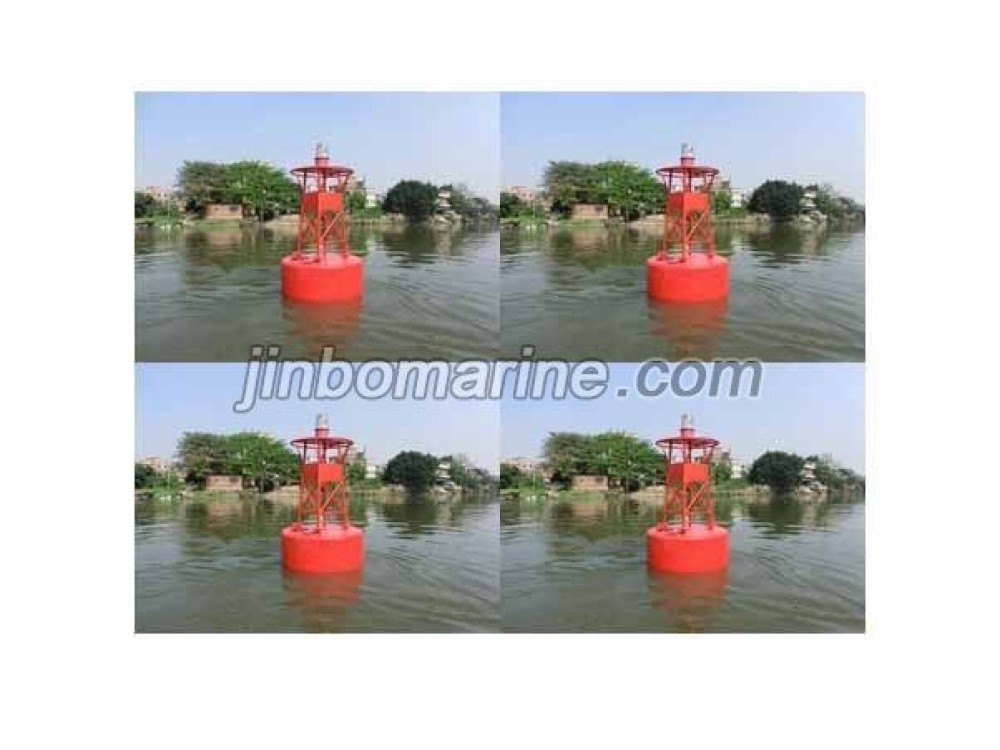

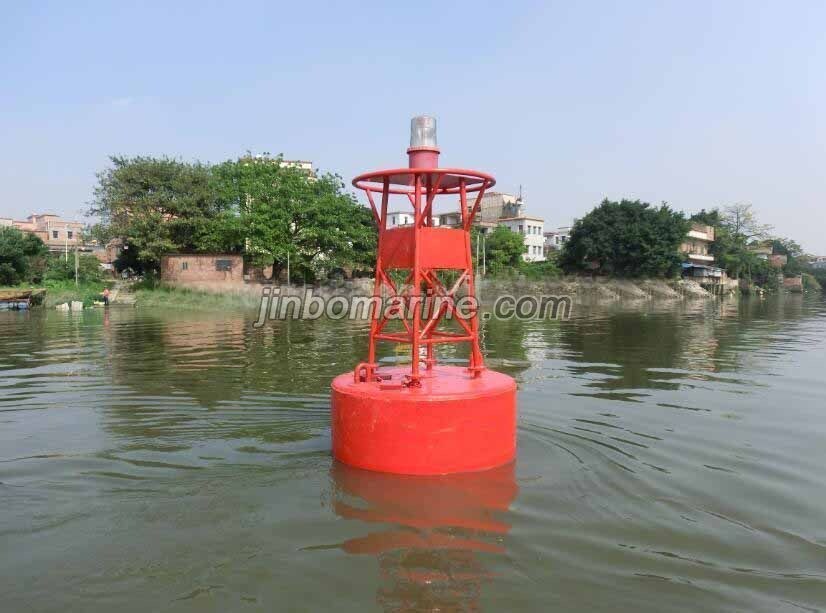

Navigation Buoy-Starboard Mark Buoy
- Category:Navigation Buoy
- Material:Marine steel
- Packing Details:Standard Export Packaging
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Area:
Inland river,lake,large reservoirs and other territorial waters with channel.
Function:
Located in the shallows, reefs, wrecks or other obstructions, Located in the shallows, reefs, wrecks and other obstructions ,close to the side of the side to ship fairway mark the boundaries of the channel.
| Specification | HF1.2 | Remark |
| Beacon light power | Solar cells, and 12 VDC or 6 VDC (optional) | Optional |
| Light quality |
On the left bank: green (white
light), single or more flash flash The right side: red, single or double flash flash |
|
| Range | 2-10Km (optional) | Optional |
| Remote telemetry |
Remote wireless remote telemetry
(with computer software installation) (optional) |
Optional |
| Synchronous flash |
GPS signal coordination and
synchronization of consistency or less 0.2 ms (optional) |
Optional |
| Diameter of Buoy (m) | 1.2 | |
| Material | ship plate | |
| Total Height(m) | 2.8 | |
| Height of Freeboard(m) | 0.45 | |
| Height of Lamp Standing Part(m) | 1.62 | |
| Max Swing Angle(°) | ≤15 | |
| Swing Cycle(s) | 3～5 | |
| Max Buoyancy(t) | 1 | |
| Total Weight(m) | 0.4 | |
| Embalmed | Paint spraing, scarifical andode | |
| Anchor Chain(mm) | 17.5 | |
| Sinker/Anchor block(t) | 0.5～1 | |
| Depth(m) | 3～15 |
