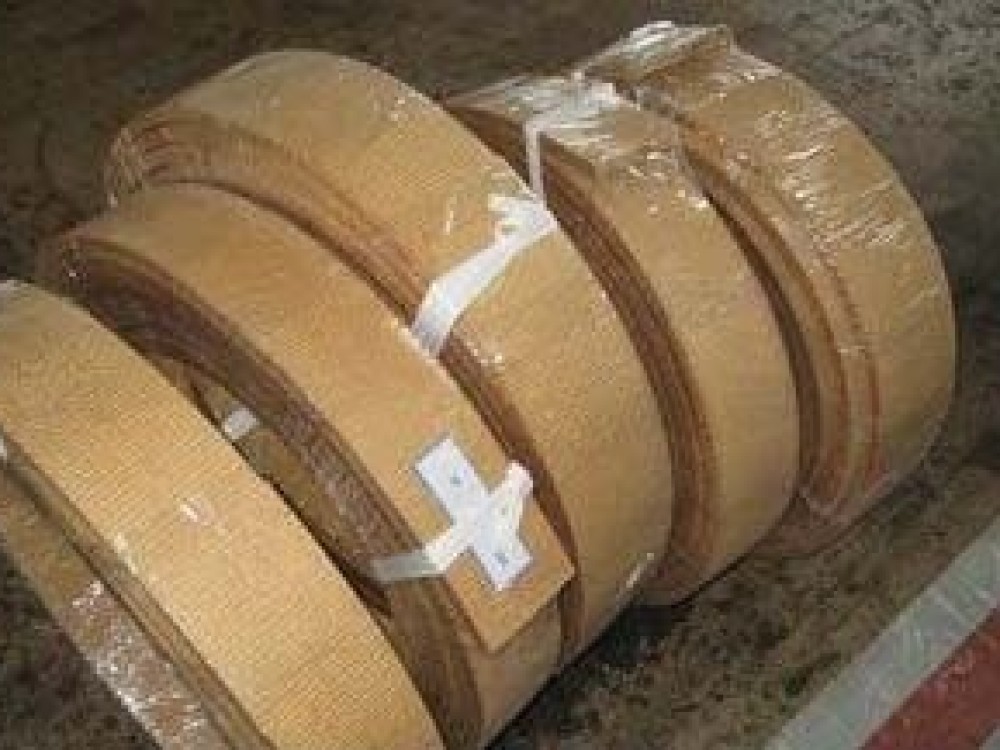

Non Asbestos Woven Brake Lining with Resin(BXS-O)

  • Category:
  • Material:NON asbestos woven
  • Standards:standard
  • Certificate:ISO9001-2008
  • Packing Details:woven bag
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.

Details

Non Asbestos Woven Brake Lining with Resin(BXS-O)

General descripation

We select new type non asbestos yarn which contains brass wire, viscose fiber, glass fiber, aramid fiber act. The yarns are woven by the advanced loom machinery, used specially developed and produced macromolecule resin, through high temperature, low temperature workmanship. The product has high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc. The products are pollution free and environmental.

Performance of BXS-O

Temperature Coefficient of friction Wear rate(V) cm3/N.m
100 c 0.40--0.65 ≤0.7X10-7
150 c 0.35--0.65 ≤0.9X10-7
200 c 0.32--0.60 ≤1.1X10-7

Production information

Thickness: 5--30mm

Width: Max. 500mm

Length: 10m/roll, 15m/roll, 20m/roll

Color: orange

Package: opp bag and woven bag

Used for marine windlass and winch etc.
