Non-Sparking Double Open Wrench
- Category:Marine Tools
- Material:Aluminum Bronze, Beryllium Copper
- Standards:DIN, ASME, QB/T2613.8-2005, GB/T 10686-2013, GS, FM
- Certificate:EACC, IAF
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Non-Sparking Double Open Wrench:
These Non-Sparking Double Open Wrench are made of Aluminum Bronze and Beryllium Copper, it is a high quality grade beryllium copper alloy material and a standard grade aluminum-bronze alloy. These tools are non-magnetic and non-corrosion, very suitable used for LPG and LNG vessels, and oil-gas industry etc.

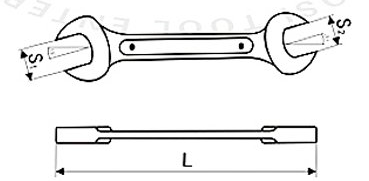

S1*S2 mm |
L mm |
Weight (g) |
|
Aluminum Bronze | Beryllium Copper | ||
5.5*7 | 90 | 20 | 23 |
6*7 | 92 | 22 | 25 |
7*9 | 96 | 25 | 28 |
8*10 | 100 | 31 | 34 |
9*11 | 110 | 45 | 50 |
10*11 | 115 | 47 | 52 |
10*12 | 120 | 55 | 60 |
10*14 | 124 | 62 | 68 |
12*13 | 128 | 67 | 73 |
12*14 | 130 | 69 | 75 |
13*17 | 150 | 110 | 120 |
14*15 | 143 | 105 | 115 |
14*17 | 150 | 110 | 120 |
16*17 | 157 | 120 | 130 |
16*18 | 163 | 130 | 145 |
17*19 | 170 | 135 | 150 |
17*21 | 173 | 165 | 185 |
18*19 | 175 | 180 | 200 |
19*21 | 182 | 190 | 210 |
19*22 | 185 | 200 | 220 |
19*24 | 190 | 210 | 235 |
20*22 | 195 | 225 | 250 |
21*23 | 200 | 235 | 270 |
21*26 | 205 | 245 | 275 |
S mm |
L mm |
Weight (g) |
|
Aluminum Bronze | Beryllium Copper | ||
22*24 | 210 | 285 | 312 |
22*27 | 215 | 292 | 320 |
23*36 | 220 | 302 | 330 |
24*27 | 230 | 310 | 345 |
24*30 | 233 | 330 | 365 |
25*28 | 236 | 330 | 365 |
26*32 | 243 | 420 | 465 |
27*30 | 250 | 430 | 485 |
27*32 | 255 | 549 | 600 |
30*32 | 265 | 540 | 610 |
30*36 | 270 | 730 | 815 |
32*34 | 270 | 730 | 815 |
32*36 | 300 | 800 | 885 |
34*36 | 300 | 800 | 885 |
36*38 | 330 | 1210 | 1350 |
36*41 | 330 | 1210 | 1350 |
38*40 | 330 | 1210 | 1350 |
41*46 | 360 | 1530 | 1690 |
46*50 | 370 | 1850 | 2050 |
50*55 | 385 | 1950 | 2160 |
50*60 | 400 | 2275 | 2488 |
55*60 | 415 | 2450 | 2700 |
60*65 | 435 | 3600 | 3950 |
