Non-sparking Open and 12 Point Box Combination Heavy Wrench:

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

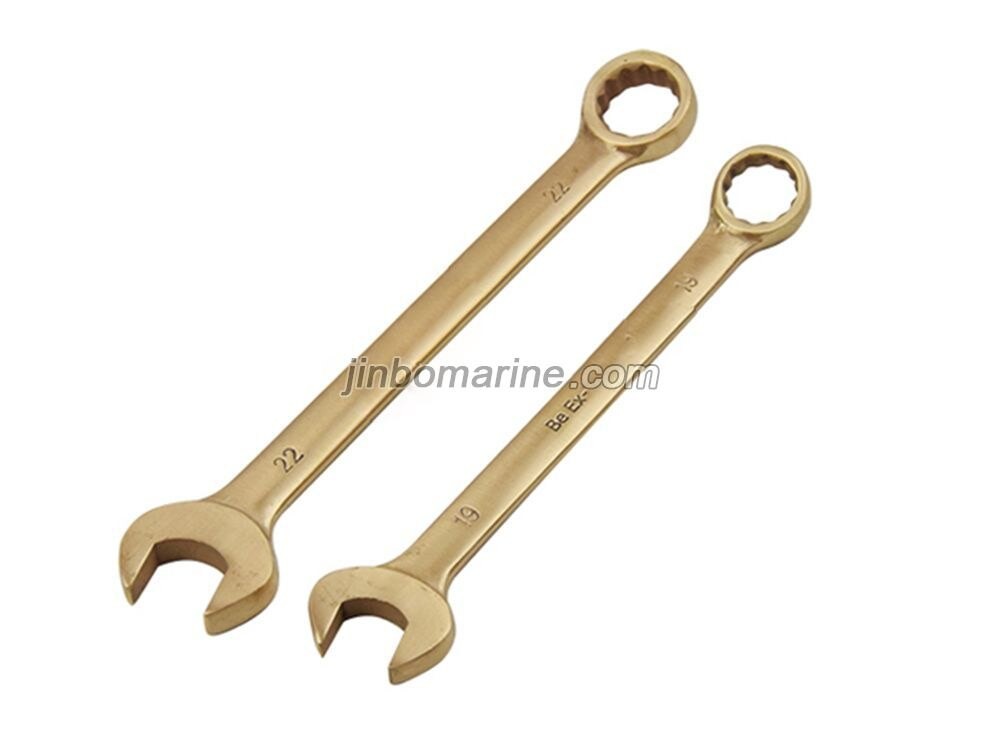

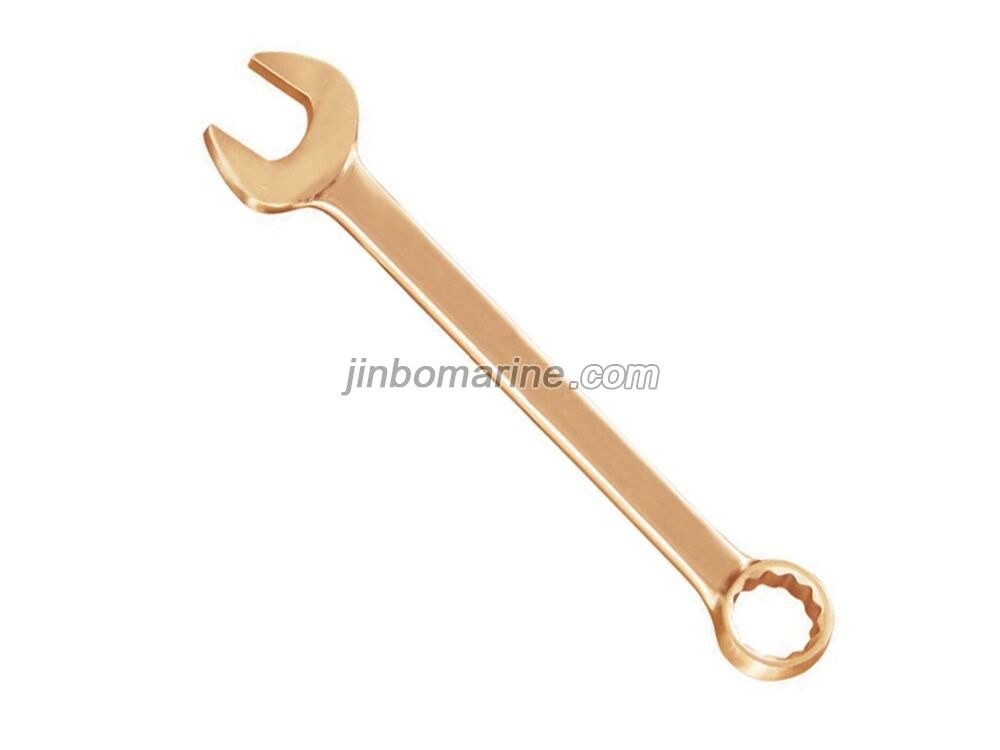

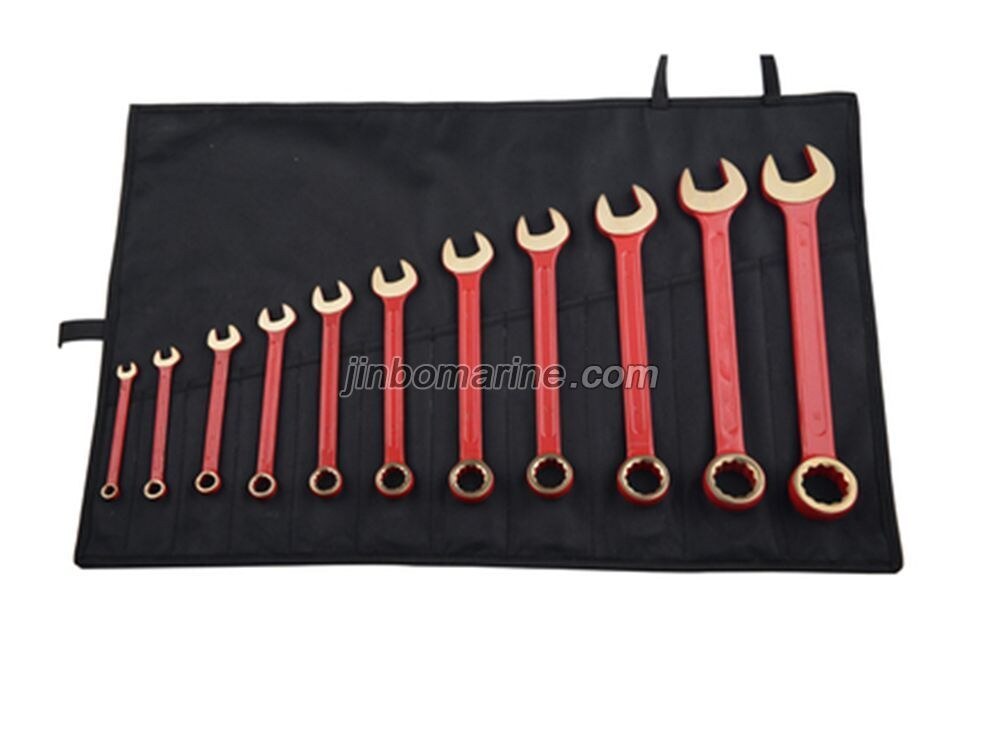

Non-sparking Open and 12 Point Box Combination Heavy Wrench:

Application: In inflammable and explosive places, bolts and nuts of the same specification are applicable at both ends. 15 degree deviation is conducive to operation.

Manufacturing process: Die forging process,

Executive standard: DIN3113

Material: Beryllium bronze alloy, Aluminum bronze alloy.

S
mm 		L
mm 		Weight
(g)
Aluminum Bronze Beryllium Copper
6 105 16 18
7 120 40 40
8 120 40 40
9 135 42 45
10 135 42 45
11 150 60 65
12 150 60 65
13 175 82 90
14 175 82 90
15 195 125 140
16 195 125 140
17 195 125 140
18 215 165 180
19 215 165 180
20 215 165 180
21 245 260 280
22 245 260 280
23 265 290 320
24 265 290 320
25 265 455 500
26 290 455 500
27 290 455 500
30 320 635 700
32 340 710 780
34 360 910 1000
36 360 910 1000
38 430 1310 1450
41 430 1190 1420
46 480 1590 1760
50 520 1830 2020
55 560 1810 2000
60 595 2640 2920
65 595 3110 3440
70 630 3730 4130
75 630 3620 4000
80 660 4880 5400
85 660 4800 5320
90 720 6410 7100
95 720 6250 7000
100 780 8100 8950
110 840 10369 11350
120 900 11560 12750
