Non-sparking Open and 12 Point Box Combination Wrench Picture

Non-sparking Open and 12 Point Box Combination Wrench

Category:Marine Tools
Material:Beryllium bronze alloy, Aluminum Copper alloy
Standards:DIN3113
Fob Price:Get Latest Price Now
Place of Origin:China

Request a Quote Not what you need, please send your RFQs via Email.

Details

Non-sparking Open and 12 Point Box Combination Wrench:

Application: In inflammable and explosive places, bolts and nuts of the same specification are applicable at both ends. 15 degree deviation is conducive to operation.

Manufacturing process: Die forging process,

Executive standard: DIN3113

Material: Beryllium bronze alloy, Aluminum bronze alloy.

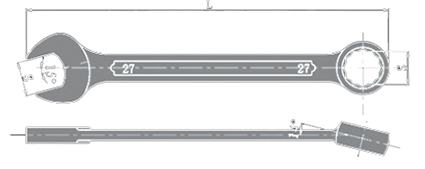

S mm	L mm	Weight (g)
S mm	L mm	Aluminum Bronze	Beryllium Copper
6	105	20	22
7	120	34	37
8	120	34	37
9	135	50	55
10	135	50	55
11	150	75	75
12	150	70	75
13	175	110	122
14	175	110	122
15	195	145	160
16	195	140	155
17	195	140	155
18	215	190	210
19	215	190	210
20	230	200	225
21	230	200	225
22	245	220	250
23	265	233	265
24	265	230	260
25	265	230	260
26	290	380	420
27	290	380	420
30	320	500	560
32	340	600	670
34	360	750	850
35	360	800	890
36	360	800	890
38	395	1150	1200
41	430	1300	1440
46	480	1700	1890
50	520	2000	2220
55	560	2230	2460
60	595	2950	3300
65	595	2900	3250
70	630	4100	4550

S inch	L mm	Weight (g)
S inch	L mm	Aluminum Bronze	Beryllium Copper
1/4	105	20	22
5/16	120	34	37
3/8	135	50	55
7/16	150	70	75
1/2	175	115	125
9/16	175	110	122
19/32	195	145	160
5/8	195	140	155
11/16	195	140	155
3/4	215	190	210
13/16	230	200	225
7/8	245	225	250
15/16	265	230	260
1	290	380	420
1-1/16	290	380	420
1-1/8	320	500	560
1-3/16	320	500	560
1-1/4	340	600	670
1-5/16	360	750	850
1-3/8	360	800	890
