Non-Sparking S Type Double Box Offset Wrench
- Category:Marine Tools
- Material:Aluminum Bronze, Beryllium Copper
- Standards:DIN, ASME, QB/T2613.8-2005, GB/T 10686-2013, GS, FM
- Certificate:EACC, IAF
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

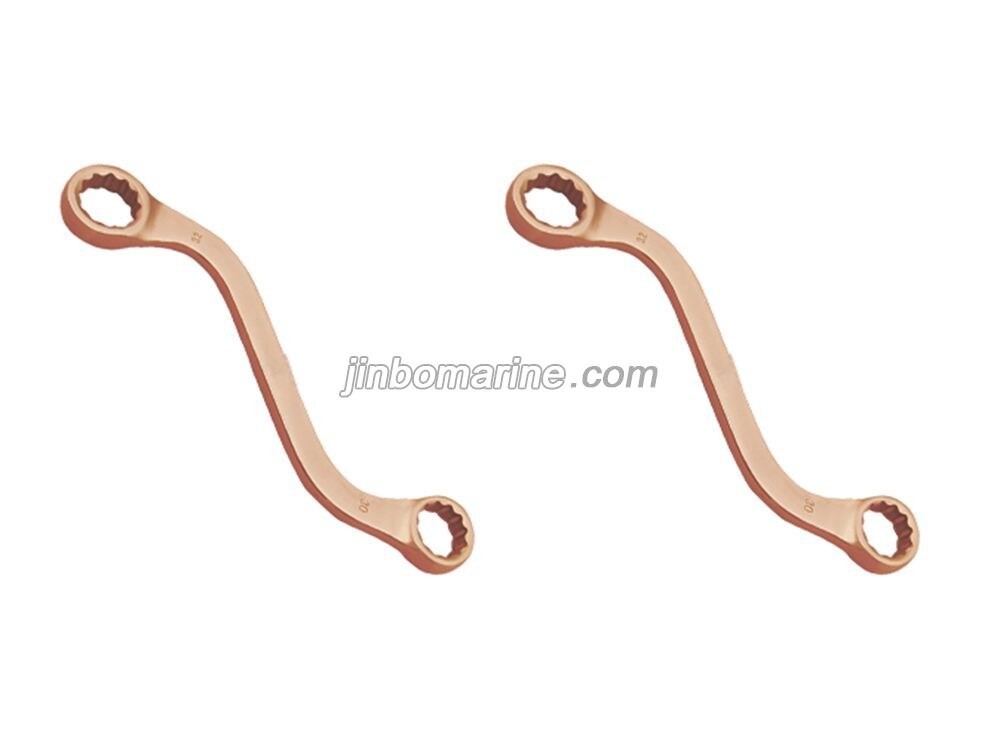

China Non-Sparking S Type Double Box Offset Wrench:
These Non-Sparking S Type Double Box Offset Wrench are made of Aluminum Bronze and Beryllium Copper, it is a high quality grade beryllium copper alloy material and a standard grade aluminum-bronze alloy. These tools are non-magnetic and non-corrosion, very suitable used for LPG and LNG vessels, and oil-gas industry etc.

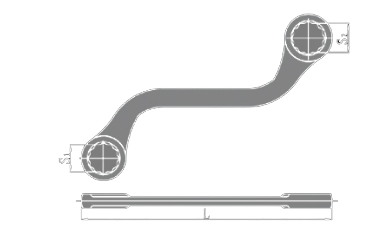

S1*S2 mm |
L mm |
Weight (g) |
|
Aluminum Bronze | Beryllium Copper | ||
6*7 | 90 | 40 | 45 |
7*9 | 90 | 50 | 55 |
8*10 | 100 | 70 | 80 |
9*11 | 100 | 80 | 90 |
10*12 | 110 | 110 | 125 |
12*14 | 125 | 140 | 160 |
14*17 | 140 | 200 | 230 |
17*19 | 170 | 270 | 310 |
19*22 | 185 | 370 | 420 |
19*24 | 185 | 400 | 450 |
21*23 | 185 | 430 | 490 |
21*26 | 185 | 435 | 500 |
22*24 | 210 | 600 | 670 |
23*26 | 210 | 600 | 670 |
24*27 | 225 | 640 | 720 |
24*30 | 225 | 650 | 740 |
25*28 | 225 | 670 | 750 |
27*30 | 250 | 780 | 870 |
30*32 | 275 | 980 | 1100 |
