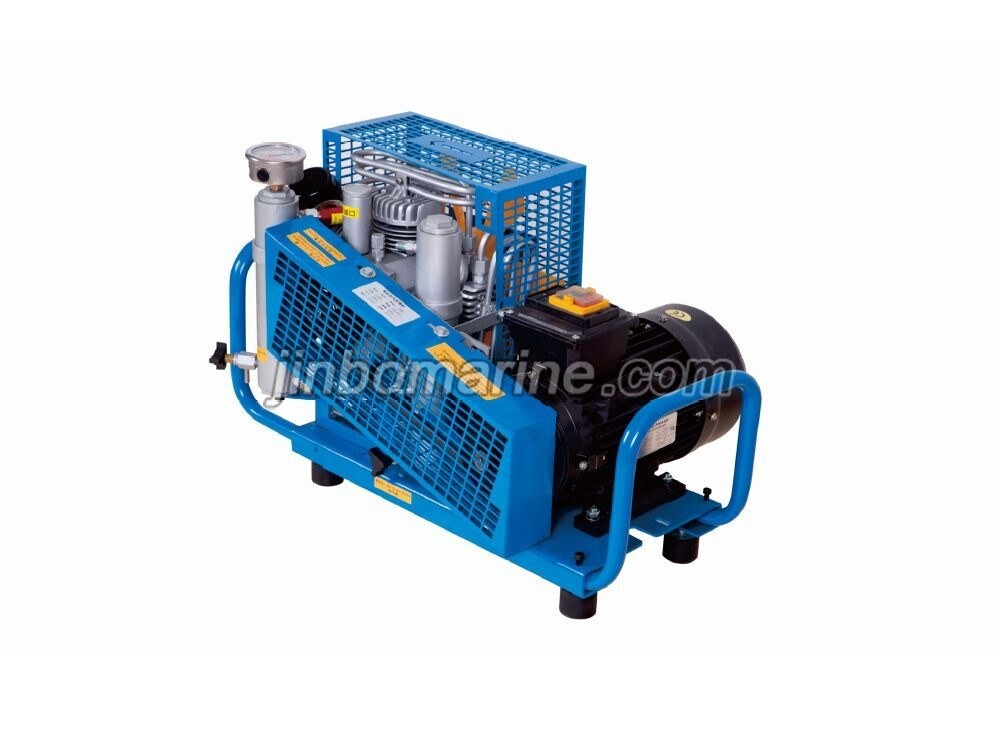

NRX6 Portable High Pressure Diving Air Compressor

Medium: Air

Ambient temperature: - 20~+50℃

Safety valve setting: 330 bar

Working Pressure: 330 bar

Number of Compression stages: 4

Number of Cylinders: 4

Drive: V-Belt

Breathing air standard: EN12021

Product Certification: Exported EU CE certification, CCS SOLAS, ISO 9001 quality system

Splash lubrication

Oil sump content: 0.3 L

Intake filter element

Setting cooler after every compressed

After compresses gas through the cooler, and its temp is higher around 10-15°C then the ambient temperature

Intermediate oil/water separators after each stage (except 1st stage)

Final Oil/water separator

Final pressure safety valve

Compressor equipped with pressure maintenance valve
