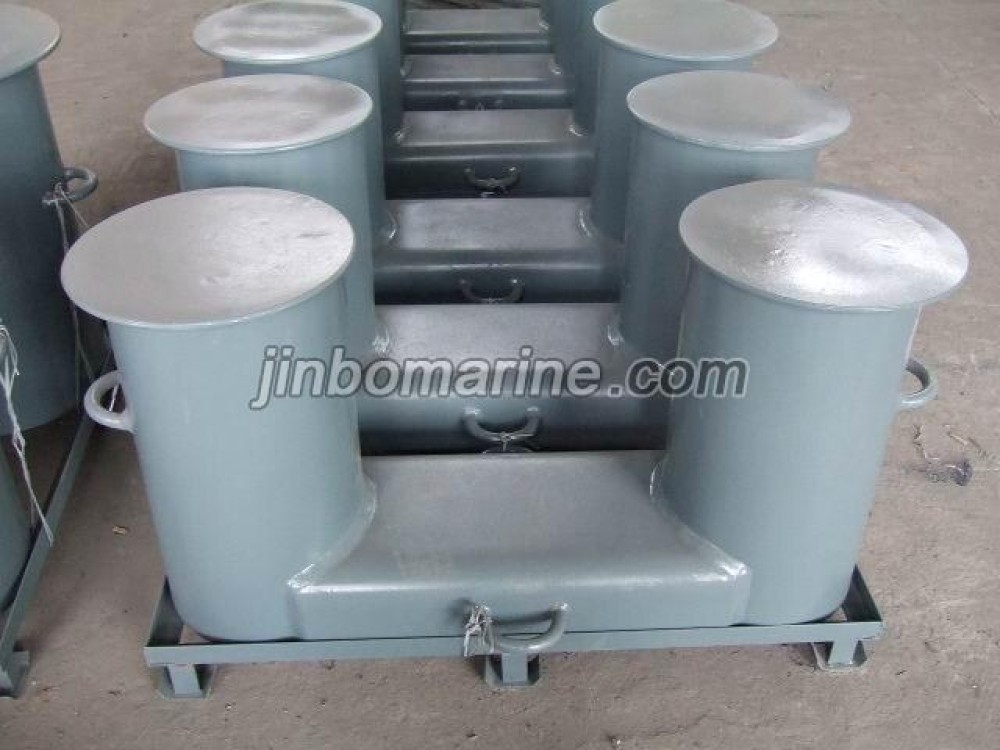

NS2584 Double Bollard
- Category:Marine Bollard
- Standards:NS2584
- Material:steel
- Certificate:mill certificate.
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[pdf]Ns2584 Double Bollard.pdf
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China NS2584 Double Bollard:
Material:Steel
Finish: Epoxy finishing
Warranty: 2 Years
Certificate: ABS, BV, GL, LR, NK, DNV, CCS
Custom made

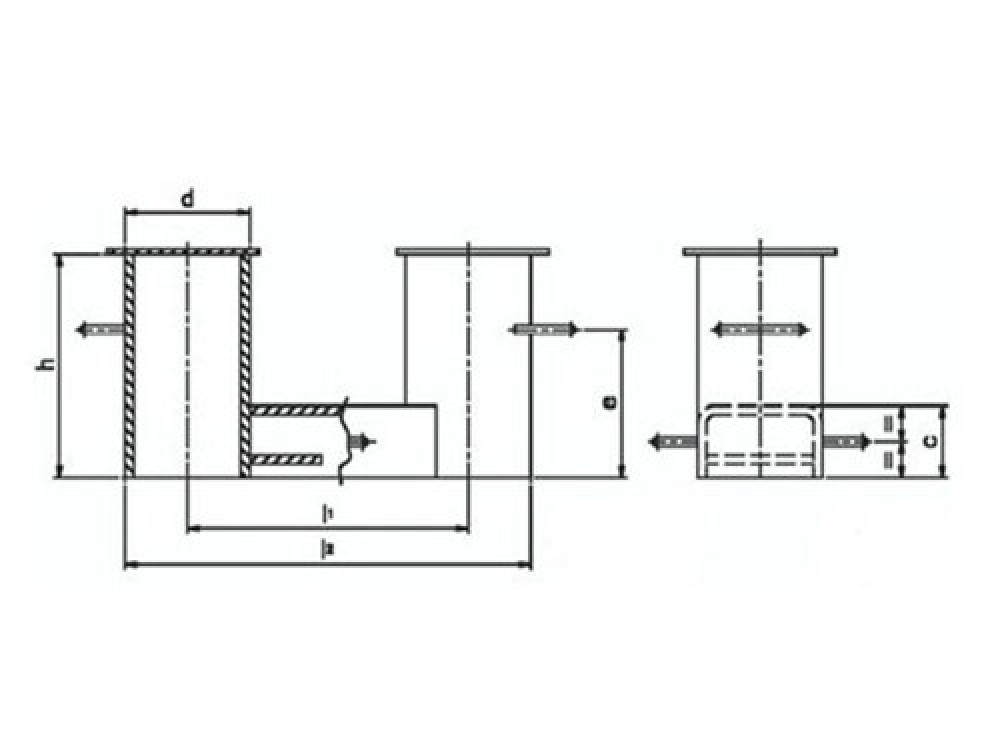

Size chart:
| Double Bollard NS 2584 | ||||||||||||||
| Product No. | Nominal Dia.(mm) | Steel pipe | a1 | a2 | b1 | c | d2 | e | h | k | l1 | l2 | t1 | Weight(kg) |
| BDN-001 | 125 | 140*10 | 4 | 5 | 20 | 80 | 170 | 165 | 250 | 15 | 315 | 455 | 6 | 25.9 |
| BDN-002 | 160 | 168*10 | 4 | 5 | 24 | 90 | 200 | 195 | 300 | 15 | 400 | 568 | 6 | 37.2 |
| BDN-003 | 200 | 219*12 | 5 | 6 | 32 | 100 | 260 | 250 | 400 | 15 | 500 | 719 | 6 | 75.2 |
| BDN-004 | 250 | 273*16 | 5 | 6 | 40 | 125 | 330 | 315 | 500 | 15 | 630 | 903 | 10 | 124 |
| BDN-005 | 315 | 325*20 | 6 | 8 | 48 | 150 | 390 | 375 | 600 | 20 | 800 | 1124 | 10 | 230 |
| BDN-006 | 400 | 406*20 | 8 | 9 | 56 | 175 | 480 | 435 | 700 | 20 | 1000 | 1406 | 10 | 356 |
| BDN-007 | 500 | 508*25 | 10 | 9 | 72 | 200 | 600 | 515 | 830 | 25 | 1250 | 1758 | 12 | 723 |
| BDN-008 | 630 | 610*25 | 10 | 9 | 88 | 225 | 720 | 615 | 1000 | 25 | 1570 | 2180 | 16 | 1084 |
| BDN-009 | 710 | 711*28 | 10 | 9 | 96 | 250 | 830 | 675 | 1100 | 25 | 1750 | 2461 | 16 | 1532 |
