NVR-9000 VDR
- Category:Marine Navigation Equipment
- Certificate:CCS,DNV-GL,RS,VR
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China NVR-9000 VDR:
NVR-9000 VDR is designed to comply with the latest IMO rules of MSC.333(90), MSC.214 (81).

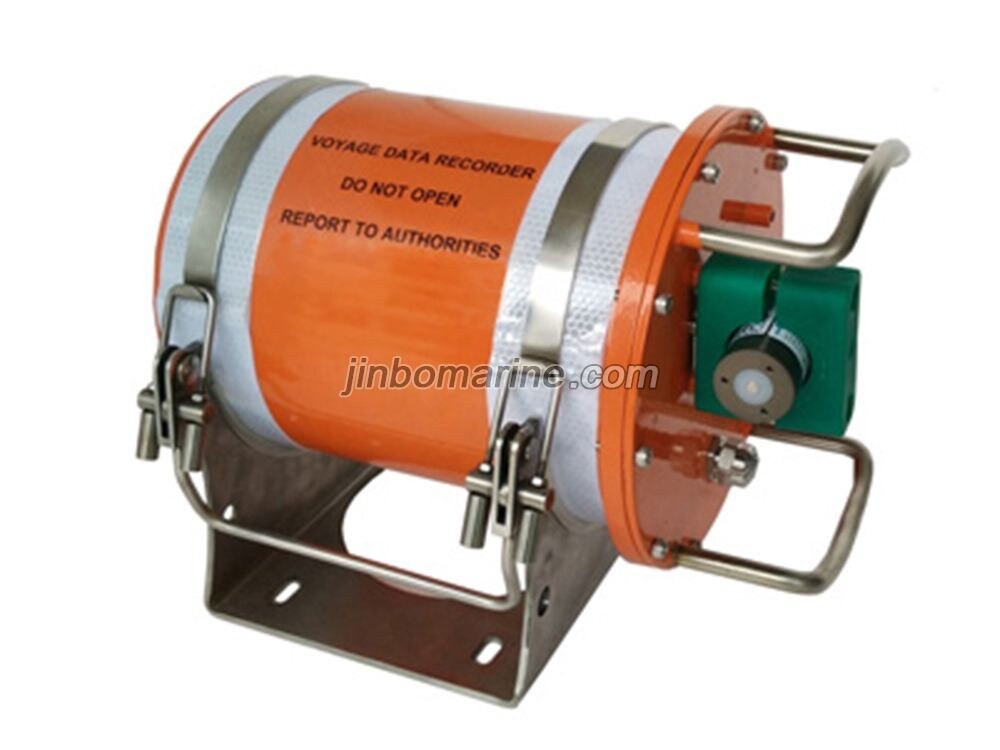

Store data for min 48 hours both in Float-free Capsule (FFC) and Fixed Protective Capsule (FPC).
Store data for min 30days/720 hours in Data Acquisition Unit.
Record image of two radars and two ECDIS.
Three separate channels for audio input:
l One for up to 4 microphones
l One for up to 4 microphones
l One for 2 VHF audio
As standard configuration, below ports provided:
l Serial port x 24 ch (8ch at DAU and 16 ch at DEU)
l Digital port x 64 ch (DEU)
l Analog port x 8 ch (DEU)
PC software and Phone APP are available for playback and realtime monitoring.
Store data for min 48 hours both in Float-free Capsule (FFC) and Fixed Protective Capsule (FPC).
Store data for min 30days/720 hours in Data Acquisition Unit.
Record image of two radars and two ECDIS.
Three separate channels for audio input:
l One for up to 4 microphones
l One for up to 4 microphones
l One for 2 VHF audio
As standard configuration, below ports provided:
l Serial port x 24 ch (8ch at DAU and 16 ch at DEU)
l Digital port x 64 ch (DEU)
l Analog port x 8 ch (DEU)
PC software and Phone APP are available for playback and realtime monitoring.

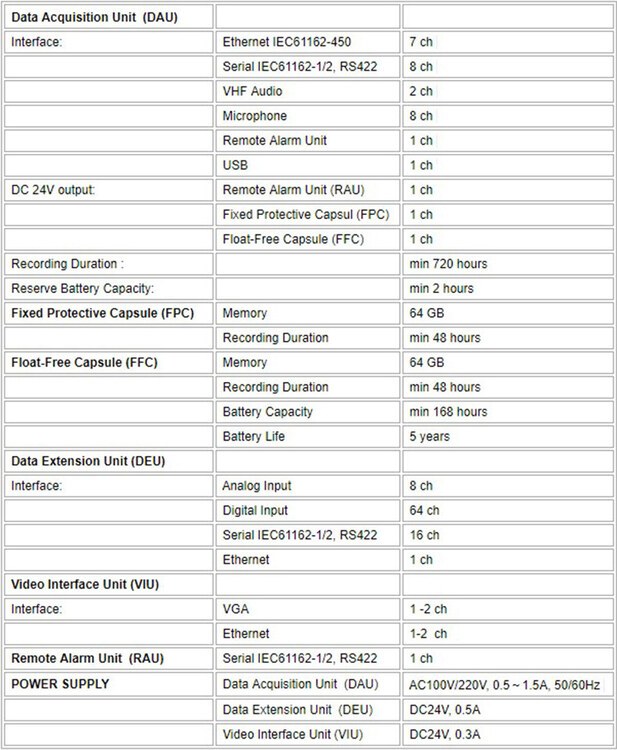

Specification:
