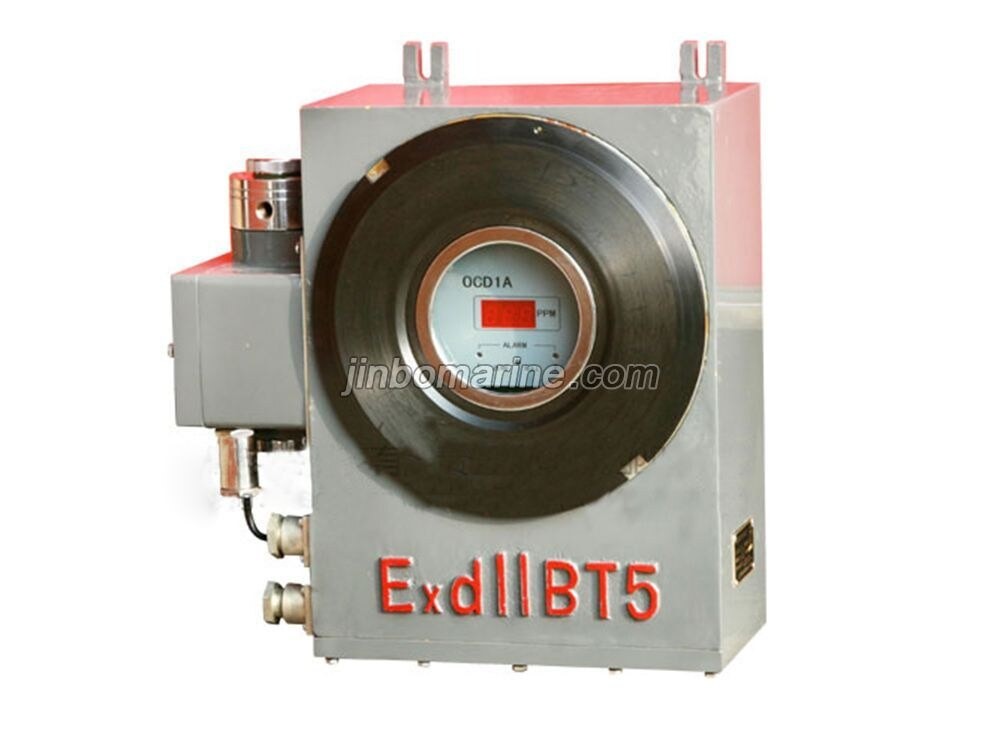

OCD1A Explosion Separation Oil Content Meter

OCD1A explosion separation oil content meter is an online testing instrument for micro oil content in waste water. It uses in the circumstances of explosion proof, such as sites concerning petrochemical, chemical, electric industries and oilfields to monitor discharged waste water continually, build up alarm reporting for over –limitation and control the volume of discharge waste water.

Measurement range: 0～199PPm

Precision: 0---20PPM±2PPM, 20—199PPM±10%

Alarm indication: Red LED

Pressure of sample water: 0.01～0.6Mpa

Runoff of sample water ：0.15---4L/min

Operation voltage: 220VAC, 50/60Hz

Power: 25W

Signal output: 4～20mA
