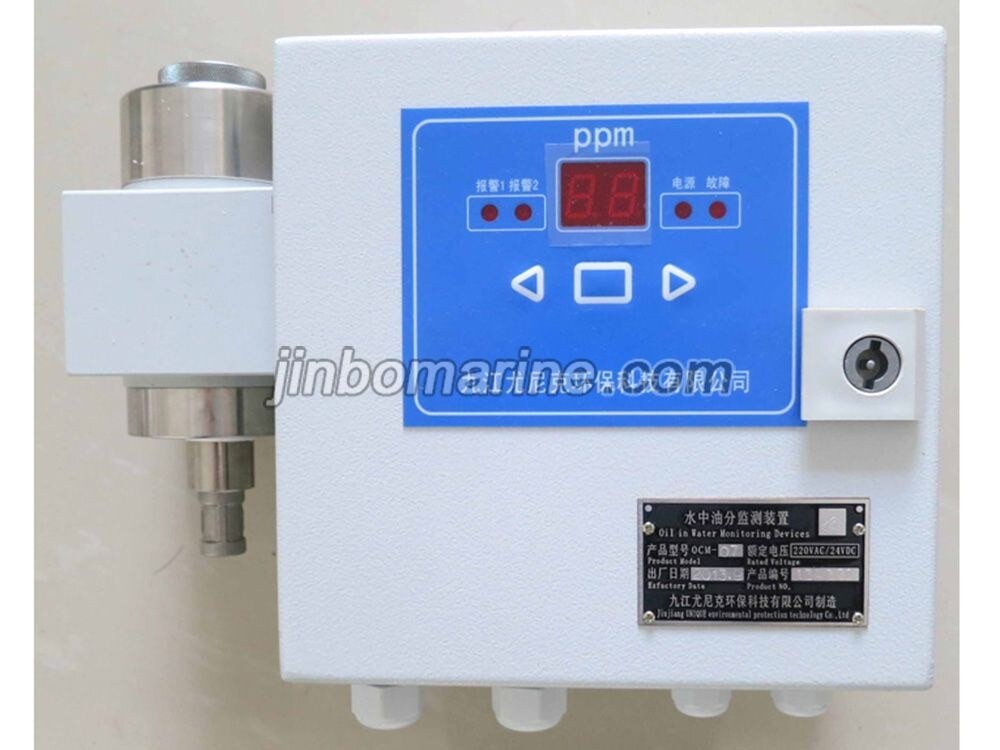

OCM-09 15ppm Bilge Alarm System

OCM-09 series water oil monitoring device is an on-line continuous monitoring device for non soluble oil in water. The device can accurately measure and display the content of the oil in the water. The alarm point of the device can be adjusted within the range of range. The user can adjust the alarm point according to the needs, and can meet the use in different process conditions. The device adopts the advanced single beam refraction light measurement method to solve the interference of the suspended solids in water that can not be solved by the on-line monitoring instruments for a long time. The accuracy of the device is almost consistent with the laboratory data, and it is a continuous on-line measurement of the oil content in the water. The new standard is in line with the requirements of IMO Resolution MEPC 107 (49).

OCM-09 series water oil monitoring device is mainly applied to continuous monitoring of industrial sewage and filter equipment discharge before discharge.

According to the applicable situation, it is divided into ordinary and explosion-proof type; the flameproof type is designed to meet the requirements of Ex D IB II BT5 Gb for installation of explosion-proof area.

The 1. is compact in structure and small in volume.

2. is easy to install and easy to operate.

3. stable and reliable, low maintenance;

The 4. precision is high, which can replace the artificial sampling inspection.

5. online continuous work, alarm point can be adjusted;

6., no chemical reagent is needed to monitor the insoluble oil in water.
