Offdrill Anchor

  • Category:Offshore Anchor
  • Material:Casting Steel
  • Standards:GBT-548-1996
  • Certificate:ABS, LR, BV, DNV, GL, RINA, NK, KR, RS, IRS, CCS
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.

Details

China Offdrill Anchor:

Offdrill Anchor

Material: Casting Steel

Weight: 227kgs to 31780KGS

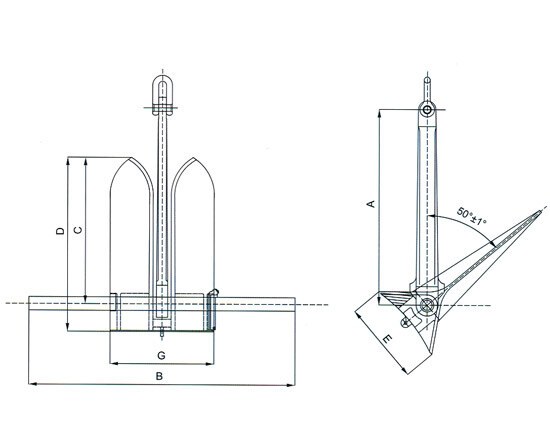

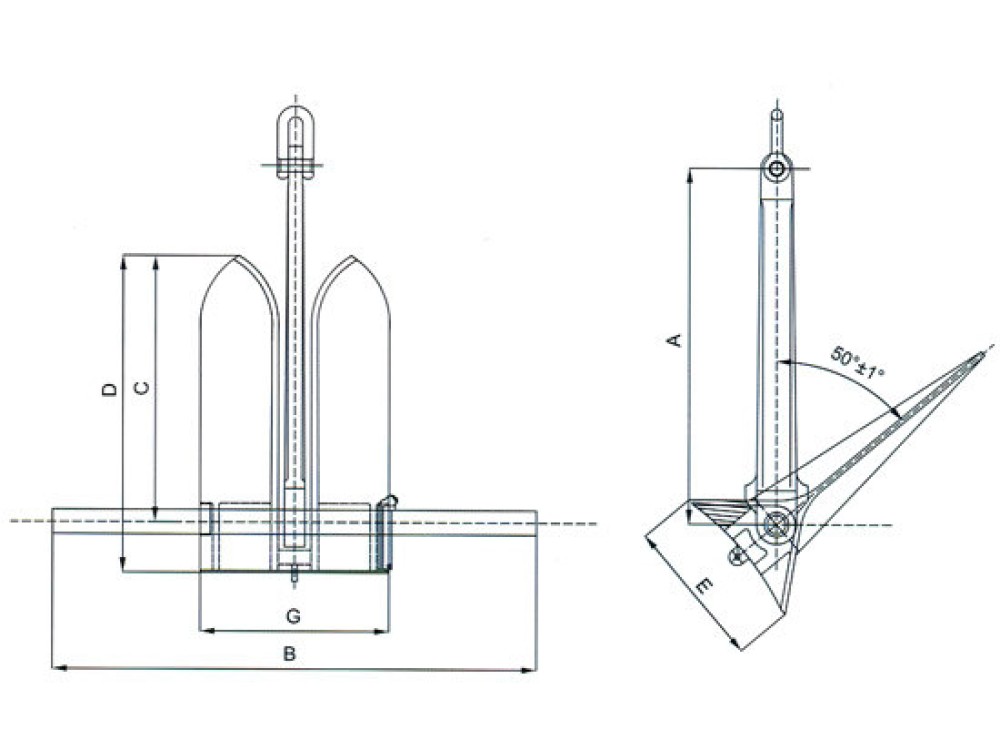

Dimension Table:

Nominal Weight
(KG)
Size(mm)
A B C D E G
227 1205 1330 725 865 395 495
454 1520 1675 915 1090 500 625
680 1770 2120 1050 1250 575 740
908 1950 2340 1160 1380 630 815
136 2100 2520 1250 1485 680 875
1360 2230 2655 1330 1580 725 930
1590 2350 2820 1400 1665 765 980
1815 2500 2945 1460 1740 800 1020
2045 2555 3065 1520 1805 830 1065
2270 2645 3175 1575 1870 860 1100
2725 2815 3375 1675 1990 910 1170
3180 2950 3540 1755 2090 940 1230
3630 3095 3890 1840 2190 1012 1290
4540 3336 4000 1985 2360 1070 1390
5445 3540 4250 2110 2505 1140 1475
6350 3730 4500 2220 2640 1228 1555
6810 3900 4750 2220 2640 1228 1555
7260 3900 4750 2320 2760 1280 1625
9080 4200 4900 2500 2975 1385 1750
11350 4500 5165 2680 3205 1530 1875
13620 4810 5335 2860 3405 1545 2000
15000 4900 5390 2955 3515 1585 2070
18160 5120 5635 3090 3675 1692 2165
20430 5330 5865 3215 3850 1760 2250
22700 5600 6450 3360 4025 1900 2365
27240 5950 6535 3570 4250 1955 2515
31780 6260 6875 3755 4470 2055 2645
Note: we also can supply according to your drawing or requirement.

Fast Delivery: We can delivery to everywhre all over the world in time(Incoterms 2010).
