Oil Tanker Deck Control Device CB693-75

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Oil Tanker Deck Control Device CB693-75:

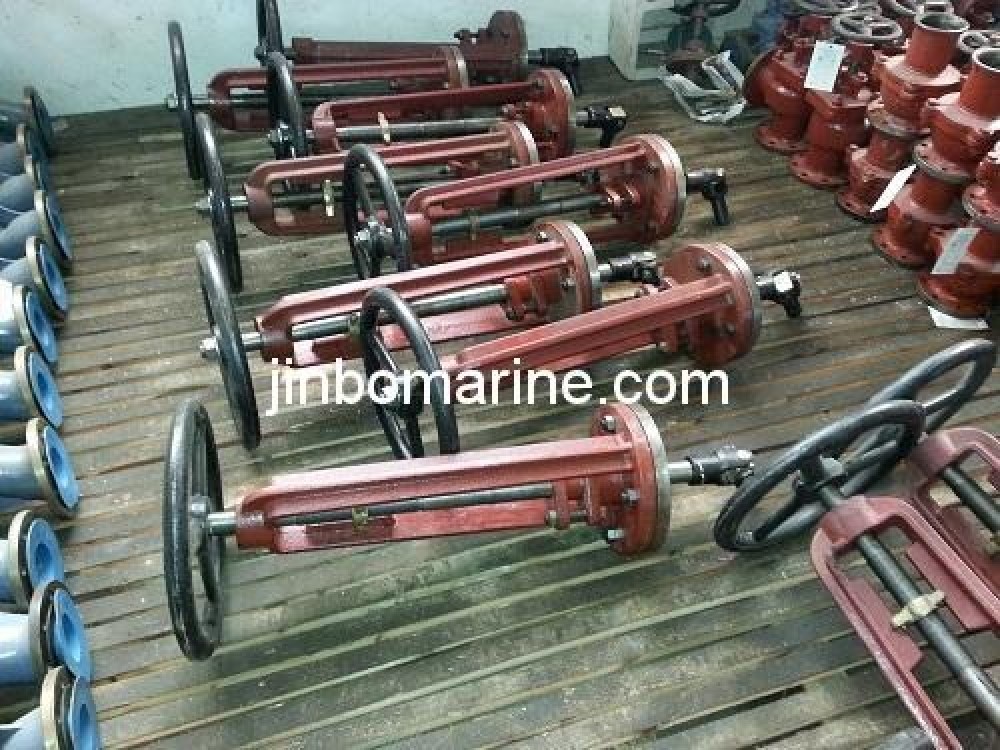

Oil Tanker Deck Control Device also can be called as Deck Stand Valve. It is used to control the oil tanker gate valve DN150-DN350. It is used together with universal joint or end connector, intermediate transmission tube, intermediate holder to control the open & close of gate valve.

Design Standard: CB693-75

Main Parts & Material:

1.Hand Wheel---Nodular Iron or Cast Steel

2.Bush---Bronze

3.Holder---Nodular Iron or Cast Steel

4.Indicator---Brass

5.Control Stem---Carbon Steel

6.Gland---Bronze

8. Packing Seat---Bronze

9.Seat Plate---Carbon Steel

10.Thrust Ring---Bronze

Main Size List(mm):

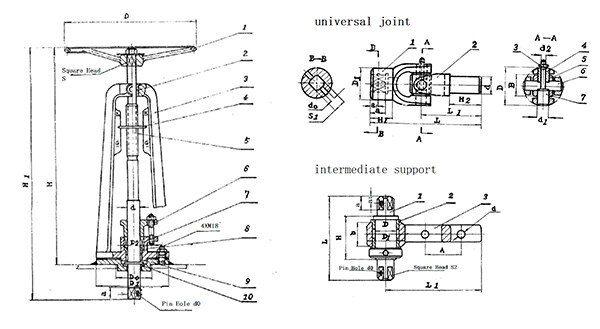

Deck Stand Size:

S0 Holder Size Handwheel Size Distance Control Stem Size Deck Opening Diameter
Allowed torque
D1 D2 D S H H1 d a d0 pitch D0 Kg-Cm
24 240 200 360 22 750 860 34 30 8 3.5 125 2900
27 240 200 400 24 750 860 37 35 10 4 125 4700
32 240 200 450 27 750 860 40 35 10 4 126 4700
Universal Joint Sizeļ¼š
S0 d L L1 H1 H2 D D1 a a1 dn d1 d2 B N.m
24 33 184 100 40 54 64 48 30 15 8 20 11 40 290
27 38.5 210 120 44 64 74 58 34 17 10 22 12 44 470
32 38.5 210 120 44 64 74 58 34 17 10 22 12 44 470

Intermediate Support Size:

S0 L H D A A1 D0 L1 D1 B A D
24 146 66 35 30 15 8 140 65 34 60 15
27 176 76 40 35 17 10 150 70 40 60 15
32 182 82 45 35 17 10 160 80 42 60 17
