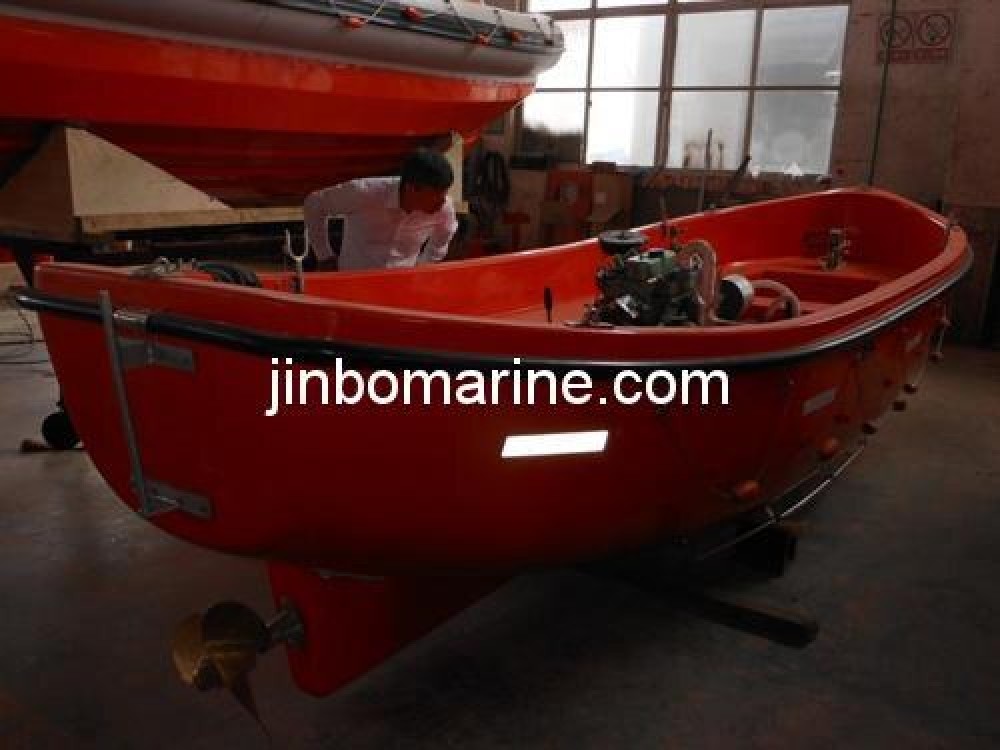

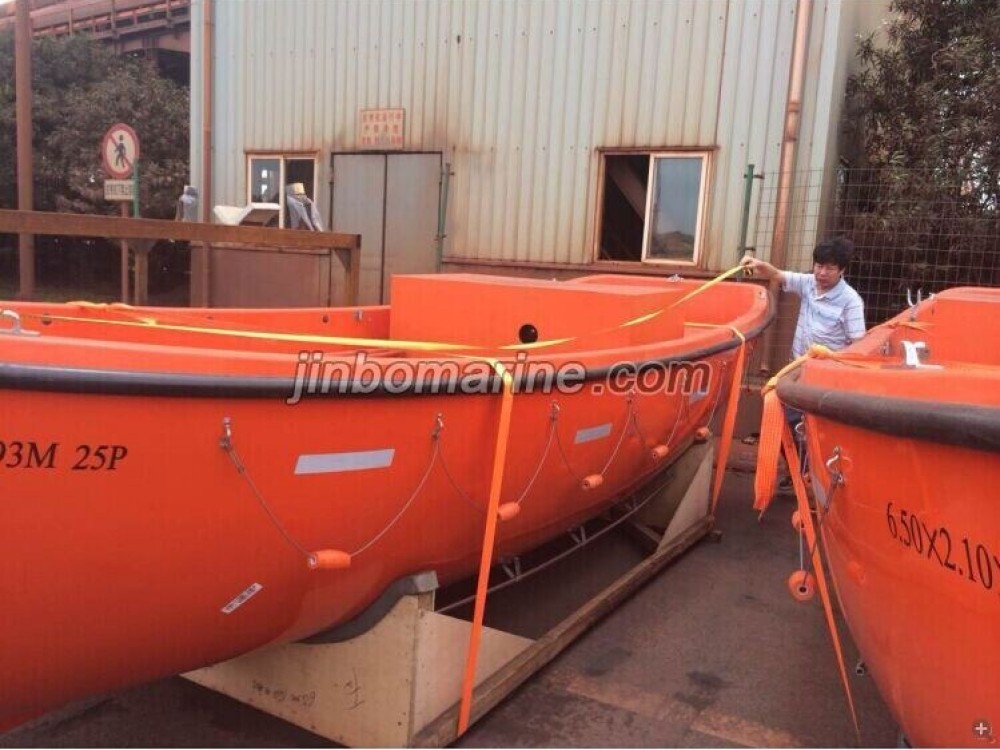

Open Type Lifeboat

Request a Quote Not what you need, please send your RFQs via Email.

Details

Product Description:

Open type lifeboat is more economic for general life saving usage for inshore and inland river going cargo and passenger vessels.The design is totally in accordance with the the requiremnt of SOLAS, IMO and different Classification Societies. CCS, ABS, BV, DNV, GL, LR, NK, RINA, etc. are available for our lifeboats.

Material:

The hull of lifeboat is made of the fire reinforced plastic(F.R.P.).

The space between the inside and outside hull is filled with polyurethane foam which will supply sufficient buoyancy for the boat.

G.R.P Open type lifeboat will be afloat with the help of the foam even the part of boat underneath the water damaged. This open life boat is used for the life-saving on the sea.

Launching using conventional davits, it is designed to safely evacuate crew from vessels and offshore platforms. All lifeboats are equipped with the latest On/Off load release systems. Designed for easy use by ship crew.

we can supply the various lifeboat(like open type lifeboat, freefall lifeboats , totally enclosed lifeboat, and partially enclosed lifeboat.) and suitable davit with very competitive price and soonest delivery time.

We also provide platform/offshore davit,free fall lifeboat landing unit,single arm rotary davit and crane,hydraulic slewing crane&rescue boat liferaft davit,high speed rescue boat langing unit,electrical lifeboat winch,electrical rescue boat winch,and inverted arm gravity davit.

Technical Parameter:

Model Main dimension(m) Person(P) Hook distance(m) Engine/Power(kw) Light Weight(kg) Fully loaded Weight(kg)
BJ-5.5M 5.50×1.90×0.85 17 4.5 S1100M/11.03 1145 2420
ZX2105J-1/18.6 1353 2628
BJ-6.5M 6.50×2.10×0.93 25 5.5 S1115M-2/14.71 1400 3275
ZX2105J-1/18.6 1643 3518
BJ-7.5M 7.50×2.50×1.05 44 6.5 ZX2105J-1/18.6 2080 5380
L85K 8.50×3.00×1.10 62 7.55 ZX2105J-1/18.6 2805 7455
