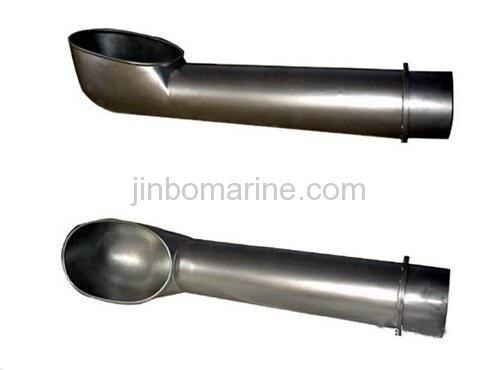

Pipe Ventilator
- Category:Marine Ventilator
- Material:Steel, Stainless Steel
- Standards:CB294-84
- Certificate:CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Pipe Ventilator:
Standard: CB294-84
Material: Steel or Stainless Steel

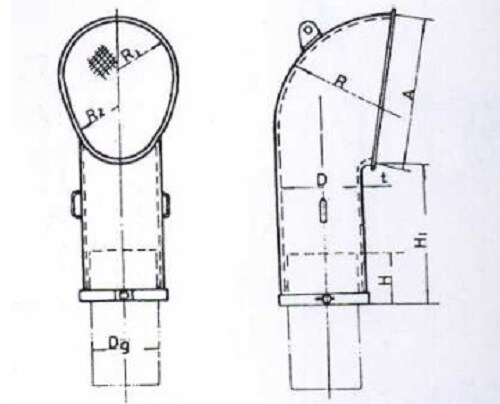

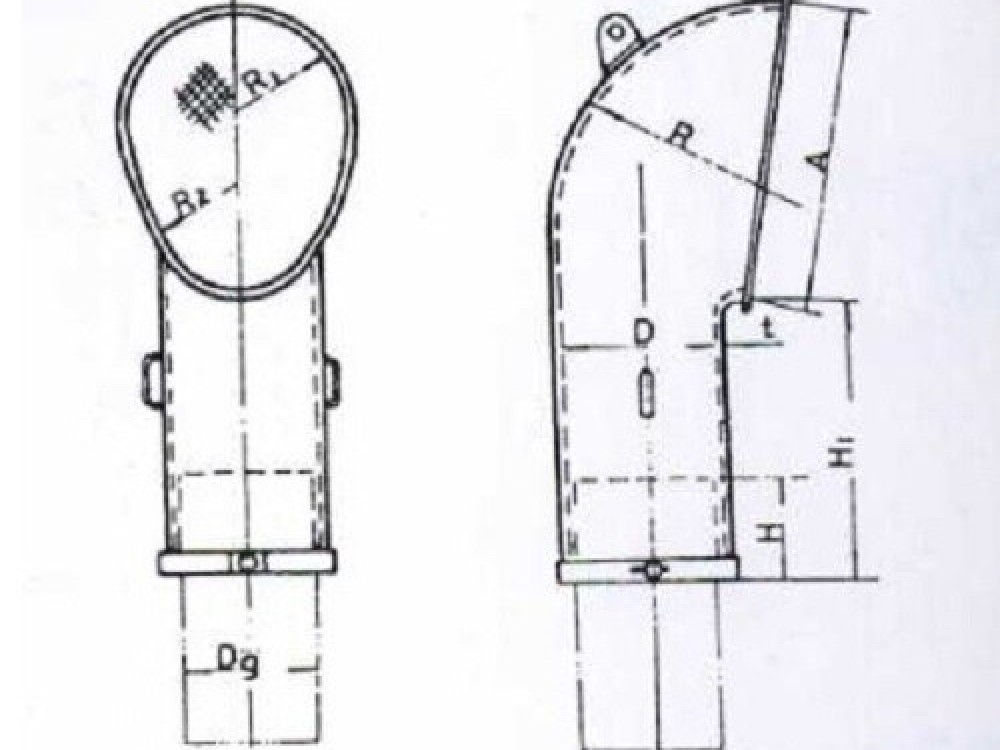

Main Size List(mm):
| Nominal Size | D | A | R | R1 | R2 | H | t | Roller Qty | Weight(kgs) |
| 150 | 175 | 350 | 240 | 120 | 95 | Decided by user | 1.5 | _ | 5.84 |
| 200 | 225 | 460 | 320 | 160 | 120 | 1.5 | 6.82 | ||
| 250 | 275 | 570 | 400 | 200 | 145 | 1.5 | 8.6 | ||
| 300 | 325 | 680 | 480 | 240 | 170 | 1.5 | 11.1 | ||
| 350 | 375 | 790 | 560 | 280 | 195 | 2 | 16.9 | ||
| 400 | 430 | 900 | 640 | 320 | 220 | 2 | 3 | 24.4 | |
| 450 | 480 | 1010 | 720 | 360 | 245 | 2 | 26 | ||
| 500 | 530 | 1120 | 800 | 400 | 270 | 2 | 31.5 |
