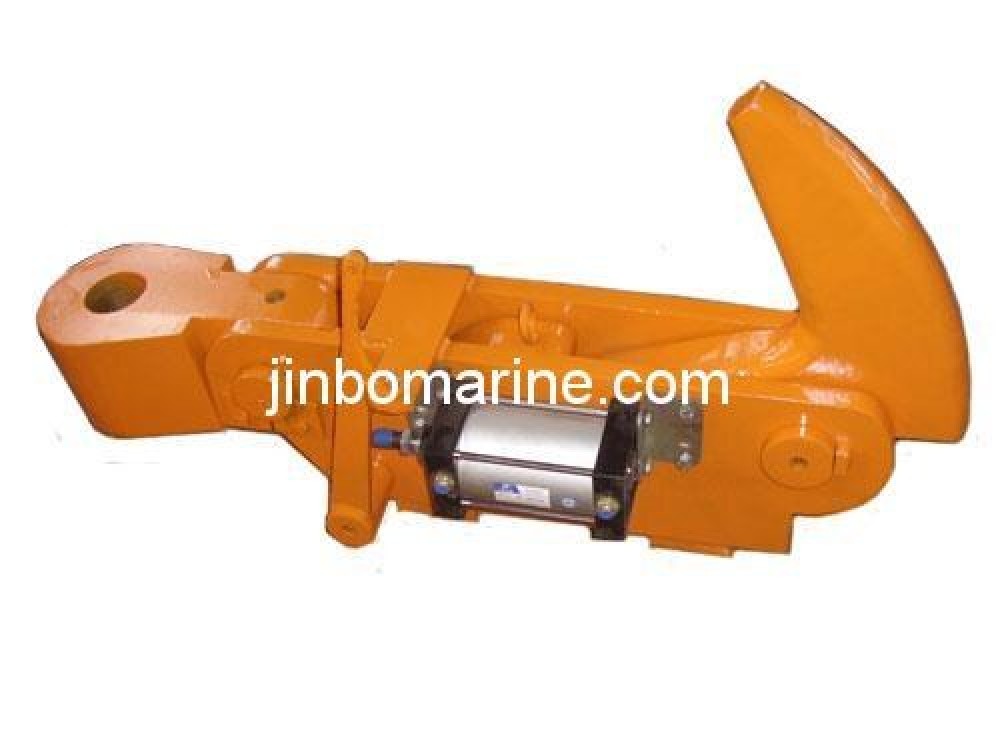

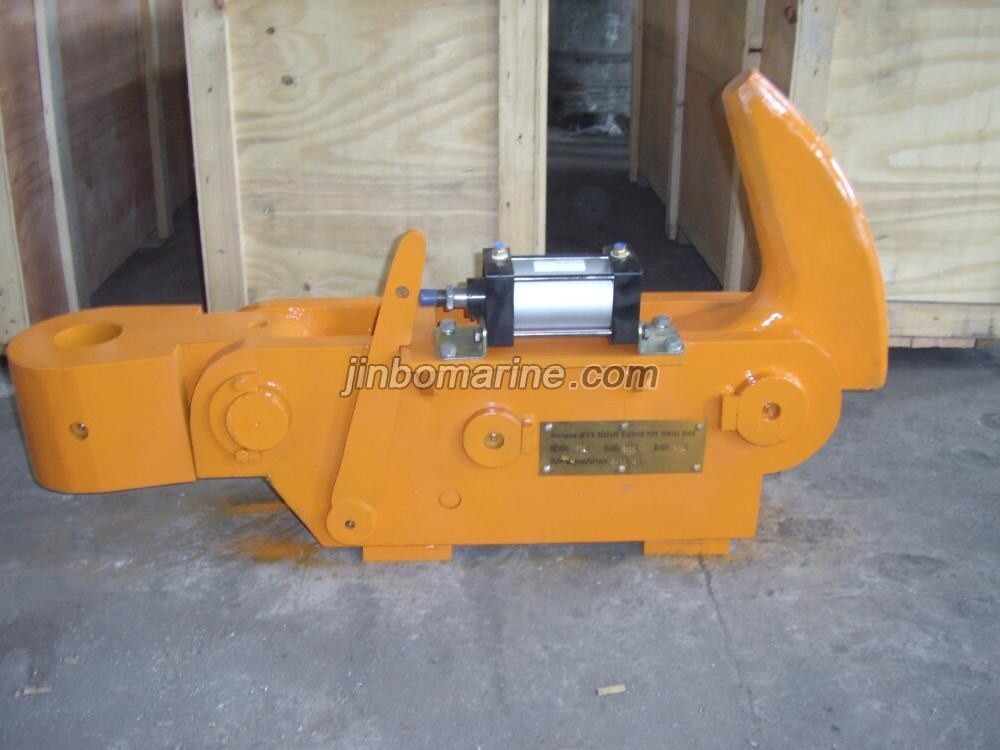

Pneumatic Control Harbour Type Towing Hook
- Category:Quick Release Harbour Type Towing Hook
- Material:Including Q235-A material,35# steel,45 # steel,45Cr, EH36, 65Mn, Q345.The goods can be designed according to your requirements.
- Certificate:CCS,BV, ABS ,GL,mill certificate etc can be provide.
- Standards:Conform to classification society requirement.
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[pdf]Pneumatic Control Harbour Type Towing Hook.pdf
Details
Brief description:
Popular model:15 ton, 30 ton, 45 ton, 56 ton,100 ton etc.
Certificate:CCS,BV, ABS ,DNV,GL,LR,mill certificate etc can be provide.
Feature:
Smooth surface.
Easy to handle and low maintenance.
Safe handling and releasing with a small manual effort.
Applications:
Container berth,General cargo berth,Offshore dock,Ferry dock etc.
Work principle:Leverage.
Ensure the hook and hook knife tight junctions before use it, and make the crankshaft in the working state.

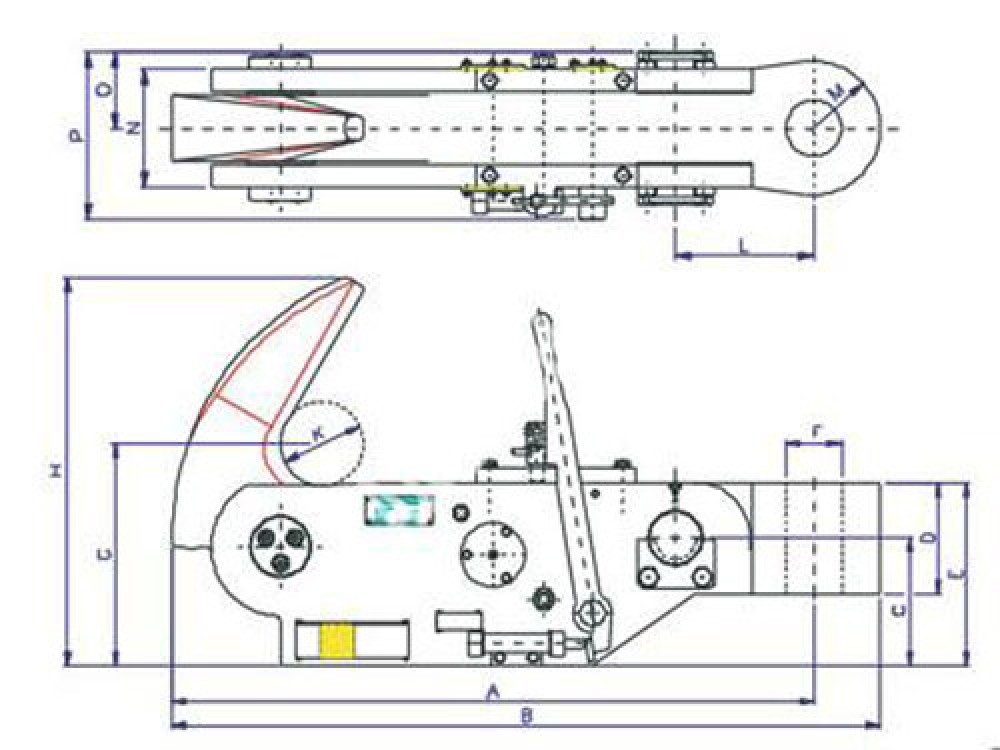

Specification:
|
Product No. |
Safe working load(Kn) |
Test load(Kn) |
Release load(Kn) |
Weight(kg) |
A |
B |
C |
D |
E |
F |
G |
H |
K |
L |
M |
N |
N |
P |
|
PHH-001 |
150 |
300 |
150 |
52 |
521 |
571 |
100 |
100 |
150 |
40 |
174 |
316 |
65 |
110 |
50 |
100 |
100 |
150 |
|
PHH-002 |
300 |
600 |
300 |
143 |
788 |
868 |
160 |
130 |
225 |
60 |
268 |
461 |
96 |
180 |
80 |
125 |
125 |
207 |
|
PHH-003 |
450 |
900 |
450 |
289 |
1023 |
1123 |
200 |
160 |
260 |
80 |
350 |
616 |
130 |
210 |
100 |
148 |
148 |
224 |
|
PHH-004 |
562 |
1125 |
562 |
352 |
1073 |
1183 |
200 |
180 |
290 |
90 |
350 |
616 |
130 |
250 |
110 |
170 |
170 |
245 |
|
PHH-005 |
1000 |
1500 |
1000 |
526 |
1159 |
1279 |
230 |
200 |
330 |
100 |
400 |
700 |
150 |
250 |
120 |
212 |
212 |
333 |
