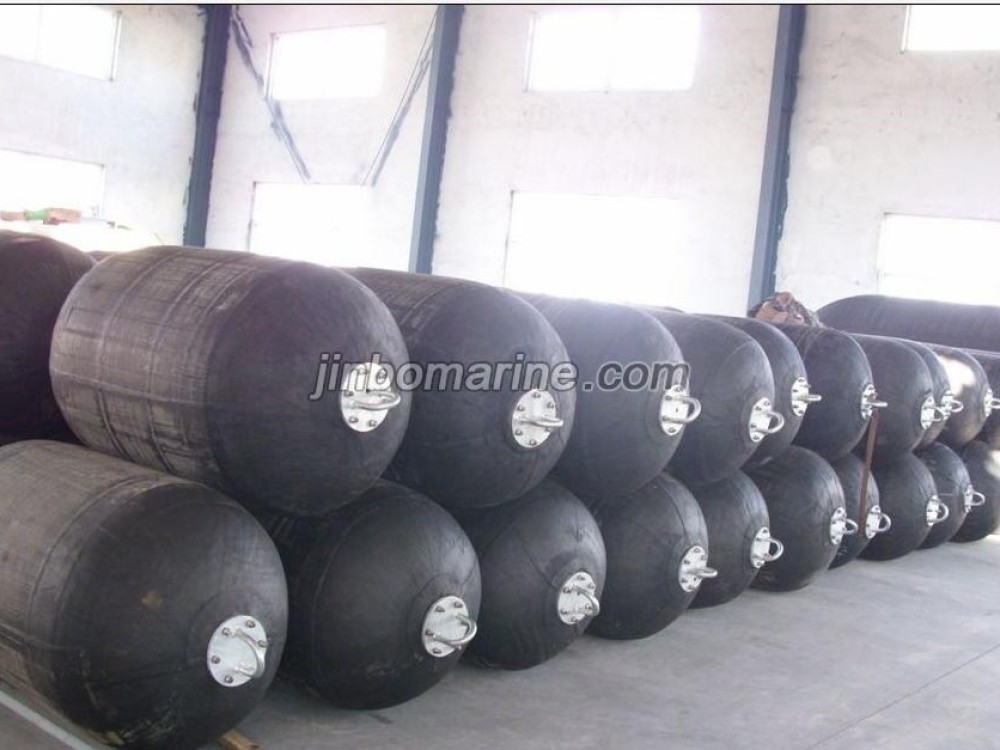

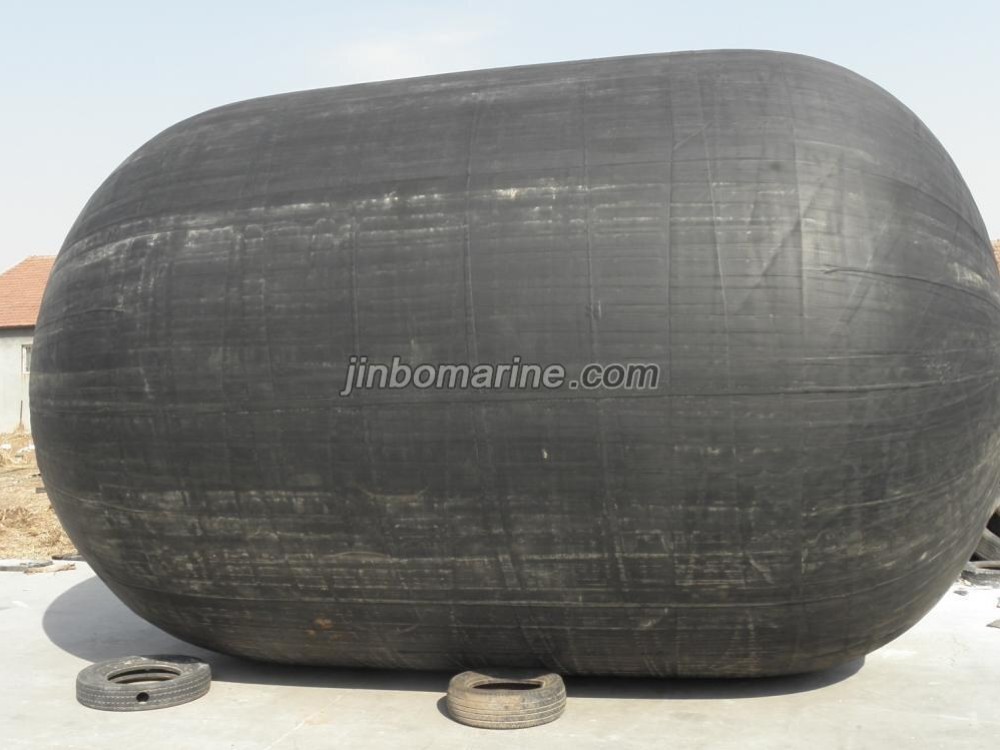

Pneumatic Rubber Fender Without Tyre
- Category:Marine Fender
- Material:Nature rubber
- Standards:ISO 17357-2002
- Certificate:CCS,BV,ABS,DNV,LR etc.
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
Product Specification
Marine pneumatic rubber fender have been widely used for berthing by ship to ship or ship to dock.
Features
1. High energy absorption and low reaction force and surface pressure.
2. No decline in the rate of energy absorption when obliquely compressed, under normal circumstances, and uniform surface pressure for any contact area.
3. Low reaction force to prevent damage from repeated impacts against the hull of ship, quay, jetty or mooring rope.
4. Ability to float and rise and fall with the ebb and flow of tides and the movements of a ship.
5. High standard of uniform quality in compression performance with no deterioration of the rubber.
6. Easy installation.

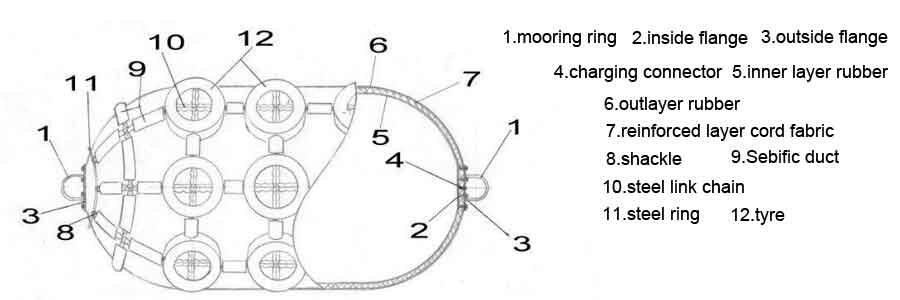

Structure Of Pneumatic Rubber Fender
Size Chart
|
Specifications (mm) |
At 60% compression; |
Fender Boday Weight |
||
|
Initial Pressure is 0.05MPa |
±10% |
|||
|
Diameter |
Length |
Energy Absorption |
Reaction Force |
KG |
|
(KJ) |
(KN) |
|||
|
200 |
500 |
2 |
25 |
6 |
|
300 |
500 |
3 |
32 |
12 |
|
500 |
1000 |
6 |
64 |
25 |
|
600 |
1200 |
10 |
86 |
35 |
|
700 |
1500 |
17 |
137 |
50 |
|
1000 |
1500 |
32 |
181 |
80 |
|
1000 |
2000 |
45 |
257 |
100 |
|
1200 |
2000 |
63 |
297 |
120 |
|
1350 |
2500 |
100 |
426 |
170 |
|
1500 |
3000 |
153 |
579 |
320 |
|
1700 |
3000 |
190 |
637 |
400 |
|
2000 |
3500 |
308 |
875 |
590 |
|
2500 |
4000 |
663 |
1380 |
1000 |
|
2500 |
5500 |
932 |
2010 |
1400 |
|
3000 |
5000 |
1050 |
2030 |
1800 |
|
3000 |
6000 |
1315 |
2488 |
2200 |
|
3300 |
6500 |
1814 |
3015 |
2700 |
|
3500 |
6000 |
2018 |
3286 |
2800 |
|
3500 |
6500 |
2325 |
3656 |
3200 |
|
3500 |
7000 |
2650 |
4018 |
3600 |
|
3600 |
7200 |
3180 |
4821 |
4320 |
Other sizes besides the above also can be customized.
Initial pressure:both 0.05MPA and 0.08MPA available.
