Pneumatic Rubber Fender
- Category:Marine Fender
- Certificate:CCS,BV,factory certificate.
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Pneumatic Rubber Fender:

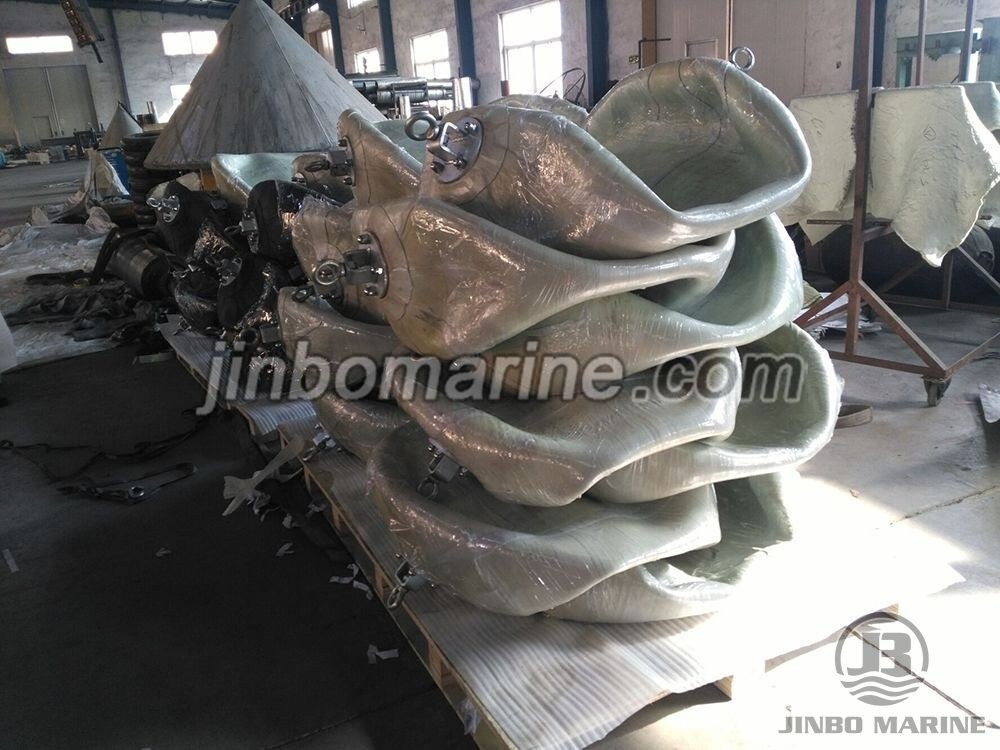

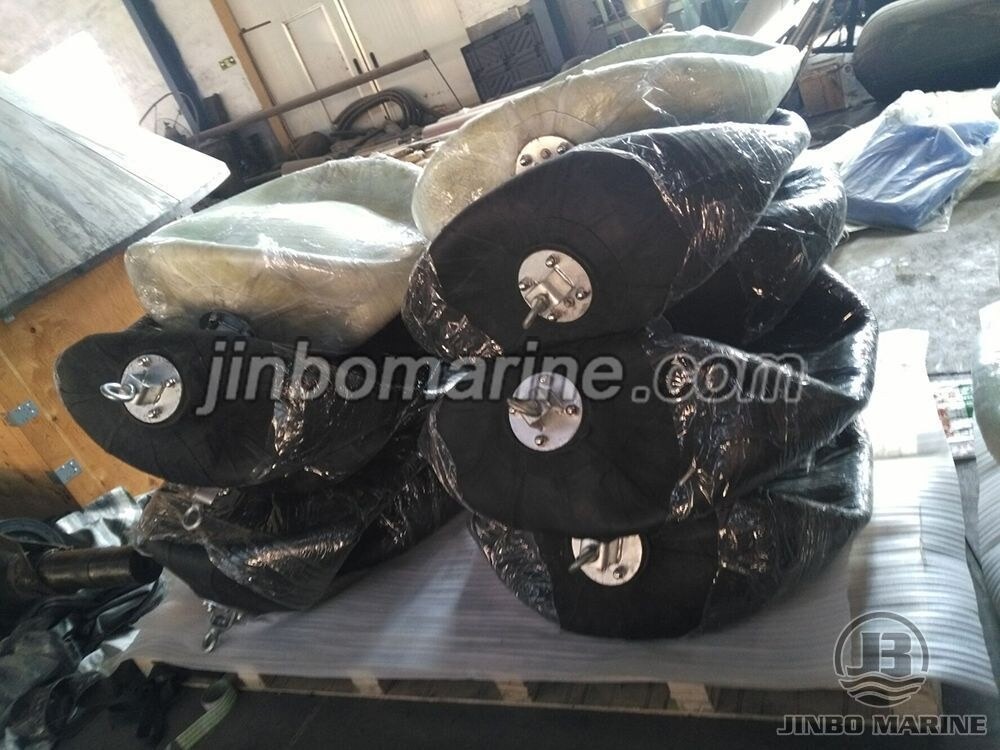

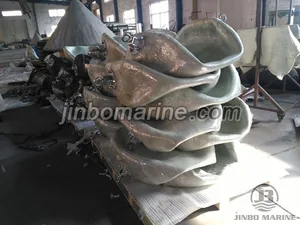

The above picture is diameter 660mm x length 1100mm pneumatic rubber fender(deflated fender status).

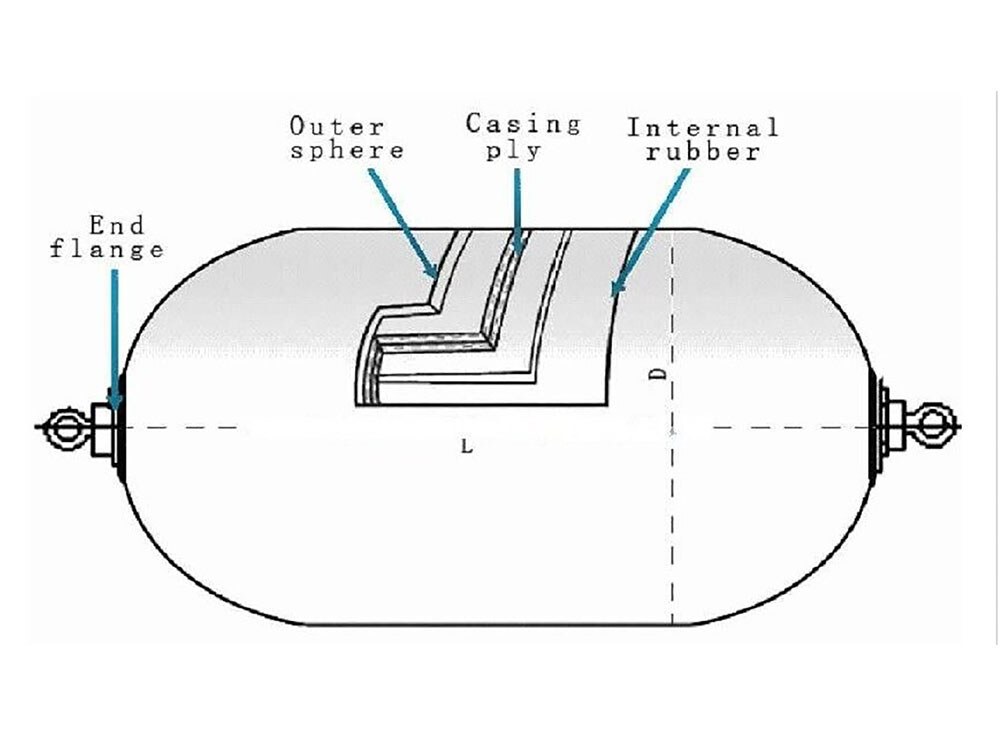

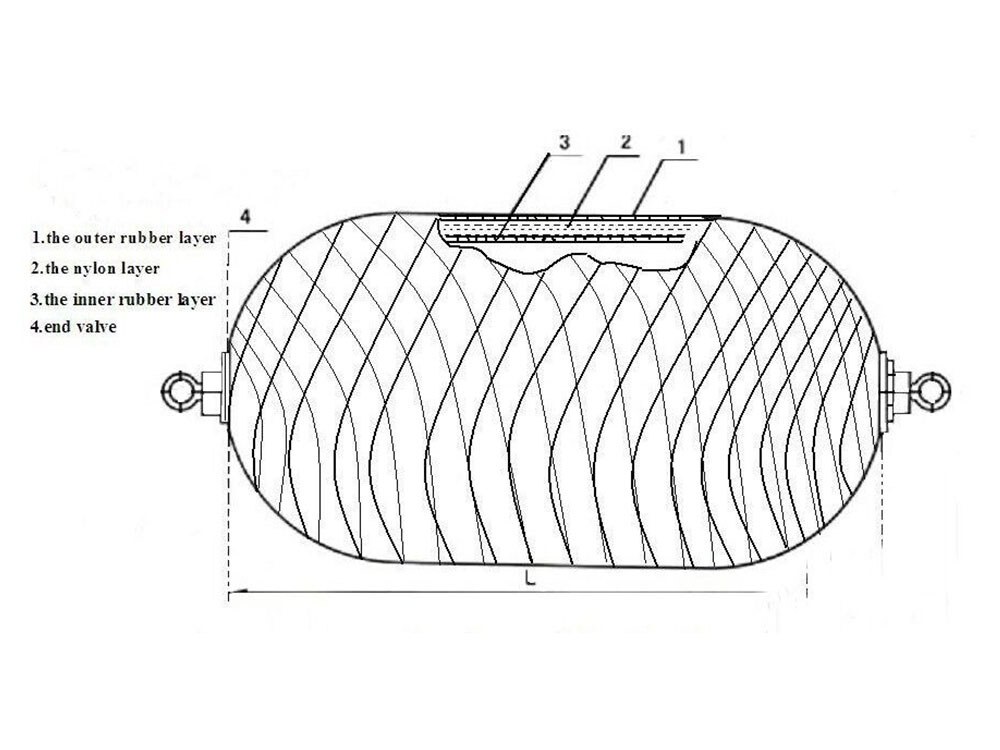

Fender Structure:
Reaction force and guaranteed energy absorption at deflection 60%(±5%)
|
Specification Diameter x length(m) |
0.05 Mpa Initial pressure 0.05Mpa | 0.05 Mpa Initial pressure 0.08Mpa | ||||
| Weight(kg) | Reaction force(KN) | GEA(KJ) | Weight(kg) | Reaction force(KN) | GEA(KJ) | |
| 0.5x1.0 | 25 | 674 | 6 | 25 | 85 | 8 |
| 0.6x1.0 | 32 | 74 | 8 | 32 | 98 | 11 |
| 0.7x1.5 | 50 | 137 | 17 | 50 | 180 | 24 |
| 1.0x1.5 | 80 | 182 | 32 | 80 | 239 | 45 |
| 1.0x2.0 | 100 | 257 | 45 | 125 | 338 | 63 |
| 1.2x2.0 | 120 | 297 | 63 | 165 | 390 | 88 |
| 1.35x2.5 | 165 | 427 | 102 | 226 | 561 | 142 |
| 1.5x3.0 | 315 | 579 | 153 | 370 | 761 | 214 |
| 1.7x3.0 | 405 | 639 | 191 | 436 | 840 | 287 |
| 2.0x3.5 | 590 | 875 | 308 | 632 | 1150 | 430 |
| 2.5x4.0 | 1050 | 1381 | 663 | 1110 | 1815 | 925 |
| 2.5x5.5 | 1333 | 2019 | 943 | 1410 | 2653 | 1317 |
| 3.0x5.0 | 1880 | 2000 | 1050 | 2155 | 2709 | 1571 |
| 3.0x6.0 | 2160 | 2488 | 1312 | 2470 | 3292 | 1888 |
| 3.3x4.5 | 2020 | 1884 | 1175 | 2300 | 2476 | 1640 |
| 3.3x6.0 | 2300 | 2783 | 1675 | 2600 | 3652 | 2338 |
| 3.3x6.5 | 2700 | 3015 | 1814 | 3080 | 3961 | 2532 |
| 3.3x10.6 | 4403 | 5257 | 3067 | 5020 | 6907 | 4281 |
| 4.5x9.0 | 6554 | 5747 | 4752 | 7470 | 7551 | 6633 |
| 4.5x12.0 | 8739 | 7984 | 6473 | 9960 | 10490 | 9037 |
| Note:The weight is the fender body weight(without tyres and chain), with weight error of ±10% and counterforce error of ±10%. | ||||||
