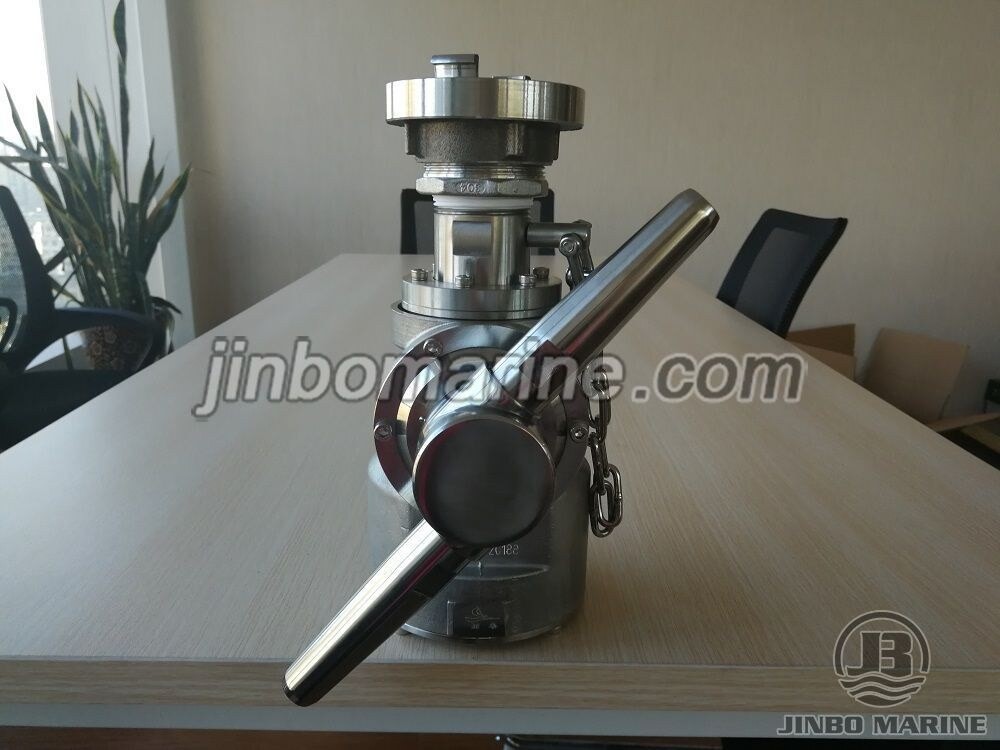

Portable Tank Washing Machine
- Category:Tank Washing Machine
- Material:Stainless Steel 316L
- Standards:GB/T11715-89
- Certificate:CCS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Portable Tank Washing Machine:
The tank washing mchine are used for the crude oil washing system or similair system.
Design Standard: GB/T11715-89
Material: 316L
Certificate: CCS
Working Pressure: 0.6-1.2MPa
Flow Rate: 10~40m3/h
Working Temperature: from ordinary to -80℃
* There are optional parts for portable tank washing machine, such as hose saddle, hoses, hose coupling.

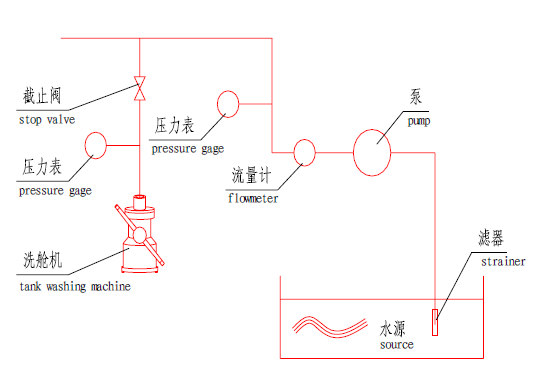

Installment Form:

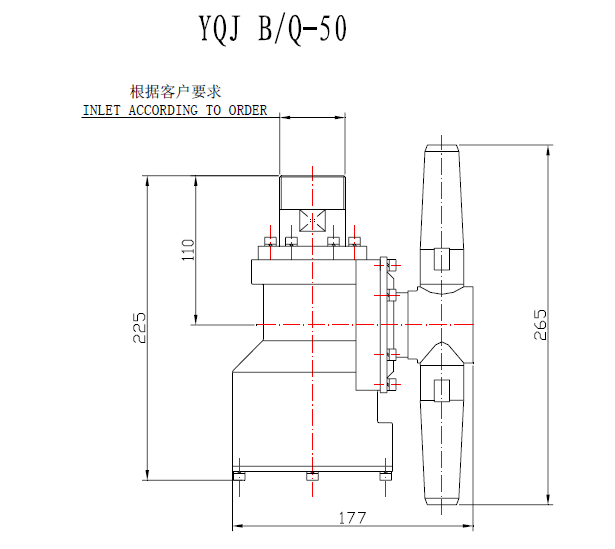

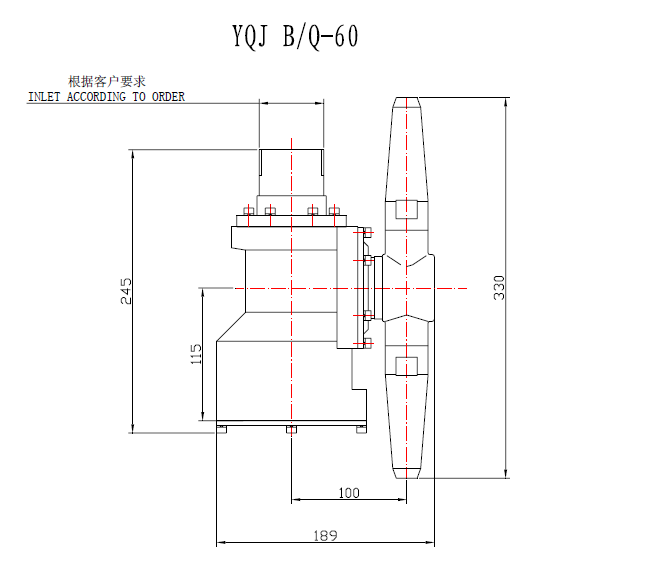

Apperance Dimesion:
Model & Specification:
| Model | Nozzle (mm) | Working Pressure | Flow （m³/h） | Range | ||
| Rated | Deviation | Rated | Deviation | |||
| YQJ7B-50 | 7 | 0.8 | 12 | ±5% | 10.5 | 0-10% |
| 0.7 | 11 | 9.5 | ||||
| 0.6 | 10 | 8.5 | ||||
| YQJ8B-50 | 8 | 0.8 | 13 | ±5% | 12 | 0-10% |
| 0.7 | 12 | 11 | ||||
| 0.6 | 11 | 10 | ||||
| YQJ9B-50 | 9 | 0.8 | 14 | ±5% | 13 | 0-10% |
| 0.7 | 13 | 12 | ||||
| 0.6 | 12 | 11 | ||||
| YQJ10B-50 | 10 | 0.8 | 16 | ±5% | 14 | 0-10% |
| 0.7 | 15 | 13 | ||||
| 0.6 | 14 | 12 | ||||
| YQJ11B-60 | 11 | 0.8 | 26 | ±5% | 15 | 0-10% |
| 0.7 | 24 | 13 | ||||
| 0.6 | 21 | 12 | ||||
| YQJ12B-60 | 12 | 0.8 | 29 | ±5% | 16 | 0-10% |
| 0.7 | 27 | 14 | ||||
| 0.6 | 24 | 13 | ||||
| YQJ13B-60 | 13 | 0.8 | 33 | ±5% | 18 | 0-10% |
| 0.7 | 30 | 16 | ||||
| 0.6 | 27 | 15 | ||||
| YQJ14B-60 | 14 | 0.8 | 36 | ±5% | 20 | 0-10% |
| 0.7 | 33 | 18 | ||||
| 0.6 | 30 | 16 | ||||
