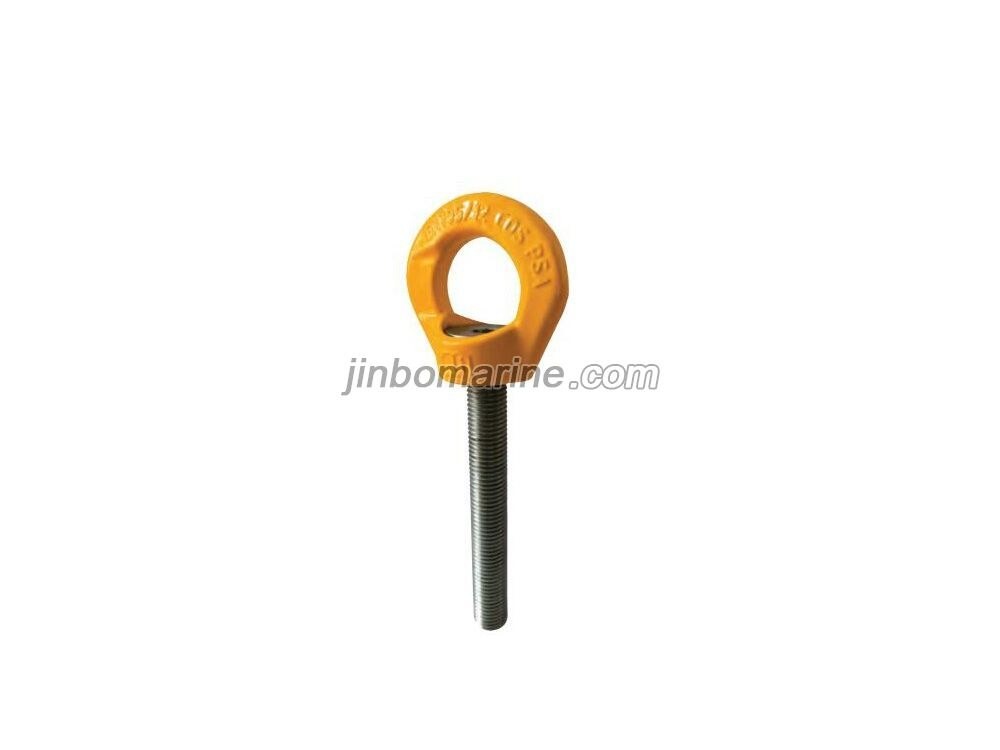

PSA-16 Duplex Stainless Steel Eye Bolt

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

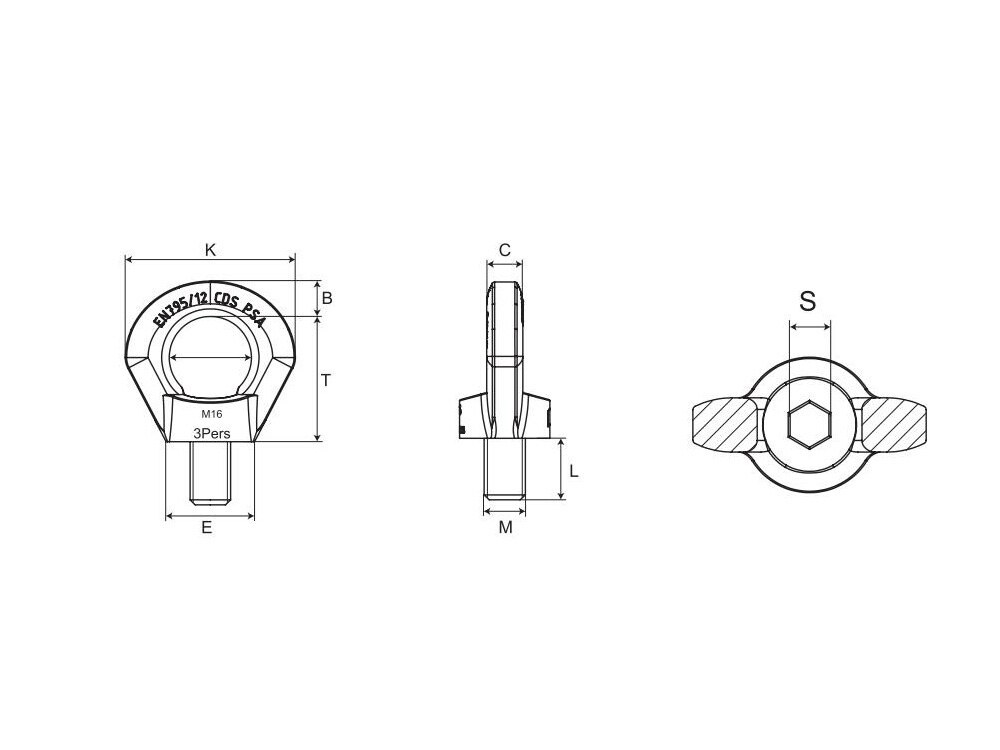

PSA-16 Duplex Stainless Steel Eye Bolt Drawing

PSA-16 Duplex Stainless Steel Eye Bolt Parameters

Model Number Weight/kg Technical/mm
B C
PSA-16 3 0.3 14 14
PSA-16L 3 0.45 14 14
Model Technical/mm
E K T
PSA-16 35 67 32.5
PSA-16L 35 67 32.5
Model Technical/mm
L M S
PSA-16 25 16 10
PSA-16L 120 16 10
