PVHB300-25ACM 750m3 per Hour Marine Vertical Centrifugal Ballast Water Pump

Request a Quote Not what you need, please send your RFQs via Email.

Details

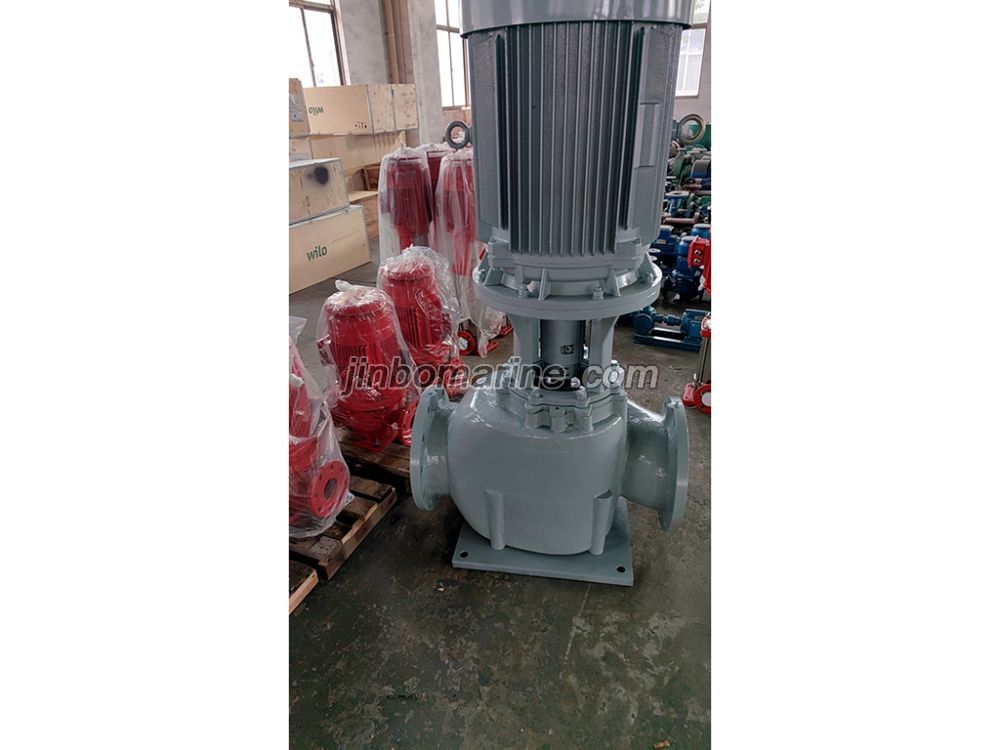

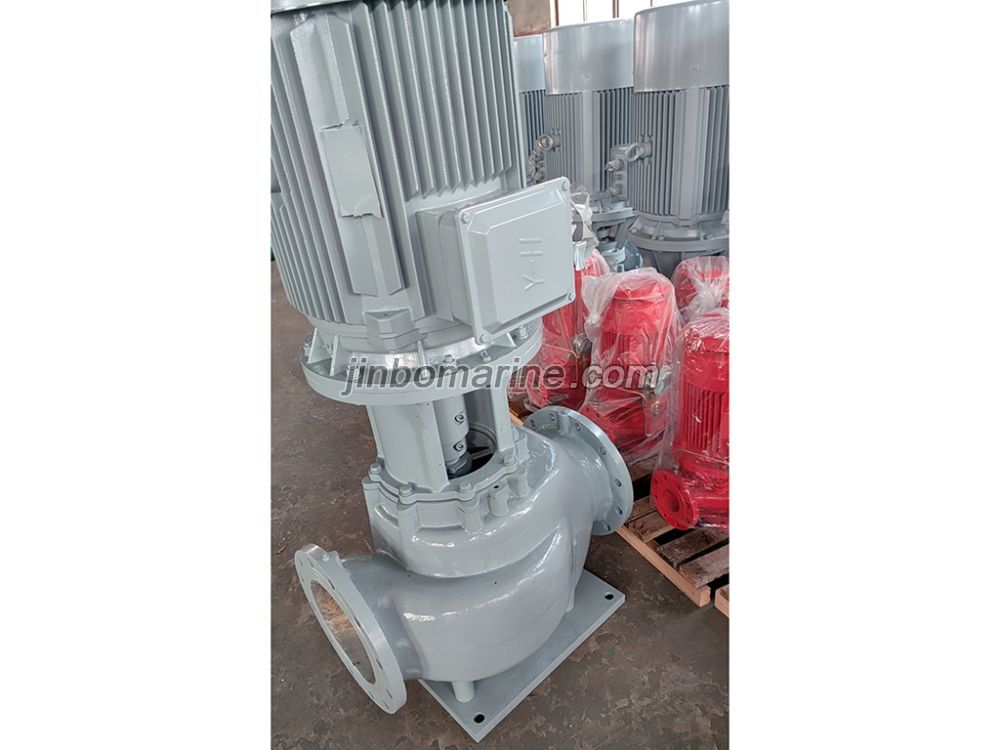

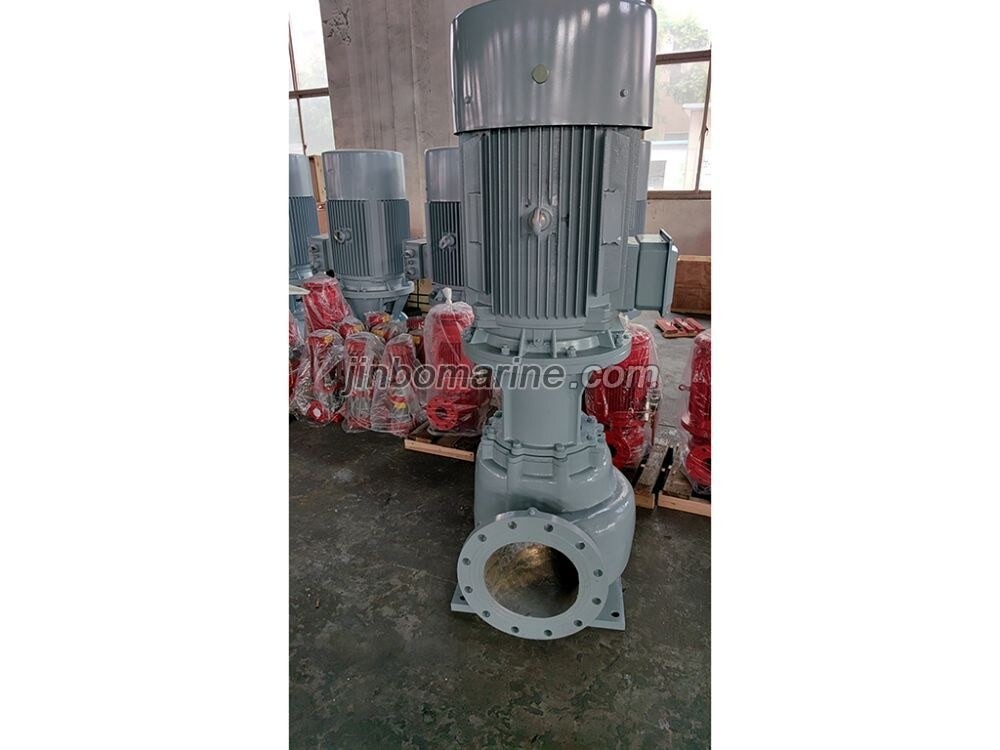

PVHB300-25ACM Marine Vertical Centrifugal Ballast Water Pump

This series of products boldly breaks through the design as a whole. The pump shaft adopts an independent support body, solving the shortcomings of the original ISG and ISW pump extended shaft supported by motor bearings. The impeller and pump body are designed and manufactured using modern excellent hydraulic models, eliminating the axial and radial forces of vertical pumps. The bearings at the pump shaft and motor bearings are only subjected to weak axial and radial forces. The motor adopts the Y series standard motor, and the entire pump adopts a detachable structure, solving the problem of inconvenient replacement of vulnerable parts such as bearings, mechanical seals, and impellers for high-power pumps.

Compared with current domestic products, this series of pumps has irreplaceable advantages such as smoother operation, longer service life, more convenient matching, and easier maintenance. It is the most ideal product to replace conventional centrifugal pumps such as ISG vertical pumps, IS centrifugal pumps, and S-type double suction pumps.

Techincal data:

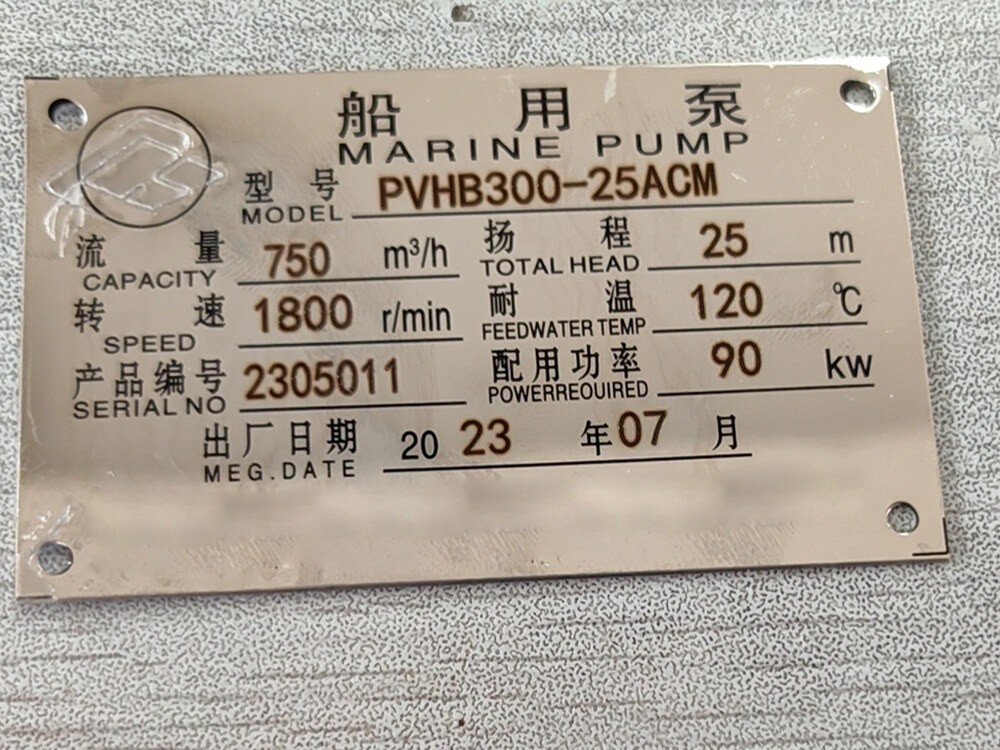

MODEL PVHB300-25ACM
CAPACITY 750M3/h
TOTAL HEAD 25m
SPEED 1800r/min
FEEDWATER TEMP 120℃
POWER RECUIRED 90KW
