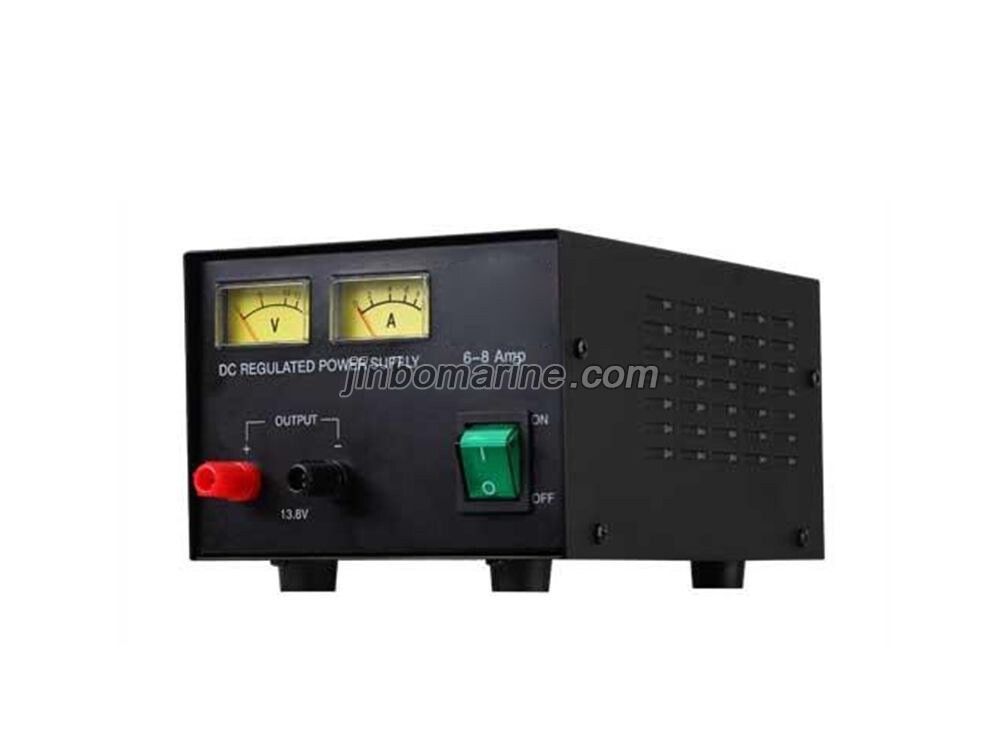

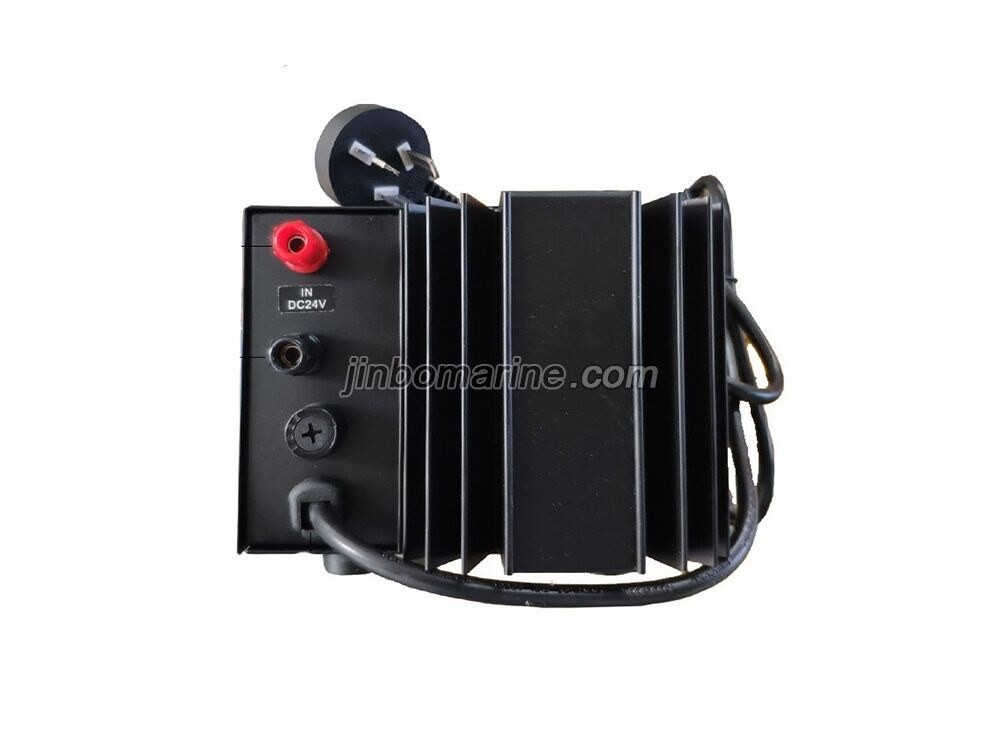

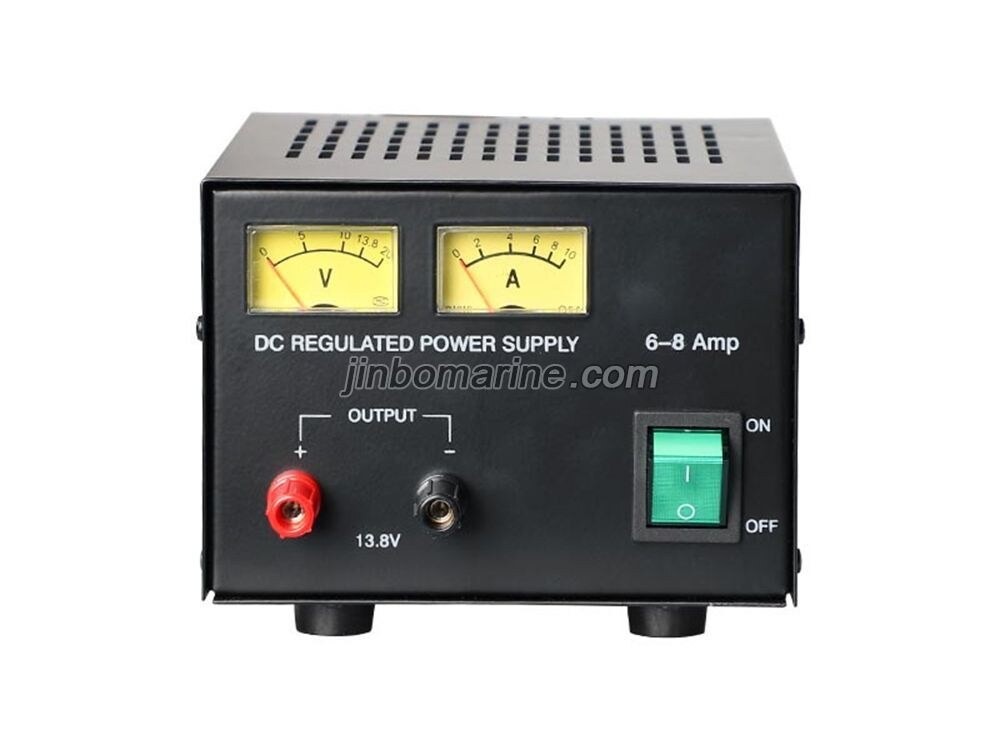

QJ1606A QJ1606B Marine DC regulated power supply

Request a Quote Not what you need, please send your RFQs via Email.

Details

Product Features

This power supply is carefully designed for the use of various high-frequency walkie talkies and radio communication stations. It uses mature and reliable electronic circuits, and the main components are made of imported materials. It has good voltage stability, small ripple coefficient, short circuit protection, overvoltage protection, good product technology, and easy maintenance. It is an ideal power supply for high-frequency communication machines.

Techincal data:

①Model: QJ-1806A

②Output voltage: DC13.8V±0.5V Ripple voltage:<15mV

③Voltage regulation rate:<1.5% Output current: 6-8A

④Input voltage: AC220V DC21V-32V Overvoltage protection: 16V±0.5V

⑤Product size: 140mm (width) * 250mm (length) * 110mm (height)
