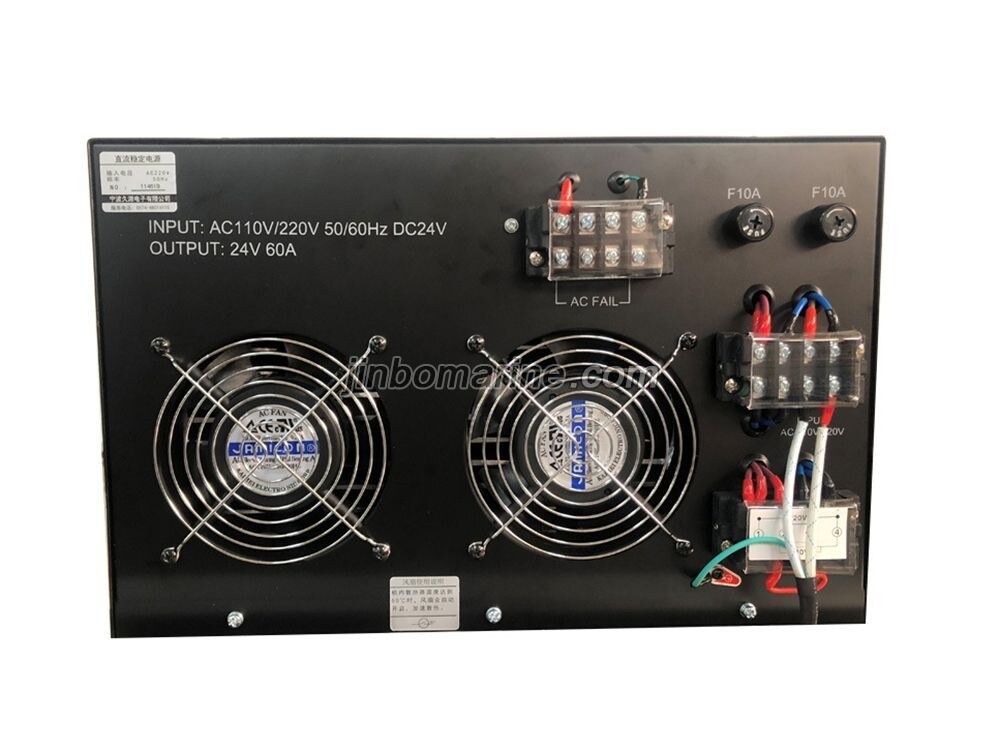

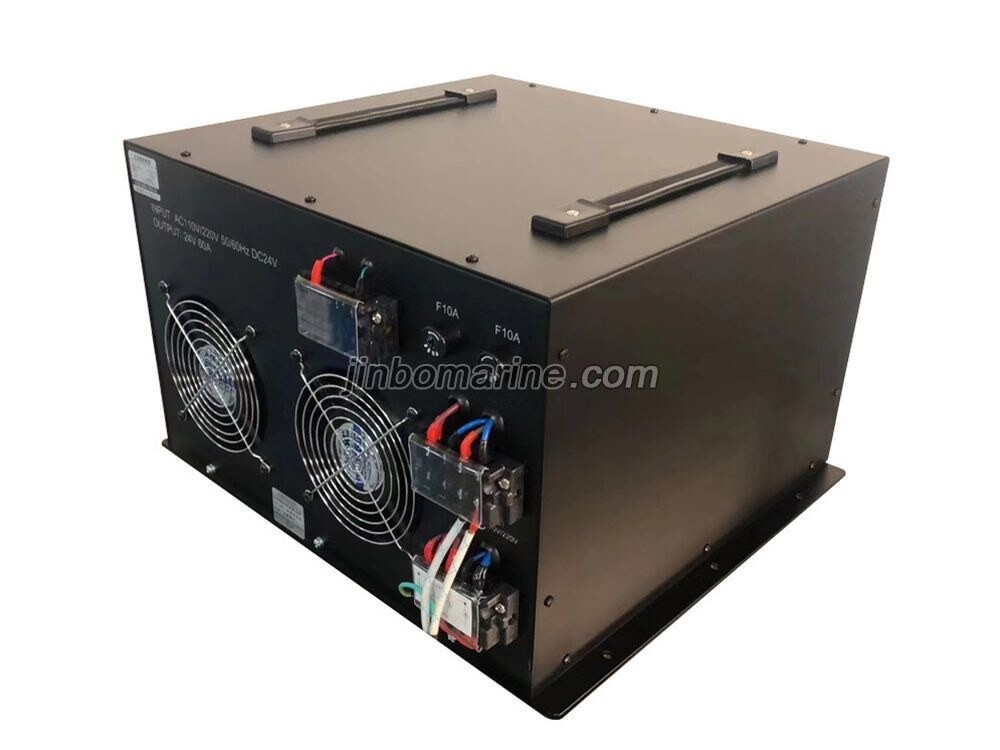

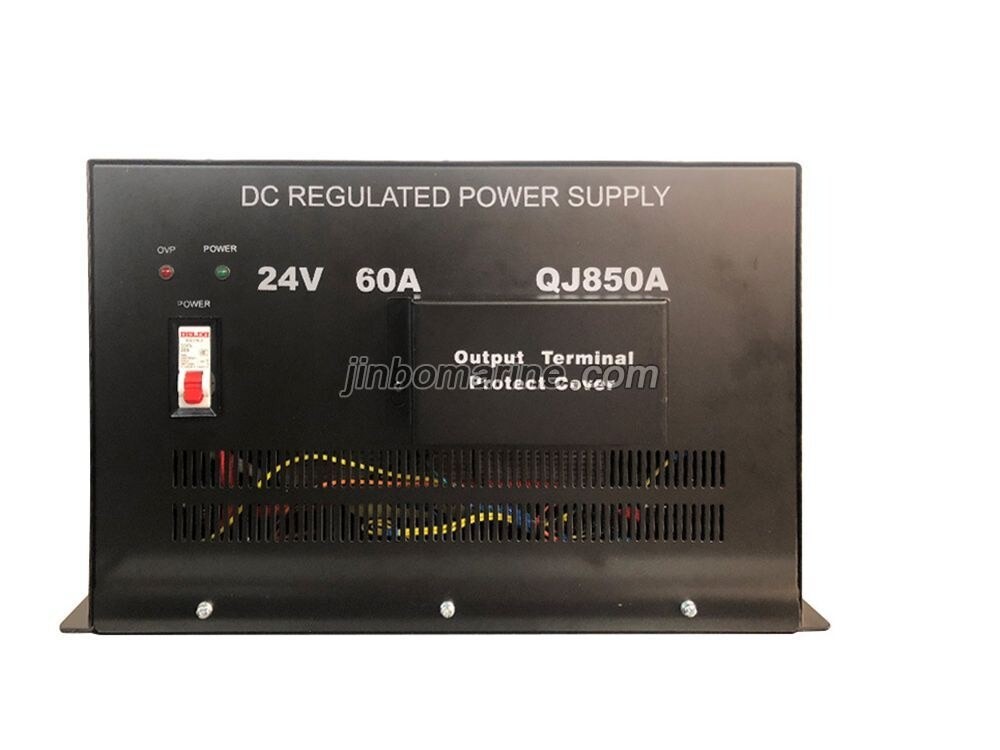

QJ850A Marine DC regulated power supply

Request a Quote Not what you need, please send your RFQs via Email.

Details

1. Scope and characteristics of use

QJ850A power supply is designed to provide DC power supply supporting products for large ship combination stations. The main feature of this product is that it has made a large correction on the basis of the original power supply product, which has greatly improved the internal process and reliability of this product. It can be combined with the company's product QJ6158 charger to become a complete set of combined radio DC power supply system.

2. Technical parameters

Working environment temperature: -10-40C°

Relative humidity: 40C°(20-90)%RH

Atmospheric pressure: 86-106KPA

Input voltage: AC220V/110V10% DC 24V-28.5V

Output voltage: DC 24V±0.5(AC220V input)

Output current: 60A Ripple and noise:≤20mv

Electrical strength: 1500V 5MΩ(no breakdown within 1 minute)

Output terminal and chassis (shell) insulation resistance≥20MΩ

Dimensions: 380×248×360mm

Weight: 35Kg

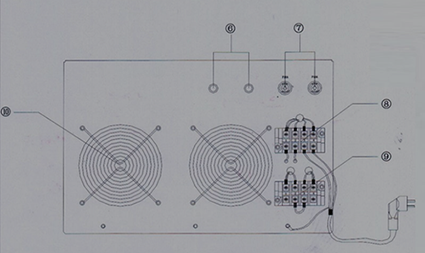

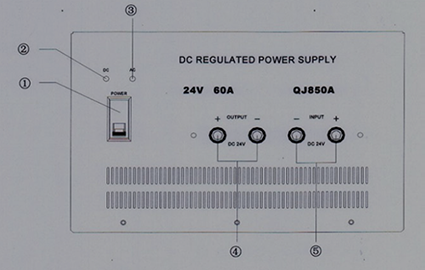

Panel function diagram

① POWER switch (POWER): When the power switch is set to the ON state, the power is switched on.

②DC power indicator: Indicates the working status of the input DC power supply

③AC FALD: Indicates the operating status of the AC input power supply

④DC output positive and negative terminals: Connect to the DC power cable of the combined radio station

⑤DC input positive and negative terminals: Connect to the charger standby DC power supply

⑥ External alarm interface: When the AC voltage is lost, the relay in the machine is closed, and the external alarm will work.

⑦ Fuse :10A

⑧AC AC input terminal

⑨110V/220V conversion terminal

⑩ Fan

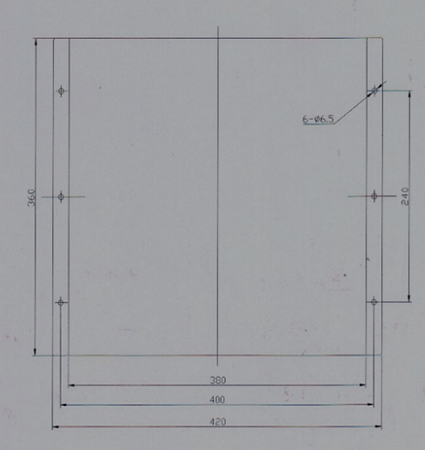

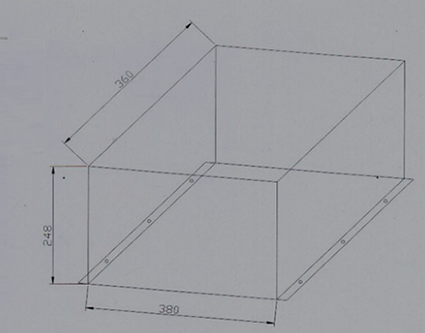

Installation size:
