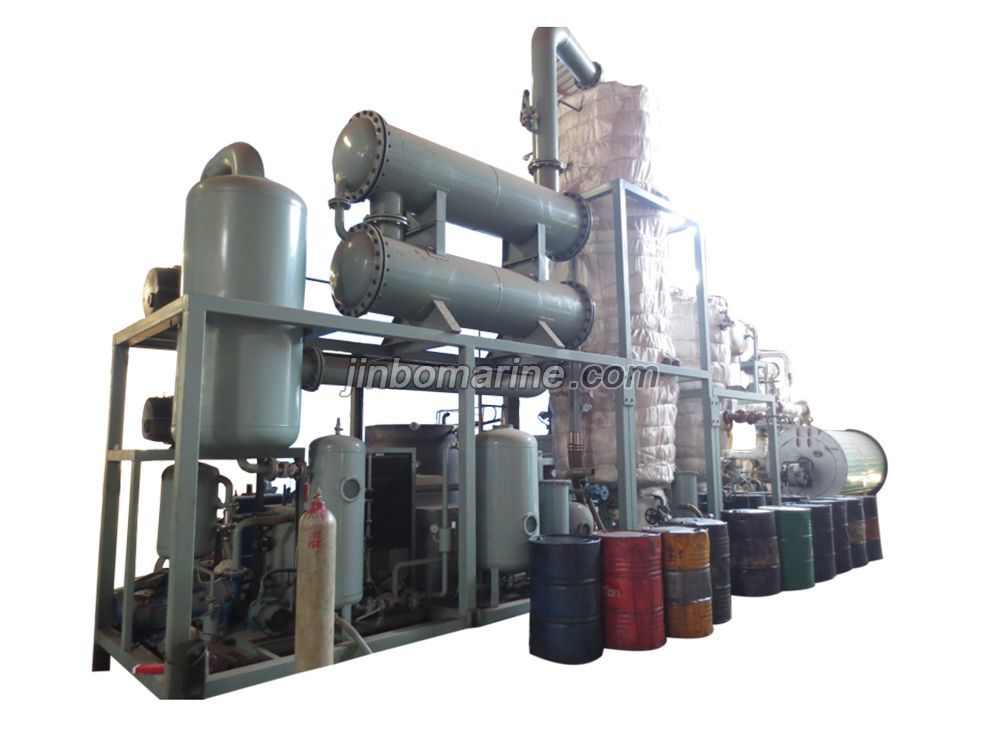

China QNF Series Waste Lubricating Oil Regeneration System:

QNF series waste lubricating oil regeneration system:

For the recovery of a variety of waste used lubricating oil, steel rolling oil, such as the regeneration of the decolorization reduction treatment can also be used to deal with other mineral waste recycling decolorization treatment.

Technical features:

1, the use of special "deodorant deodorant" chemical agent, to eliminate the waste oil in the polarity of the charge between particles, so that the particles into large particles of impurities, the oil in the gum, asphalt, particulate impurities, such as precipitation.

2, improve the vacuum degassing and dehydration system and exhaust gas cleaning system, effectively remove the oil in the water and harmful gases.

3, the use of corrosion resistance, high temperature resistance, good mechanical strength, long service life of high precision filtration system.

4, advanced heat conduction oil heating system, with rapid heating, stable oil temperature, uniform heating, etc..

5, compact structure, reasonable layout, simple operation. This machine can be used for a wide range of applications, to meet a variety of personalized customer requirements.

6, oil purification effect is obvious, can be black, smelly oil refined into a clear and transparent, no peculiar smell of oil.

Technical data:

QNF series waste lubricating oil regeneration system
Item QNF-Ⅰ QNF -Ⅱ QNF -Ⅲ QNF -Ⅳ
Capacity(Kg/d) 3000 5000 8000 12000
Rate of recovery
(%)
70-95%(According to the degree of oil pollution)
Working pressure(Mpa) ≤0.4-0.6
Vacuum degree(Mpa) -0.06~-0.095
Thermal oil temperature(℃) 200
Oil temperature(℃) 120
