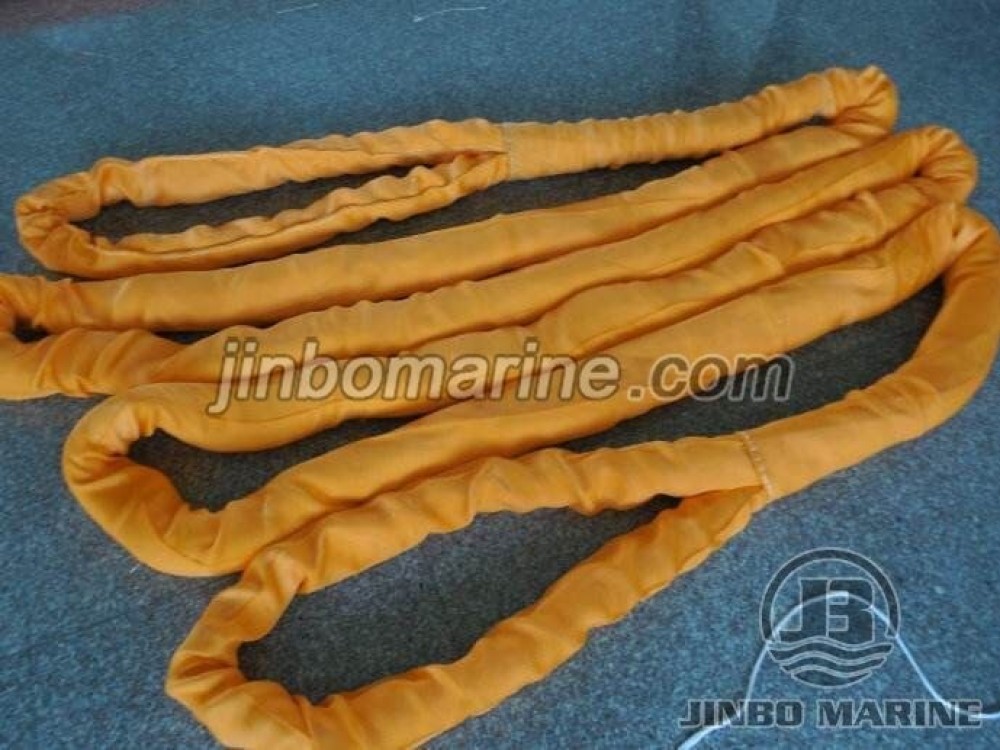

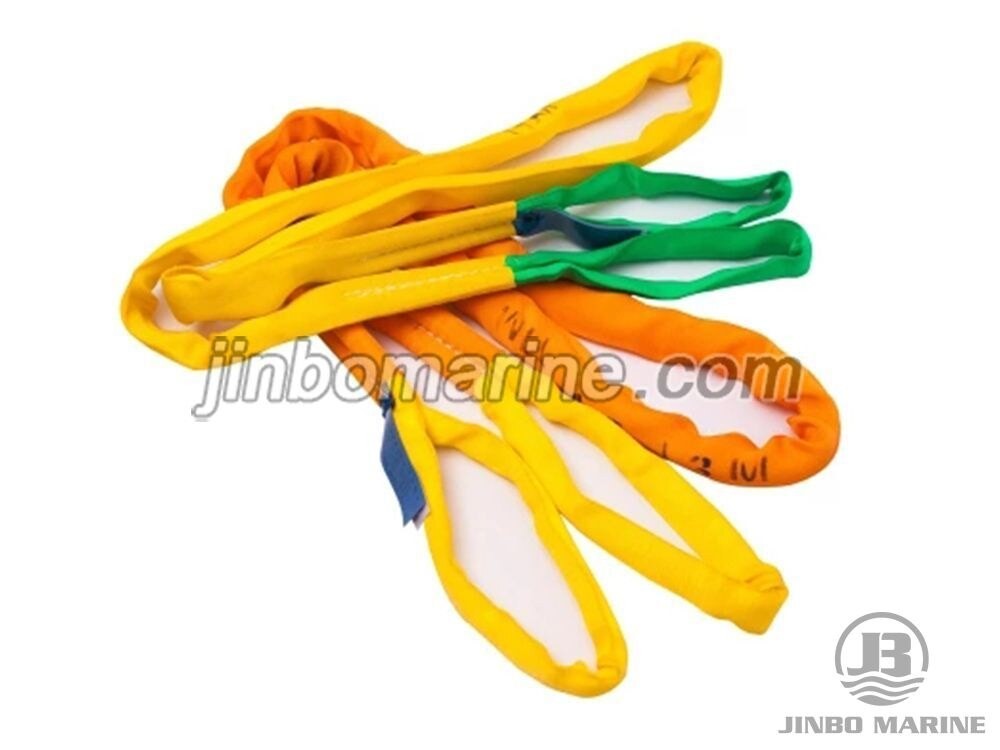

R02 Protection Type Round Flexible Sling

  • Category:Chain Sling
  • Material:Cotton, nylon, synthetic fiber, polyester fiber
  • Standards:JB/T8521.1-2007
  • Certificate:CNAS, API, CCS, DNV.GL, KR, BV, CE, PCT.GOST, JIS, GS
  • Packing Details:Carton and composite pallet
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.

Details

Description:


Conventional slings (synthetic fiber slings), generally made of high-strength polyester filaments, have multiple advantages of high strength, abrasion resistance, oxidation resistance, UV resistance, etc., while the texture is soft, non-conductive, non-corrosive (no human body Any damage) is widely used in various fields. There are many types of slings. Conventional slings (according to the sling appearance) are divided into four categories: ring-through core, ring flat, double-eye through-core, and double-eye flat.

Feature:

(1) Light weight, good flexibility, easy to bend, and easy to use;
(2) It does not damage the appearance of the object being hoisted, and it is highly maintainable;
(3) The lifting is stable and the safety factor is high;
(4) It has high tensile strength, beautiful color and easy to distinguish;
(5) is an insulator;
(6) The sling belt has long service life and good corrosion resistance and wear resistance;
(7) Progressive obedience and cost savings;

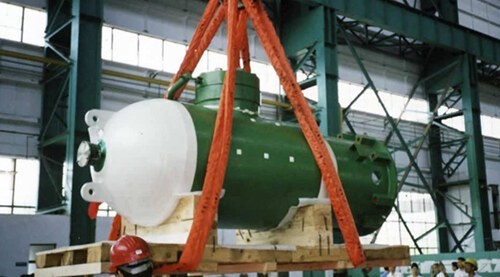

(8) It is widely used in aviation, aerospace, nuclear power establishment, military manufacturing, port loading and unloading, power equipment, machine processing, chemical steel, shipbuilding, transportation and other fields.

Data Sheet:


Art.No. Working Load Limit(kg) Approx Thickness(mm) Approx Width(mm) Minimum length L(m)
R02-01 1000 6 40 0.5
R02-02 2000 7 50 0.5
R02-03 3000 8 60 0.5
R02-04 4000 9 70 0.5
R02-05 5000 11 75 0.5
R02-06 6000 12 80 1
R02-08 8000 13 90 1
R02-10 10000 15 100 2
R02-12 12000 16 110 2
R02-15 15000 18 125 2
R02-20 20000 20 150 2.5
R02-25 25000 24 180 2.5
R02-30 30000 32 200 2.5
R02-40 40000 40 200 2.5
R02-50 50000 45 220 2.5
R02-60 60000 65 240 4
R02-80 80000 70 260 4
R02-100 100000 80 290 4
R02-200 200000 120 450 5
R02-300 300000 160 525 5
R02-400 400000 200 670 5
R02-500 500000 220 750 8
R02-600 600000 240 820 8
R02-700 700000 260 870 8
R02-800 800000 280 930 9
R02-900 900000 300 990 9
R02-1000 1000000 320 1050 9
