R3 Offshore Stud Link Mooring Chain

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

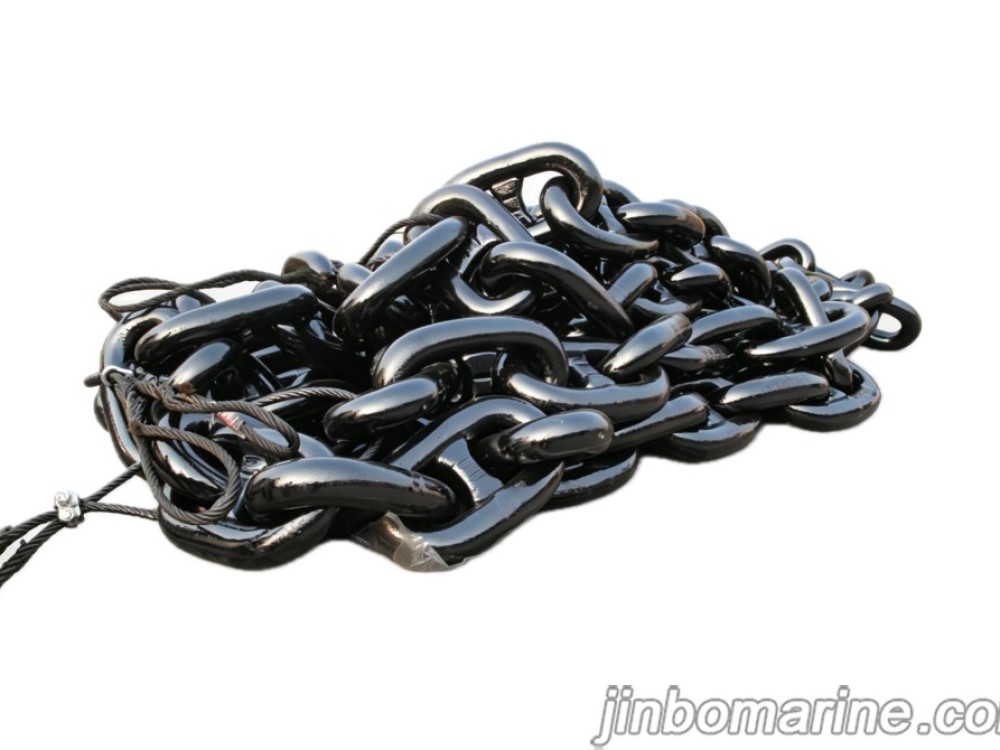

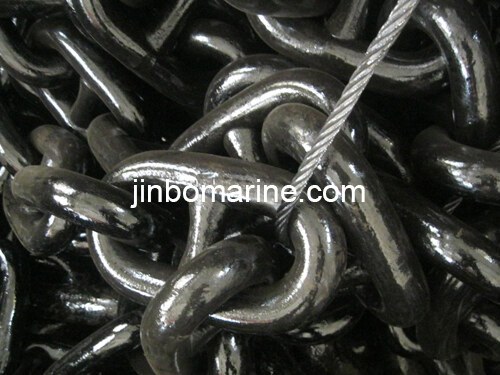

China R3 Offshore Stud Link Mooring Chain:

R3 Offshore Stud Link Mooring Chain is available in all sizes from 76mm to 185mm, our mooring chain approved by LR, ABS, DNV, GL, BV, RINA, NK, KR and API. All chains have a wormanlike finish consistent of methods of manufacture and be free from defects.

Welding of Studs

A welded stud is for grade R3 and R3S chains, and welding procedure is made by qualified welders, the welds is good quality and free from defects such as cracks, lack of fusion, gross porosity and undercuts exceeding 1mm(1/21in).

Main specification:

Size: 76mm to 185mm

Grade: R3

Certificate: LR, ABS, DNV, GL, BV, RINA, NK, KR,API.

Proof Load and Breaking Load(KN)

Dia. Break Load (KN) Proof Load(KN) Weight
R3S R3 API R3S R3 DNV R3 API
Stud Stud Stud Stud Stud
mm KN KN KN KN KN KN KN Kgs/m
19 382 342 324 276 239 227 285 8
20.5 443 397 376 320 278 263 249 9
22 509 456 431 368 319 303 286 11
24 604 541 511 436 378 359 339 13
26 706 632 598 510 442 419 397 15
28 815 730 691 589 511 485 458 17
30 932 835 790 674 584 554 524 20
32 1057 946 895 764 662 628 594 22
34 1188 1064 1007 859 744 706 668 25
36 1327 1188 1124 959 831 789 746 28
38 1473 1319 1248 1065 923 875 828 32
40 1625 1456 1377 1175 1018 966 914 35
42 1785 1599 1513 1290 1118 1061 1004 39
44 1951 1748 1654 1411 1223 1160 1097 42
46 2124 1903 1800 1536 1331 1263 1194 46
48 2304 2063 1952 1666 1443 1369 1295 50
50 2490 2230 2110 1800 1560 1480 1400 55
52 2682 2402 2273 1939 1681 1594 1508 59
54 2881 2580 2441 2083 1805 1712 1620 64
56 3086 2764 2615 2231 1933 1834 1735 69
58 3297 2953 2794 2383 2066 1960 1854 74
60 3514 3147 2978 2540 2201 2089 1976 79
62 3737 3347 3166 2701 2341 2221 2101 84
64 3965 3551 3360 2867 2484 2357 2230 90
66 4200 3761 3559 3036 2631 2496 2361 95
68 4440 3976 3762 3209 2782 2639 2496 101
70 4685 4196 3970 3387 2935 2785 2634 107
73 5064 4535 4291 3660 3172 3010 2847 117
76 5454 4884 4621 3942 3417 3242 3066 126
78 5720 5123 4847 4135 3584 3400 3216 133
81 6130 5490 5194 4431 3840 3643 3446 144
84 6550 5866 5550 4735 4104 3893 3683 155
87 6981 6252 5916 5046 4374 4149 3925 166
90 7422 6647 6289 5365 4650 4412 4173 177
92 7722 6916 6544 5582 4838 4590 4342 185
95 8180 7326 6932 5913 5125 4862 4599 198
97 8490 7604 7195 6138 5319 5047 4774 206
100 8964 8028 7596 6480 5616 5328 5040 219
102 9285 8315 7868 6712 5817 5519 5220 228
105 9773 8753 8282 7065 6123 5809 5495 241
107 10103 9048 8561 7304 6330 6005 5681 251
111 10775 9650 9130 7789 6750 6404 6058 270
114 11287 10109 9565 8159 7071 6709 6346 285
117 11807 10574 10005 8535 7397 7018 6639 300
120 12334 11047 10452 8916 7728 7331 6935 315
122 12690 11365 10753 9173 7950 7542 7135 326
124 13048 11686 11057 9432 8175 7755 7336 337
127 13591 12171 11516 9824 8515 8078 7641 353
130 14139 12663 11981 10221 8858 8404 7950 370
132 14508 12993 12294 10488 9089 8623 8157 382
137 15441 13829 13085 11162 9674 9178 8682 411
142 16388 14677 13887 11847 10267 9741 9214 442
147 17347 15536 14700 12540 10868 10311 9753 473
152 18317 16405 15522 13241 11476 10887 10299 506
157 19297 17282 16352 13949 12089 11469 10850 540
162 20284 18166 17188 14663 12708 12056 11405 575
165 20879 18699 17693 15094 13081 12410 11739 596
168 21477 19234 18199 15523 13455 12765 12075 618
171 22076 19771 18707 15959 13831 13121 12412 640
175 22877 20488 19368 16538 14333 13598 12863 671
178 23479 21027 19896 16972 14709 13955 13201 694
180 23880 21387 20236 17263 14961 14194 13427 710
185 24884 22286 21087 17989 15590 14791 13991 750
