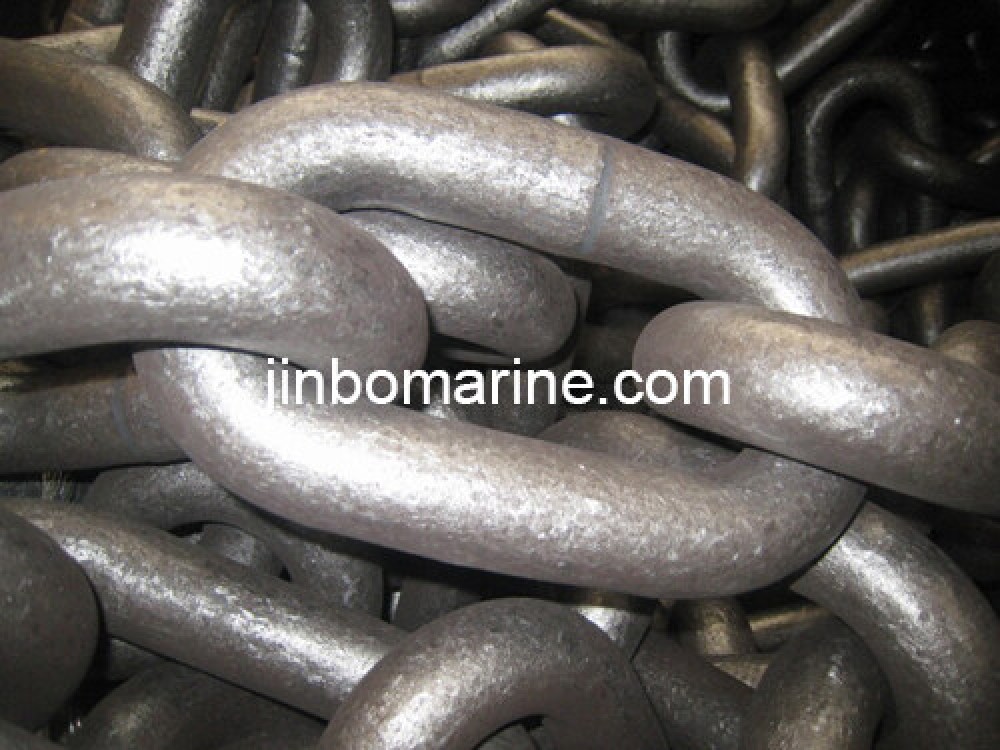

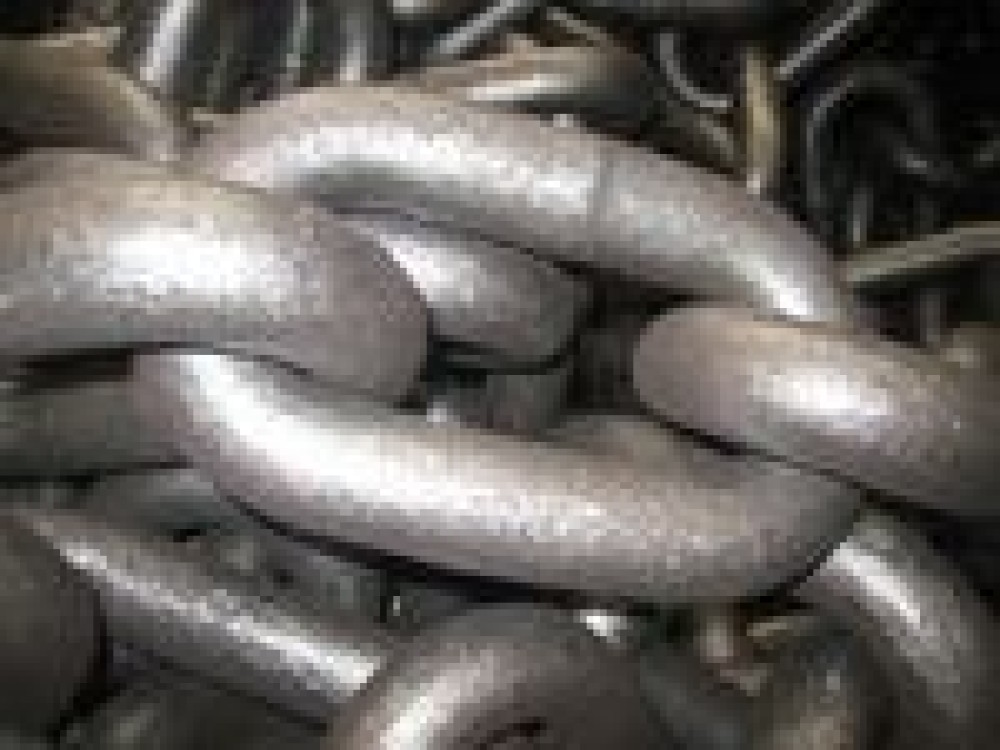

R3 Offshore Studless Link Mooring Chain

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China R3 Offshore Studless Link Mooring Chain:

R3 Studless Link Mooring Chain is available in different size from 36mm to 162mm, this chains is commonly used for mooring system permanently.

Main Specification:

Size: 36mm-162mm

Grade: R3

Finish: Black Painted.

Certificate: LR, ABS,BV, GL, RINA, DNV, NK, KR, CCS

Poof Load for R3 Studless Link Mooring Chain

Dia. Breaking Load Proof Load
R3 API R3 DNV R3 API
Stud/Studless Stud/Studless Stud/Studless Studless
Mm. kN kN kN kN kN Kgs/m
19 342 324 239 227 285 7
20.5 397 376 278 263 249 8
22 456 431 319 303 286 10
24 541 511 378 359 339 12
26 632 598 442 419 397 14
28 730 691 511 485 458 16
30 835 790 584 554 524 18
32 946 895 662 628 594 20
34 1064 1007 744 706 668 23
36 1188 1124 831 789 746 26
38 1319 1248 923 875 828 29
40 1456 1377 1018 966 914 32
42 1599 1513 1118 1061 1004 35
44 1748 1654 1223 1160 1097 39
46 1903 1800 1331 1263 1194 42
48 2063 1952 1443 1369 1295 46
50 2230 2110 1560 1480 1400 50
52 2402 2273 1681 1594 1508 54
54 2580 2441 1805 1712 1620 58
56 2764 2615 1933 1834 1735 63
58 2953 2794 2066 1960 1854 67
60 3147 2978 2201 2089 1976 72
62 3347 3166 2341 2221 2101 77
64 3551 3360 2484 2357 2230 82
66 3761 3559 2631 2496 2361 87
68 3976 3762 2782 2639 2496 92
70 4196 3970 2935 2785 2634 98
73 4535 4291 3172 3010 2847 107
76 4884 4621 3417 3242 3066 116
78 5123 4847 3584 3400 3216 122
81 5490 5194 3840 3643 3446 131
84 5866 5550 4104 3893 3683 141
87 6252 5916 4374 4149 3925 151
90 6647 6289 4650 4412 4173 162
92 6916 6544 4838 4590 4342 169
95 7326 6932 5125 4862 4599 181
97 7604 7195 5319 5047 4774 188
100 8028 7596 5616 5328 5040 200
102 8315 7868 5817 5519 5220 208
105 8753 8282 6123 5809 5495 221
107 9048 8561 6330 6005 5681 229
111 9650 9130 6750 6404 6058 246
114 10109 9565 7071 6709 6346 260
117 10574 10005 7397 7018 6639 274
120 11047 10452 7728 7331 6935 288
122 11365 10753 7950 7542 7135 298
124 11686 11057 8175 7755 7336 308
127 12171 11516 8515 8078 7641 323
130 12663 11981 8858 8404 7950 338
132 12993 12294 9089 8623 8157 348
137 13829 13085 9674 9178 8682 375
142 14677 13887 10267 9741 9214 403
147 15536 14700 10868 10311 9753 432
152 16405 15522 11476 10887 10299 462
157 17282 16352 12089 11469 10850 493
162 18166 17188 12708 12056 11405 525
165 18699 17693 13081 12410 11739 545
168 19234 18199 13455 12765 12075 564
171 19771 18707 13831 13121 12412 585
175 20488 19368 14333 13598 12863 613
178 21027 19896 14709 13955 13201 634
180 21387 20236 14961 14194 13427 648
185 22286 21087 15590 14791 13991 685
