R4 Offshore Stud Link Mooring Chain
- Category:Stud Link Mooring Chain
- Material:Rolled Steel Bars
- Standards:ISO 1704/API
- Certificate:ABS, LR, BV, GL, RINA, DNV, NK, KR, CCS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

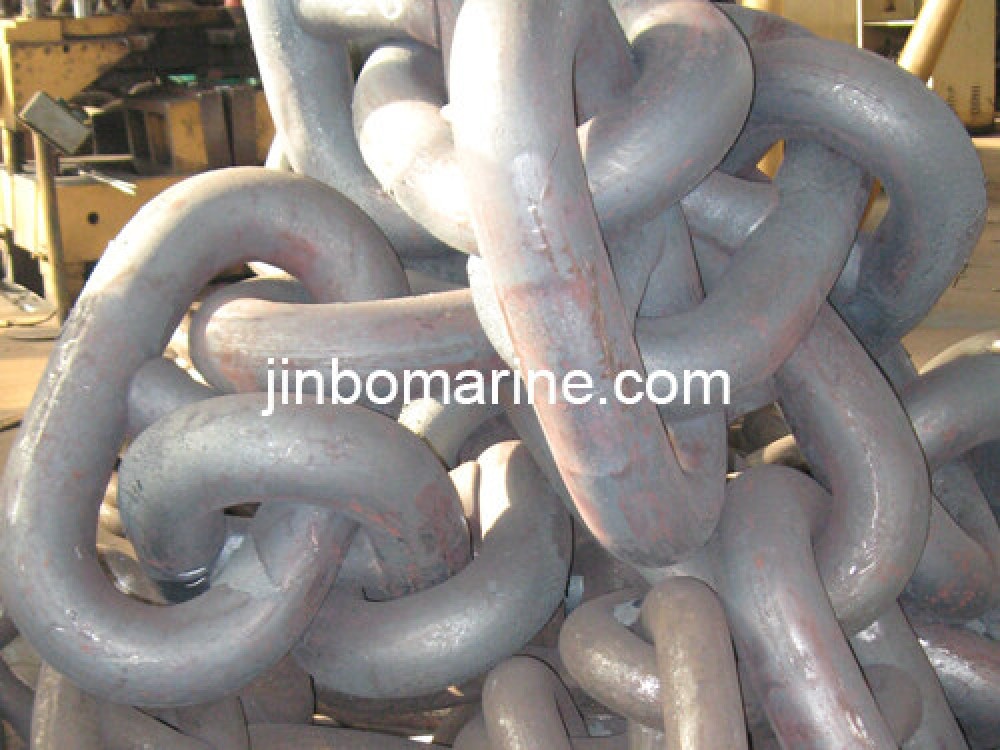

China R4 Offshore Stud Link Mooring Chain:
R4 Offshore Stud Link Mooring Chain can be used in extreme environment in the oil or gas offshore platform, the maximum diameter is up to 162mm, the proof load is up to 17596KN.

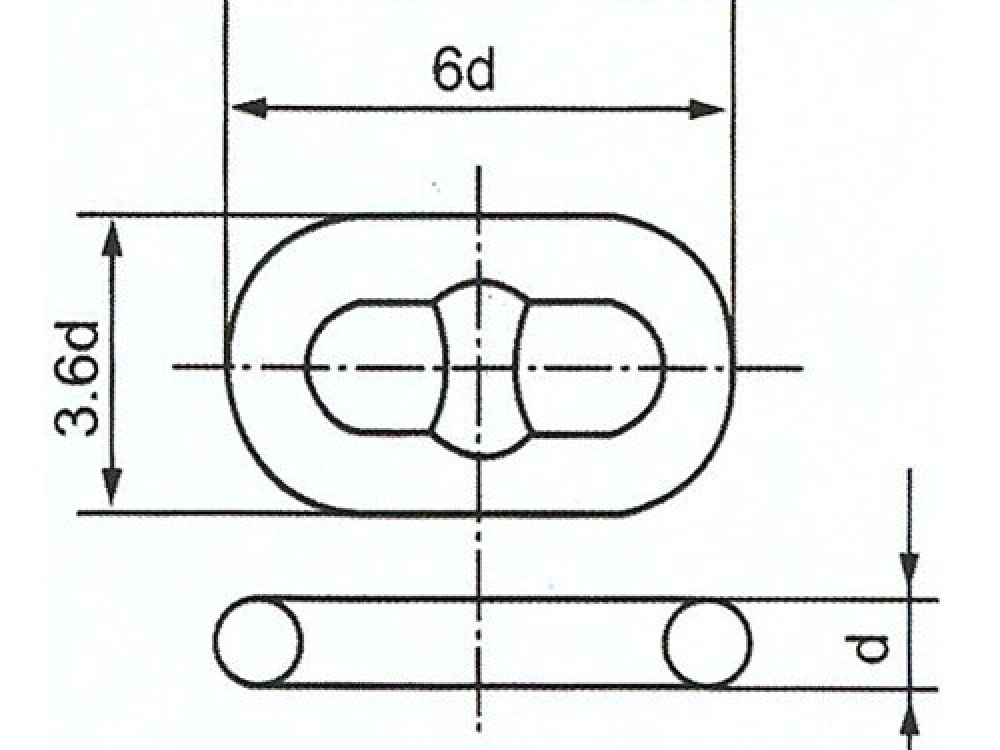

Main Specification:
Size: 34mm-162mm
Grade: R4
Finish: Black Painted.
Certificate: ABS, LR, BV, GL, RINA, DNV, NK, KR, CCS
Proof Load and Breaking Load for R4 offshore Stud Link Mooring Chain
| Chain Diameter | R4 | Weight | |
| Proof Load | Breaking Load | KG/M | |
| 34 | 1031 | 1308 | 25 |
| 36 | 1152 | 1461 | 28 |
| 38 | 1278 | 1621 | 32 |
| 40 | 1411 | 1789 | 35 |
| 42 | 1549 | 1965 | 39 |
| 44 | 1693 | 2148 | 42 |
| 46 | 1843 | 2338 | 46 |
| 48 | 1999 | 2536 | 50 |
| 50 | 2160 | 2740 | 55 |
| 52 | 2327 | 2952 | 59 |
| 54 | 2500 | 3171 | 64 |
| 56 | 2677 | 3396 | 69 |
| 58 | 2860 | 3628 | 74 |
| 60 | 3049 | 3867 | 79 |
| 62 | 3242 | 4112 | 84 |
| 64 | 3440 | 4364 | 90 |
| 66 | 3644 | 4622 | 95 |
| 68 | 3852 | 4886 | 101 |
| 70 | 4065 | 5156 | 107 |
| 73 | 4393 | 5572 | 117 |
| 76 | 4731 | 6002 | 126 |
| 78 | 4963 | 6295 | 133 |
| 81 | 5318 | 6746 | 144 |
| 84 | 5682 | 7208 | 155 |
| 87 | 6056 | 7682 | 166 |
| 90 | 6439 | 8168 | 177 |
| 92 | 6699 | 8498 | 185 |
| 95 | 7096 | 9002 | 198 |
| 97 | 7366 | 9343 | 206 |
| 100 | 7776 | 9864 | 219 |
| 102 | 8055 | 10217 | 228 |
| 105 | 8478 | 10755 | 241 |
| 107 | 8765 | 11118 | 251 |
| 111 | 9347 | 11857 | 270 |
| 114 | 9792 | 12421 | 285 |
| 117 | 10243 | 12993 | 300 |
| 120 | 10700 | 13573 | 315 |
| 122 | 11008 | 13964 | 326 |
| 124 | 11319 | 14358 | 337 |
| 127 | 11790 | 14956 | 353 |
| 130 | 12266 | 15559 | 370 |
| 132 | 12586 | 15965 | 382 |
| 137 | 13395 | 16992 | 411 |
| 142 | 14217 | 18034 | 442 |
| 147 | 15049 | 19089 | 473 |
| 152 | 15890 | 20157 | 506 |
| 157 | 16740 | 21235 | 540 |
| 162 | 17596 | 22321 | 575 |
