R4 Offshore Studless Link Mooring Chain
- Category:Studless Link Mooring Chain
- Material:Rolled Steel Bars
- Certificate:LR, ABS,BV, GL, RINA, DNV, NK, KR, CCS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

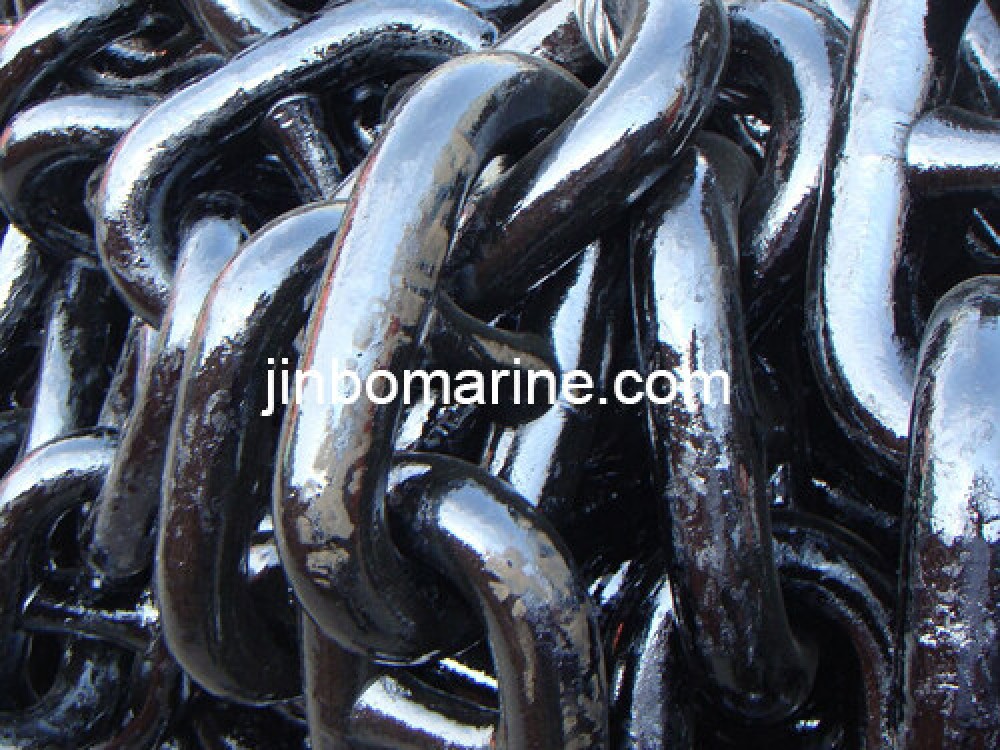

China R4 Offshore Studless Link Mooring Chain:
R4 Studless Link Mooring Chain has good performance for mooring system in the extreme seawater, the chains has been approved by Class Society.
Main Specification
Size: 34mm-162mm
Grade: R4
Finish: Black Painted.
Test report: LR, ABS,BV, GL, RINA, DNV, NK, KR, CCS
Proof Load for R4 Studless Link Mooring Chain
Chain Diameter | R3 | R3s | R4 | Weight | |||
Proof Load | Breaking Load | Proof Load | Breaking Load | Proof Load | Breaking Load | KGS/M | |
34 | 745 | 1065 | 831 | 1189 | 917 | 1308 | 23 |
36 | 832 | 1189 | 928 | 1327 | 1024 | 1461 | 26 |
38 | 923 | 1319 | 1030 | 1473 | 1136 | 1621 | 29 |
40 | 1019 | 1456 | 1136 | 1626 | 1254 | 1789 | 32 |
42 | 1119 | 1599 | 1248 | 1786 | 1377 | 1965 | 35 |
44 | 1223 | 1748 | 1364 | 1952 | 1505 | 2148 | 39 |
46 | 1331 | 1903 | 1485 | 2124 | 1639 | 2338 | 42 |
48 | 1444 | 2064 | 1610 | 2304 | 1777 | 2536 | 46 |
50 | 1560 | 2230 | 1740 | 2490 | 1920 | 2740 | 50 |
52 | 1681 | 2403 | 1875 | 2683 | 2069 | 2952 | 54 |
54 | 1806 | 2581 | 2014 | 2882 | 2222 | 3171 | 58 |
56 | 1934 | 2764 | 2157 | 3086 | 2380 | 3396 | 63 |
58 | 2066 | 2953 | 2304 | 3297 | 2543 | 3628 | 67 |
60 | 2202 | 3147 | 2456 | 3514 | 2710 | 3867 | 72 |
62 | 2342 | 3347 | 2612 | 3737 | 2882 | 4112 | 77 |
64 | 2485 | 3552 | 2771 | 3966 | 3058 | 4364 | 82 |
66 | 2632 | 3762 | 2935 | 4200 | 3239 | 4622 | 87 |
68 | 2782 | 3977 | 3103 | 4440 | 3424 | 4886 | 92 |
70 | 2936 | 4196 | 3274 | 4686 | 3613 | 5156 | 98 |
73 | 3173 | 4535 | 3539 | 5064 | 3905 | 5572 | 107 |
76 | 3417 | 4885 | 3812 | 5454 | 4206 | 6002 | 116 |
78 | 3584 | 5124 | 3998 | 5721 | 4411 | 6295 | 122 |
81 | 3841 | 5490 | 4284 | 6130 | 4727 | 6746 | 131 |
84 | 4104 | 5866 | 4578 | 6550 | 5051 | 7208 | 141 |
87 | 4374 | 6252 | 4879 | 6981 | 5383 | 7682 | 151 |
90 | 4651 | 6648 | 5187 | 7423 | 5724 | 8168 | 162 |
92 | 4838 | 6916 | 5397 | 7723 | 5955 | 8498 | 169 |
95 | 5125 | 7326 | 5717 | 8180 | 6308 | 9002 | 181 |
97 | 5320 | 7604 | 5934 | 8491 | 6547 | 9343 | 188 |
100 | 5616 | 8028 | 6264 | 8964 | 6912 | 9864 | 200 |
102 | 5817 | 8316 | 6489 | 9285 | 7160 | 10217 | 208 |
105 | 6123 | 8753 | 6830 | 9774 | 7536 | 10755 | 221 |
107 | 6330 | 9049 | 7061 | 10104 | 7791 | 11118 | 229 |
111 | 6751 | 9650 | 7530 | 10775 | 8309 | 11857 | 246 |
114 | 7072 | 10109 | 7888 | 11288 | 8704 | 12421 | 260 |
117 | 7398 | 10575 | 8251 | 11808 | 9105 | 12993 | 274 |
120 | 7728 | 11047 | 8620 | 12335 | 9511 | 13573 | 288 |
122 | 7951 | 11365 | 8868 | 12690 | 9785 | 13964 | 298 |
124 | 8175 | 11686 | 9118 | 13048 | 10062 | 14358 | 308 |
127 | 8515 | 12172 | 9498 | 13591 | 10480 | 14956 | 323 |
130 | 8859 | 12663 | 9881 | 14140 | 10903 | 15559 | 338 |
132 | 9090 | 12994 | 10139 | 14509 | 11188 | 15965 | 348 |
137 | 9674 | 13829 | 10791 | 15442 | 11907 | 16992 | 375 |
142 | 10268 | 14677 | 11452 | 16389 | 12637 | 18034 | 403 |
147 | 10869 | 15536 | 12123 | 17348 | 13377 | 19089 | 432 |
152 | 11476 | 16405 | 12800 | 18318 | 14125 | 20157 | 462 |
157 | 12090 | 17282 | 13485 | 19297 | 14880 | 21235 | 493 |
162 | 12708 | 18166 | 14175 | 20284 | 15641 | 22321 | 525 |
