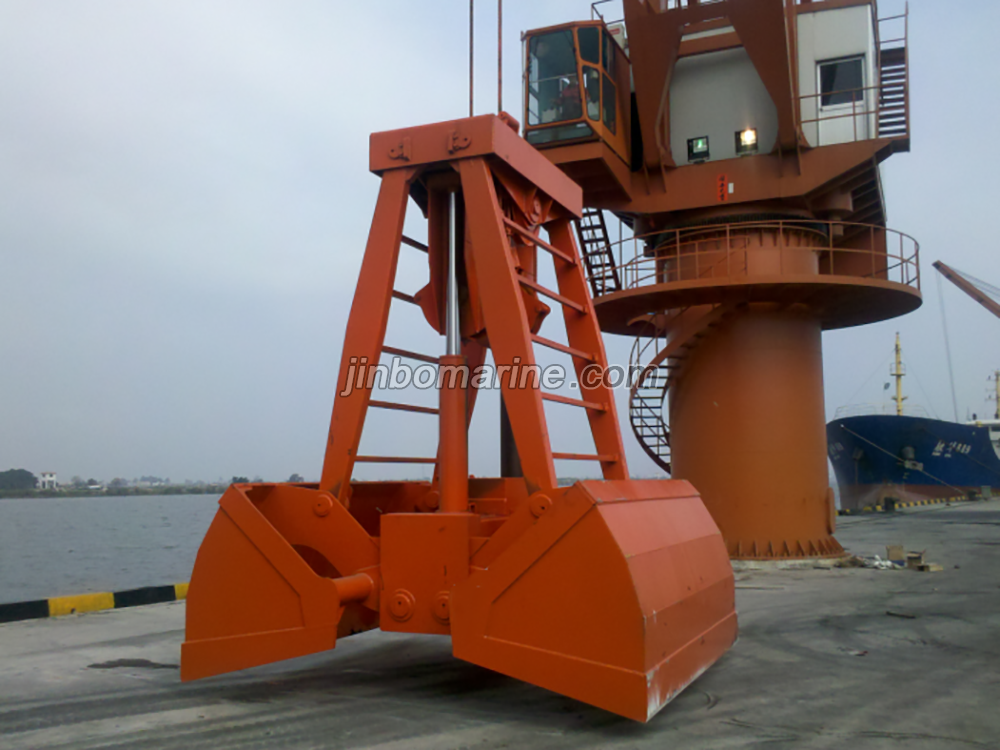

Radio Remote Control Grab Bucket

Request a Quote Not what you need, please send your RFQs via Email.

Details

Radio Remote Control Grab Bucket Working Principle

Radio remote control grab is a of research and development for a single hook crane, in port, bulk carriers and other work occasions in the slag, coal, sand and other granular materials in bulk and small block ideal tool. Its structure is reasonable, opening and closing mechanism is novel. On the basis of the single-rope grab structure, using the wireless remote controlled grab automatic open in the air, the full realization of single-rope grab in the air unloading. Application easy to operate, reliable and stable operation.

Radio Remote Control Grab Bucket Technical Specifications

Model Volume Grab self-weight Pulley Dia Steel rope Dia Rated lifting weight(t)
YK10[5]5 5 5 445 24 10
YK10[7]8.5 7 6.5 520 28 14
YK16[8]7.5 8 7.5 520 28 16
YK20[10]9 10 9 560 32 20
YK25[13]10 13 10 650 36 25
YK28[16]11 16 11 650 36 28
YK35[20]15 20 15 720 40 35
YK40[24]17 24 17 880 45 40

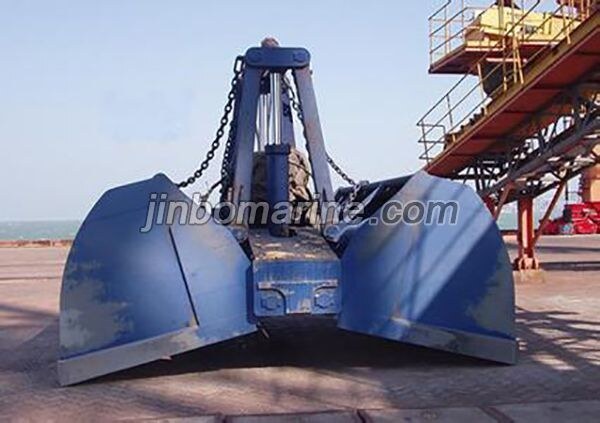

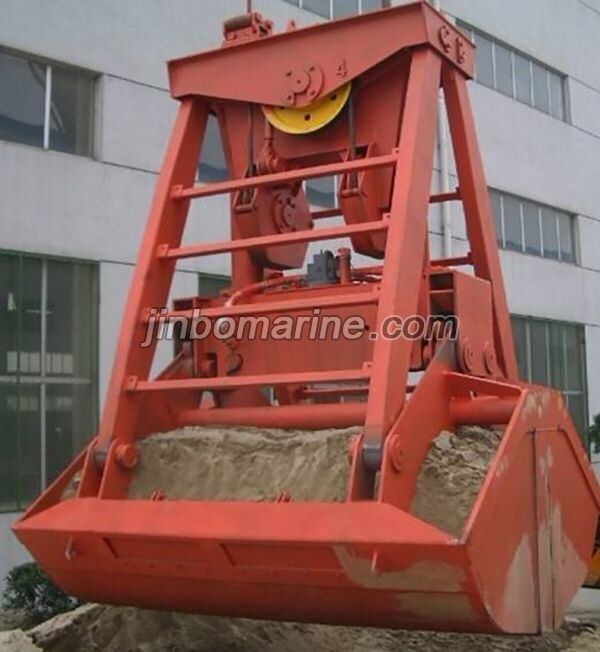

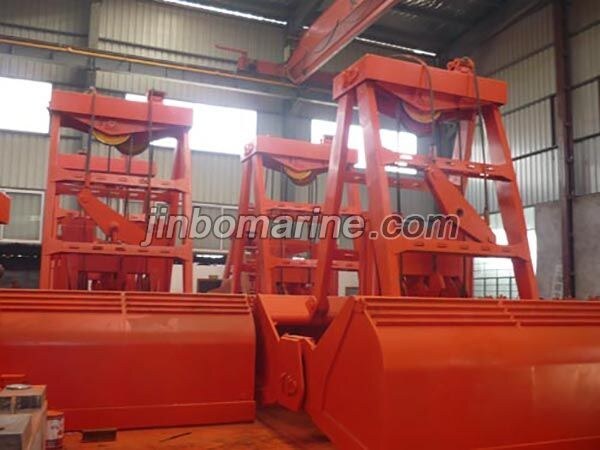

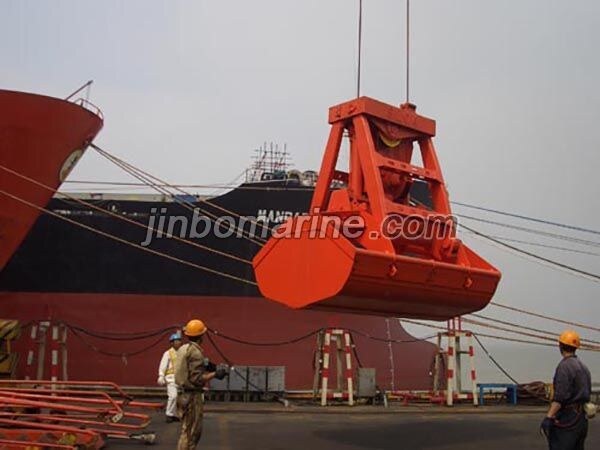

Radio Remote Control Grab Bucket Exhibition
