Ramshorn Hooks DIN15402
- Category:Hook
- Material:High Tensile Steel
- Standards:DIN15402
- Packing Details:Wooden Box
- Delivery Time:20 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Ramshorn Hooks DIN15402:
Ramshorn Hooks are popularly used in the marine lifting industry, specially for heavy loadings.
Two hooks design for the good load distribution, prevents lfting sling damage and chocking at the hooks.
Forged from high quality steel, our hooks can be supplied with safety catches if required and shank lengths can be forged to your particular specification to allow for machining requirements. Our hooks can be supplied as a forging only or we can machine them to your exact requirements. We can also manufacture the full assemblies complete with nut and collar.

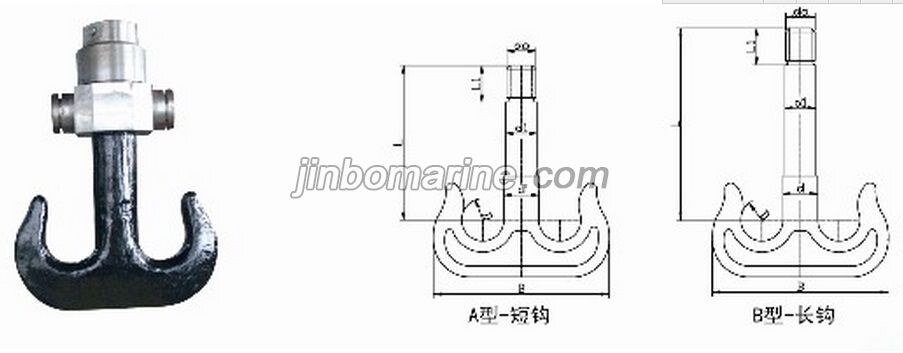

Ramshorn Hooks Specifiation
Sr. No. | SWL | Size(mm) | Weight(kgs) | |||||
B | D | d | d1 | d0 | Type A | Type B | ||
JB4801 | 16t | 460 | 115 | 95 | 85 | T80*10 | 41 | 55 |
JB4802 | 20t | 505 | 125 | 110 | 100 | T90*12 | 80 | 78 |
JB4803 | 25t | 590 | 145 | 125 | 100 | T100*12 | 90 | 112 |
JB4804 | 32t | 645 | 160 | 135 | 120 | T110*12 | 120 | 156 |
JB4805 | 40t | 740 | 180 | 160 | 140 | T120*16 | 159 | 200 |
JB4806 | 50t | 810 | 200 | 170 | 150 | T140*10 | 228 | 255 |
JB4807 | 80t | 980 | 250 | 200 | 180 | T170*16 | 400 | 472 |
JB4808 | 100t | 1100 | 280 | 220 | 200 | T180*20 | 580 | 620 |
JB4809 | 125t | 1390 | 300 | 230 | 200 | T200*20 | 1218 | -- |
JB4810 | 160t | 1490 | 350 | 240 | 220 | T220*20 | 1600 | -- |
JB4811 | 200t | 1510 | 350 | 260 | 240 | T240*24 | 2240 | -- |
JB4812 | 250t | 1680 | 400 | 280 | 260 | T260*24 | 2980 | -- |
