Rapid-deployed Oil Boom

Request a Quote Not what you need, please send your RFQs via Email.

Details

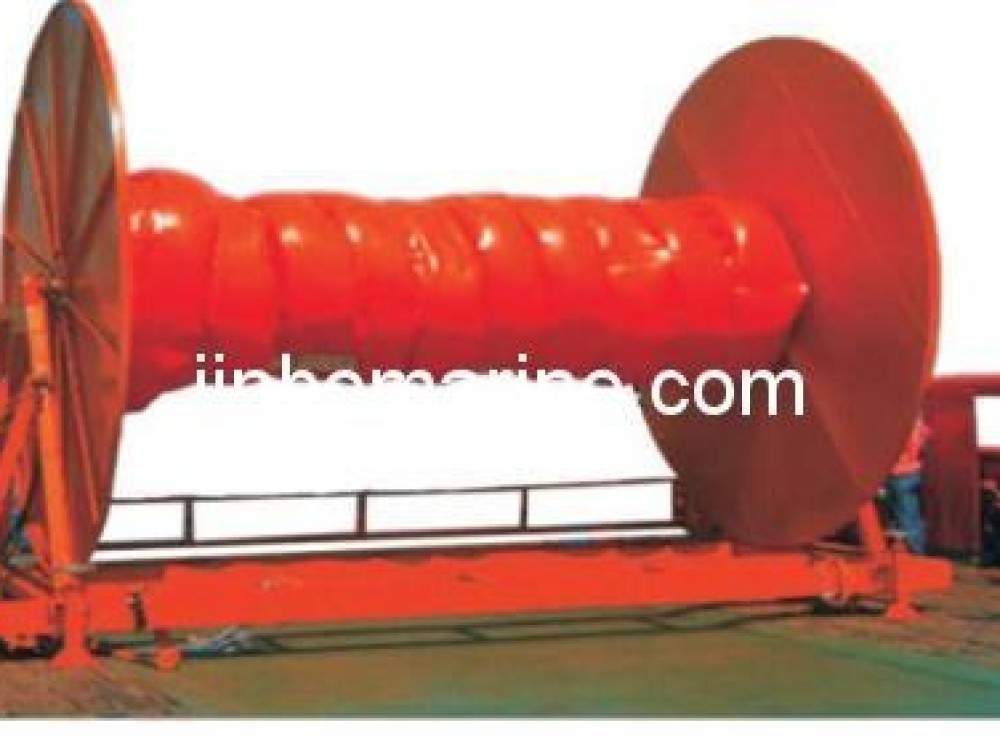

Rapid-deployed oil boom

Rapid-deployed oil boom is used for oil spill containment in the harbor or offshore area and other marine environment. It is stored on the boom reel ordinarily and van be deployed without inflation when in use which gives this new oil containment boom the fastest laying speed in marine environment.

Structure:

Its main body is heavy-duty flexible PU cloth or PVC with the upper independent floating body made from two layers of PU cloth or PVC, the skirt-shaped center part is made from PU cloth or PVC, the lower part is wrapped with bob weight chain. Sections are connected to each other with quick coupling and the bob weight chains are connected by shackles. In addition, each reel is equipped with two sets of tractor devices. The length of each oil boom can be made as required, if not, the default length is 50 meters each strip and 200 meter per reel.

Technical parameter

WK-1200

WK-1000

WK-900

WK-800

Max height(mm)

1200

1000

900

900

Standard sectional length(m)

200

200

200

200

Height over water(mm)

≥400

≥350

≥300

≥250

Draft(mm)

700

550

500

450

The minimum tensile strength(kn)

80

70

65

60

Weight of oil boom(kg/m)

≥8

≥6

≥5

≥4

Operated and storage temperature©

-30-60

-30-60

-30-60

-30-60

Laying speed(m/min)

≥40

≥40

≥40

≥40
