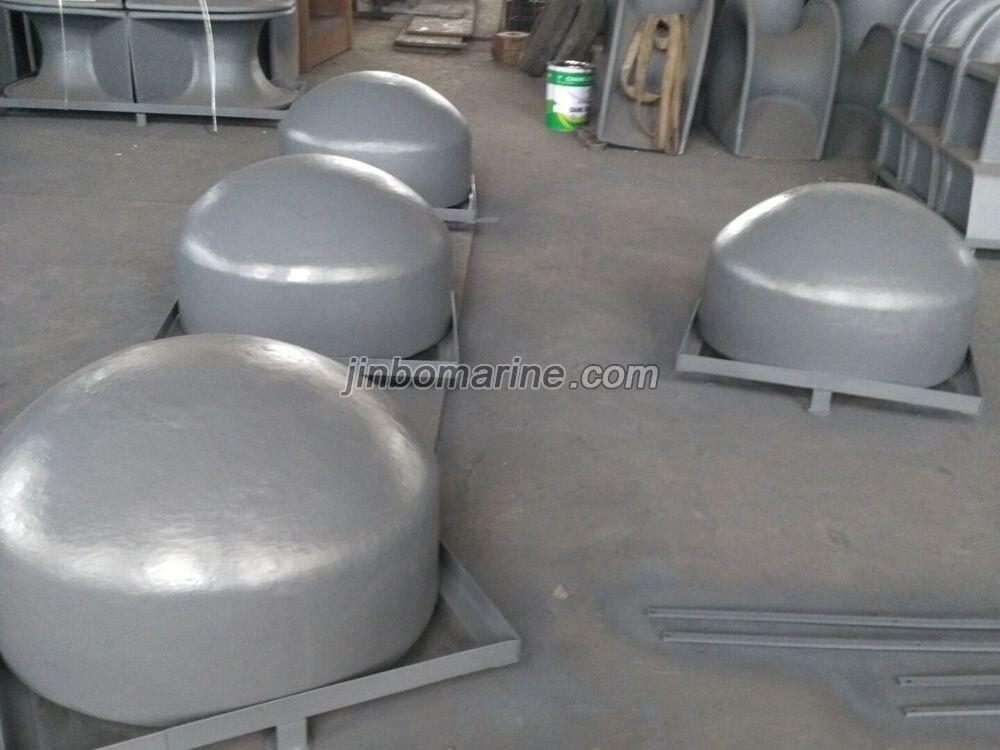

Recessed Bitts
- Category:Marine Bollard
- Material:Cast Steel.
- Standards:ISO13799
- Delivery Time:Need 30 days, we may have stock.
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Recessed Bitts:
Material:Cast Steel ZG230-450
Nominal Size:850mm, 920mm.
|
Nominal
Size Dn |
D1 | d1 | b1 | b2 | R1 | R2 | R3 | R4 | R5 | R6 | R7 | R8 |
| 850 | 850 | 750 | 200 | 280 | 450 | 500 | 250 | 65 | 115 | 50 | 55 | 250 |
| 920 | 920 | 812 | 216 | 300 | 490 | 544 | 270 | 70 | 124 | 55 | 60 | 270 |
|
Nominal
Size Dn |
R9 | R10 | t1 | f1 | f2 | f3 | f4 | f5 | h1 | h2 | h3 |
| 850 | 180 | 30 | 50 | 500 | 250 | 180 | 248.7 | 263.4 | 400 | 190 | 110 |
| 920 | 195 | 30 | 54 | 544 | 270 | 195 | 274.3 | 290.4 | 430 | 205 | 110 |
