Rectangular Ring
- Category:Marine Bollard
- Delivery Time:10 to 15 days.
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Rectangular Ring:

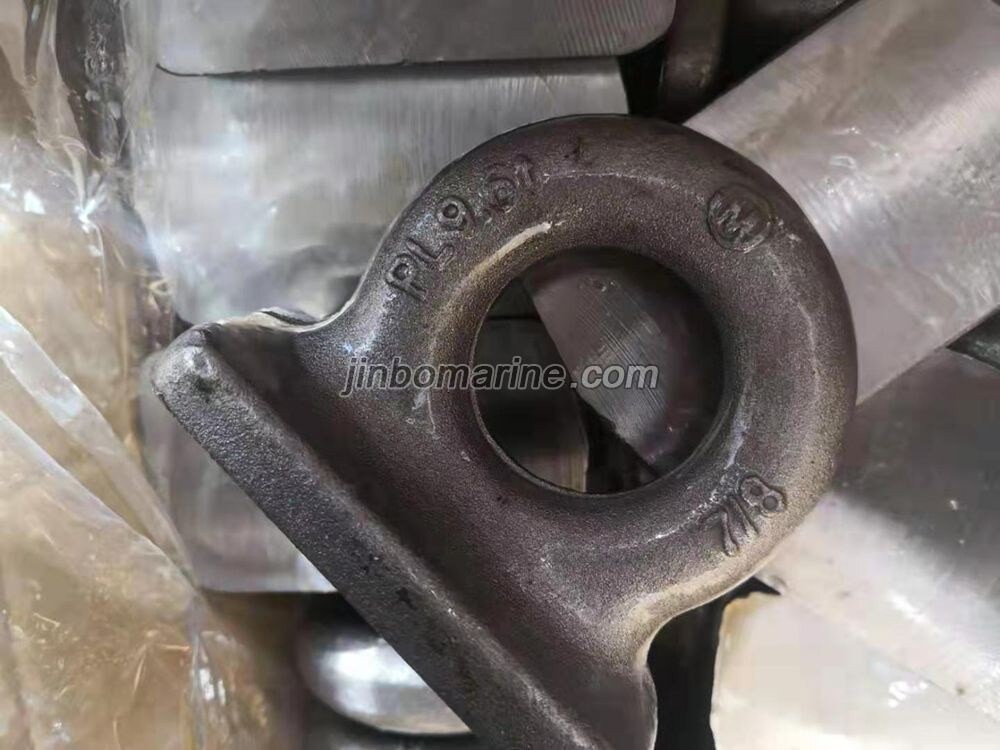

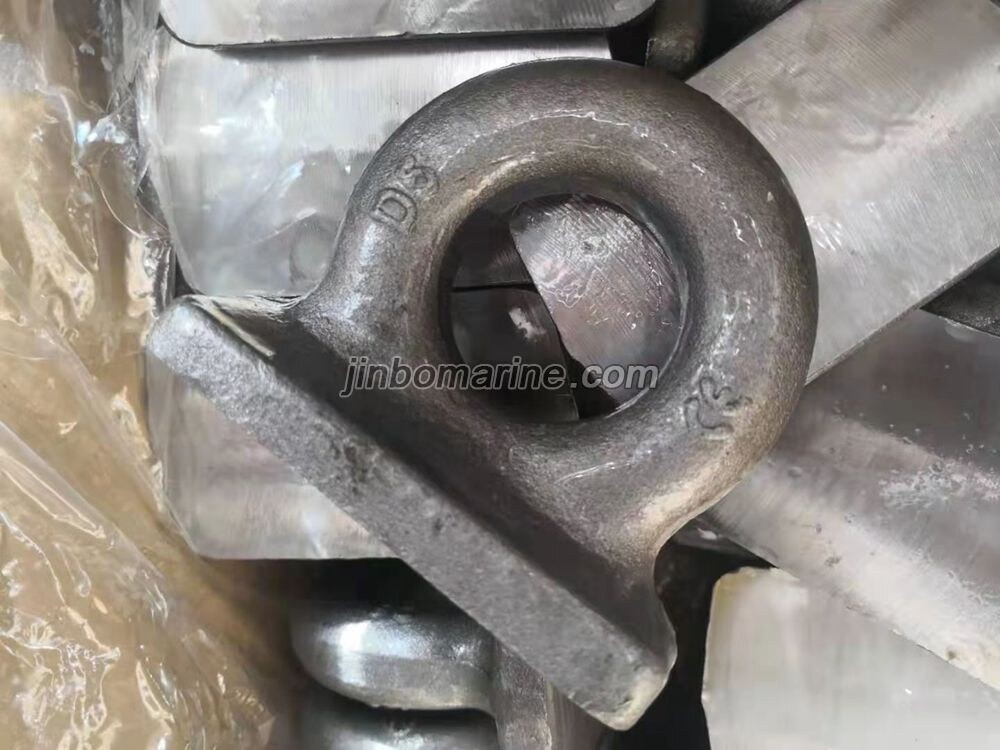

Rectangular Ring,also called as eye plate.

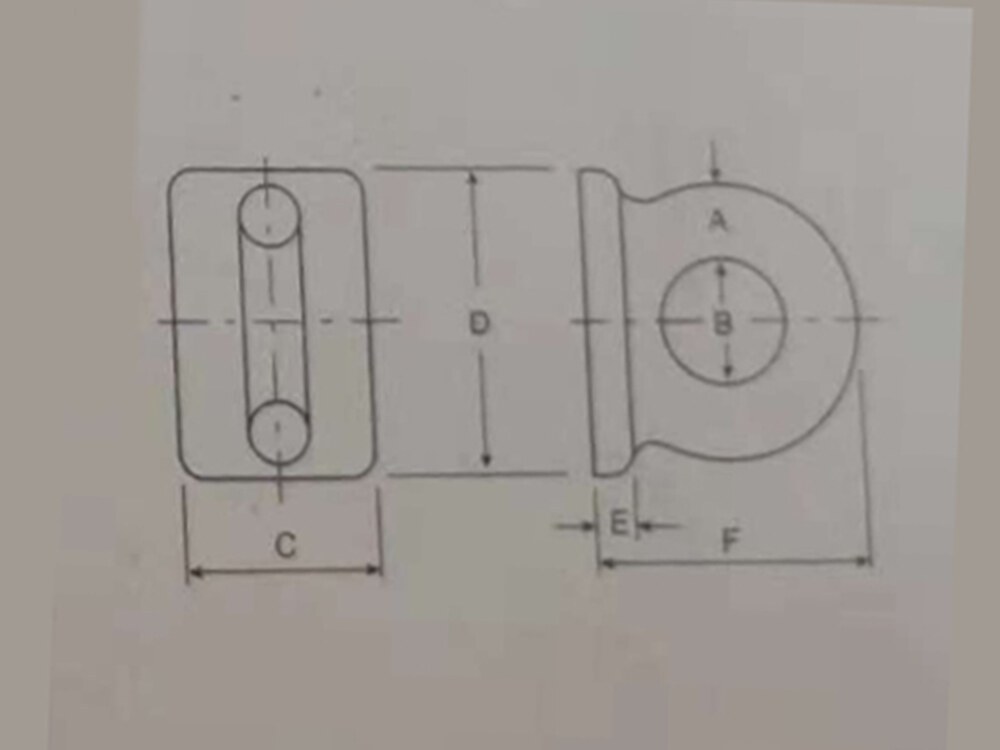

| Proof Load(Ton) | AP No. | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | Weight(kg) |
| 2 | 4014 | 10 | 20 | 25 | 45 | 6 | 38 | 0.14 |
| 3.5 | 4015 | 12 | 25 | 35 | 60 | 8 | 50 | 0.33 |
| 5.5 | 4016 | 16 | 32 | 45 | 70 | 10 | 64 | 0.53 |
| 7.5 | 4017 | 19 | 38 | 50 | 85 | 12 | 76 | 0.77 |
| 9 | 4018 | 22 | 42 | 60 | 102 | 13 | 89 | 1.27 |
| 13 | 4019 | 25 | 50 | 70 | 115 | 16 | 100 | 2 |
| 15.75 | 4020 | 28 | 57 | 76 | 130 | 18 | 114 | 2.8 |
| 20 | 4021 | 32 | 64 | 85 | 145 | 19 | 128 | 3.44 |
| 29 | 4023 | 38 | 76 | 100 | 170 | 22 | 152 | 6.58 |
