Relay Box GCBJDZ-01-SGK-7A

Request a Quote Not what you need, please send your RFQs via Email.

Details

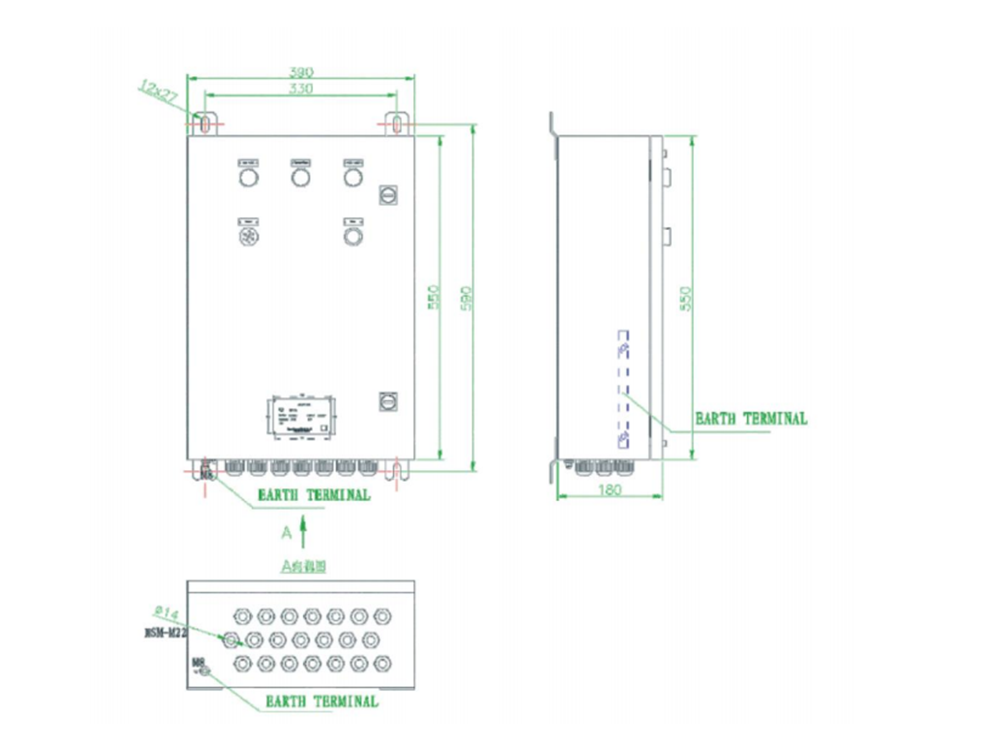

Relay Box GCBJDZ-01-SGK-7A

Function

Used to connect relay boxes and alarm indicators.

Technical Parameters

Color: MUSELL 7.5BG 7/2Protection level: lp22Weight: 10.0Kg

The detection signals are: general alarm, engine telegraphsignal, telephone call, machine fault, CO,alarm, fire alarm,Personnel alarm, water mist alarm, etc., wall-mounting type..

Technical Parameters

The power supply is AC220V for the main power supply and AC220V for the emergency power supply.The sound and lightalarm board is output through the relay box.lt is normally powered by the normal AC 220v.When the main power supply isde-energized, it is automatically switched to the emergency AC220V operation, and the power failure alarm is normallyclosed.one set of contacts (disconnected during power failure alarm), contact capacity:30V5A; 220V 1A.

Input signal detection method: passive normally open contact, alarm when closed

Communication method: serial communication

Color : MUSELL7.5BG7/2 Protection level : lP44 weight: 20Kg
