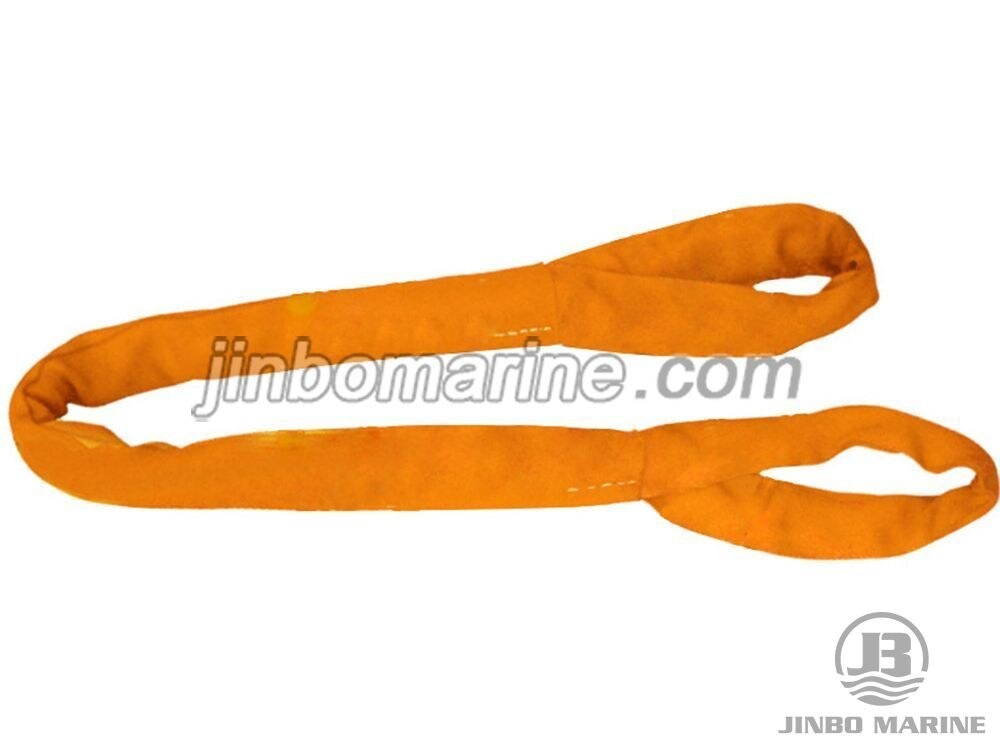

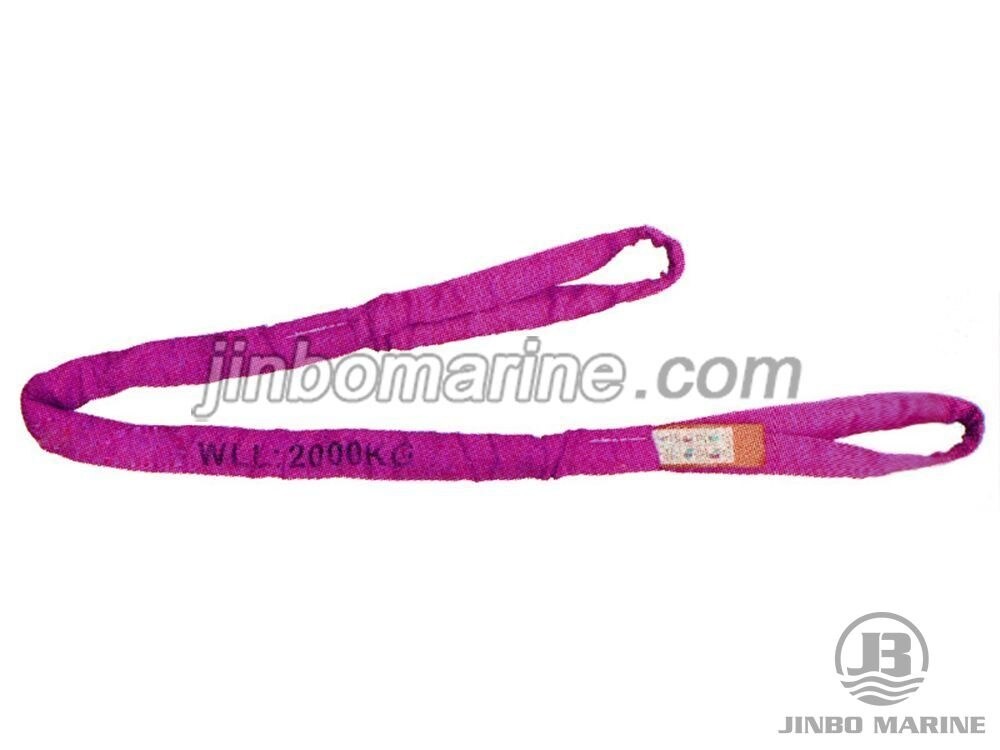

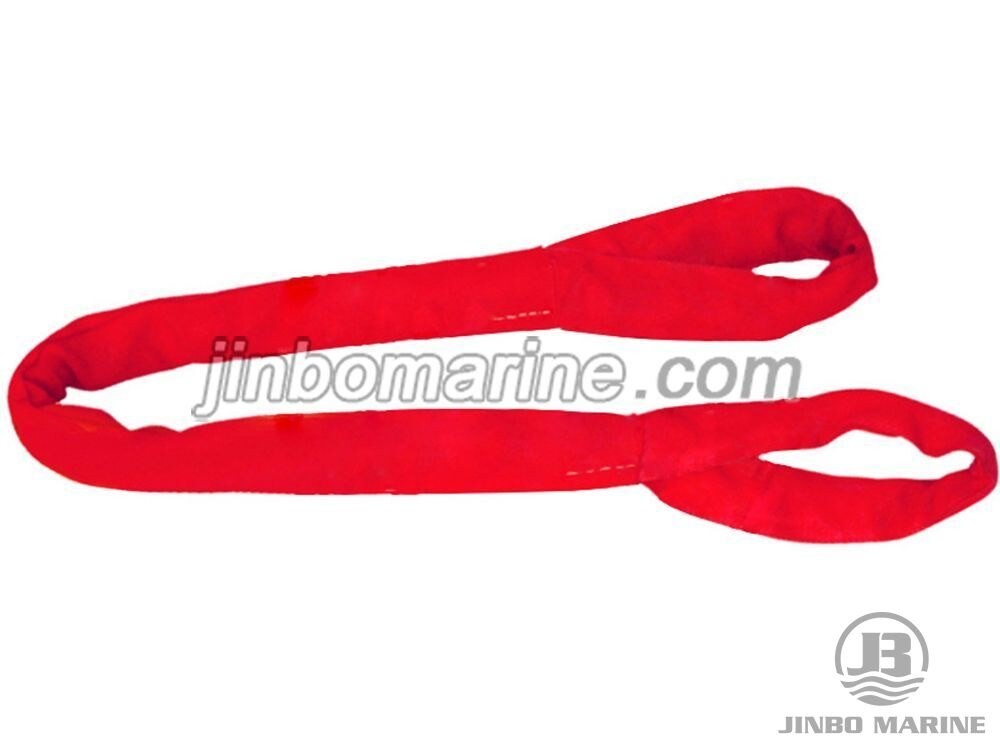

RH02 High Tensile Eye Type Sling
- Category:Chain Sling
- Material:Cotton, nylon, synthetic fiber, polyester fiber
- Standards:JB/T8521.1-2007
- Certificate:CNAS, API, CCS, DNV.GL, KR, BV, CE, PCT.GOST, JIS, GS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Description:
- It is made of Ultra High Molecular Weight Polyethylene fiber, the tensile of which is 3-4 times of polyester fiber. It is High modulus and low elongation type fiber and the proportion is 0.97g/cm³(lighter than water).
- The performance of the fiber such as UV-resistant, shock - resistant, acid - resistant, corrosion - resistant, wear – resistant, etc. are all much better than other synthetic fibers.
- Advantages: Small size, light weight, soft, safe, low elongation rate, UV-resistant, wear – resistant, shock - resistant, corrosion – resistant, non-conductive, anti-static, long service life.
- Low-temperature performance is good, operating temperature range: -125℃~80℃, the weight is 1/4 of common round sling and the diameter is 1/2 of common round sling.
Technical data:
Art.No. | Working Load Limit(kg) | Approx Thickness(mm) | Approx Width(mm) | Minimum length L(m) |
RRH02-01 | 1000 | 12 | 24 | 1.5 |
RH02-02 | 2000 | 18 | 26 | 1.5 |
RH02-03 | 3000 | 22 | 35 | 1.5 |
RH02-04 | 4000 | 25 | 45 | 1.5 |
RH02-05 | 5000 | 30 | 50 | 1.5 |
RH02-06 | 6000 | 32 | 55 | 2 |
RH02-08 | 8000 | 35 | 65 | 2 |
RH02-10 | 10000 | 38 | 70 | 3 |
RH02-12 | 12000 | 40 | 75 | 3 |
RH02-15 | 15000 | 45 | 80 | 4 |
RH02-20 | 20000 | 45 | 95 | 4 |
RH02-25 | 25000 | 48 | 110 | 4 |
RH02-30 | 30000 | 60 | 125 | 6 |
RH02-40 | 40000 | 65 | 130 | 6 |
RH02-50 | 50000 | 70 | 140 | 8 |
RH02-60 | 60000 | 72 | 150 | 8 |
RH02-80 | 80000 | 75 | 155 | 10 |
RH02-100 | 100000 | 80 | 160 | 15 |
