RQY Type Hermetic Sampler
- Category:Sensor
- Certificate:CCS,GL,LR,BV,ABS,DNV GL,RINA,NK,KR ETC.
- Packing Details:Carton packaging.
- Delivery Time:about 7 to 10 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Product Description:

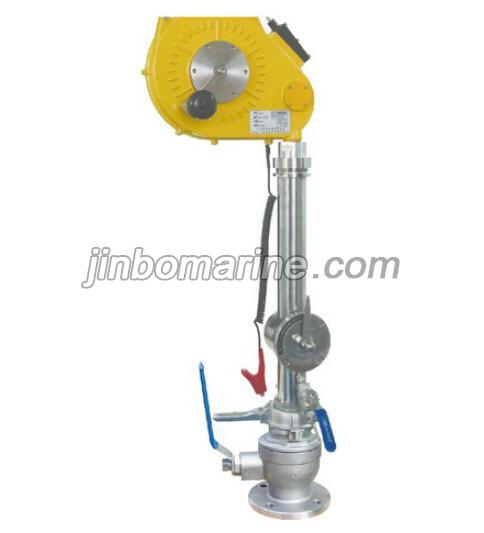

RQY Type hermetic sampler consists of lifting device,protection chamber of main body,sample discharging valve,sample barrel etc. The product is designed for sampling liquid under airtight conditions. It features high accuracy,convenient operation,safety and reliability etc. It is suitable to take the liquid sample of different levels liquid from cabins,tanks,and various vessels.
Main Technical Specification:
Type: 2" quick connector
Tape size:Length 15m or 30m
Tape resolution: 1mm
Density scope of sample medium:0.6~3.5g/cm3
Medium temperature range:-25 centigrade to 110 centigrade
Working pressure:0.3 bar
Sampling volume:0.15, 0L.45 L
Matched valve:2" deck valve

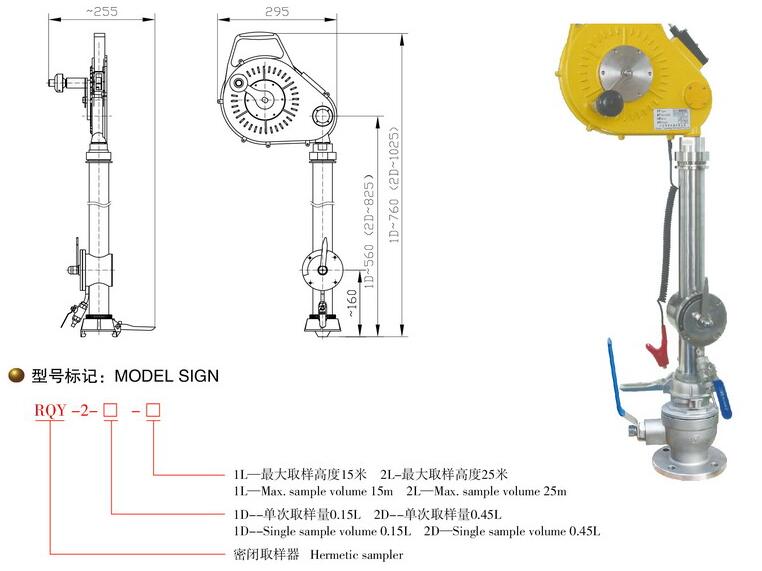

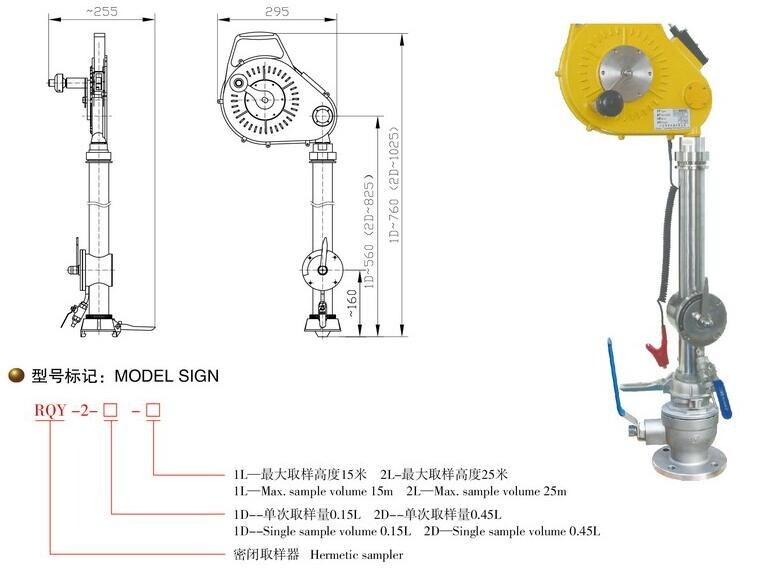

Overall Dimension:
