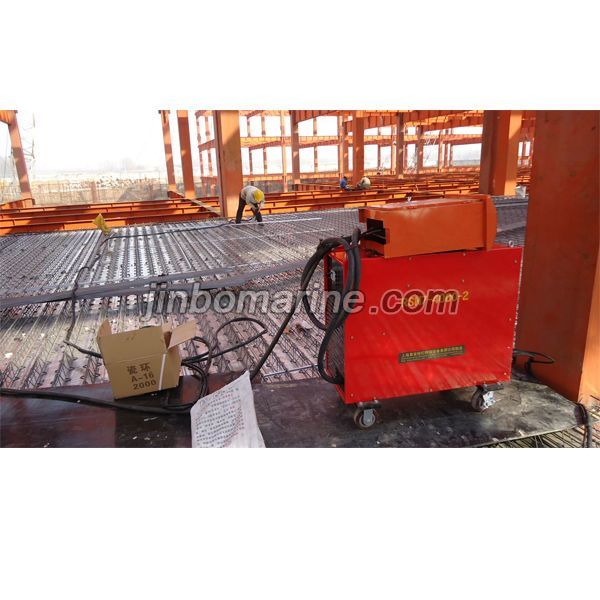

RSN7-4000-2 Dual Torch Electric Welding Machine

Request a Quote Not what you need, please send your RFQs via Email.

Details

Feature:

1.IGBT Inverter technology.

2.Less weight, power efficient, safe and reliable.

3.Easy control and digital display of welding voltage, current and time.

4.Special torch with extending cables, large lfiting force, low heat and durable.

5.Inner circuit board is under waterproof, anticorrosion, dampproof and dustproof treatment.

6.Compensatory capabilities of power voltage. When the voltage decreases, this machine can automatically stabilize welding parameters, when the voltage is extremely low, the machine still can work normally(only the max welding current is a little lower), the welding strength is much higher than ordinary welding machine. This feature applies to: electricity shortage and multiple equipments operating simutaneously in construction sites such as projects powered by generators, shipbuilding, steel construction etc.

Technical Parameters:

Item RSN7-2500-2
RSN7-3150-2
RSN7-4000-2
operation situation one gun dual guns one gun dual guns one gun dual guns
welding range Φ6-Φ28 Φ4-Φ18 Φ6-Φ36 Φ4-Φ20 Φ6-Φ46 Φ4-Φ24
welding current 400A-2500A 300A-1250A 400A-3150A 300A-1550A 600A-4000A 400A-2000A
welding speed

Φ28

8pcs/minute

Φ18 8pcs/minute

Φ36

8pcs/minute

Φ20 8pcs/minute

Φ46 8pcs/minute

Φ24

8pcs/minute

welding time 0.1S-3S 0.1S-3S 0.1S-3S
input power AC 3˜300V-440V AC 3˜300V-440V AC 3˜300-440
rated input power 90KW 120KW 150KW
power switch 160A 225A 250A
protect grade Ip23 Ip23 Ip23
cooling way F F F
dimension(L/W/H) 960x418x760mm
990x418x800mm
990x418x800mm
weight 168KG

180KG

188KG
